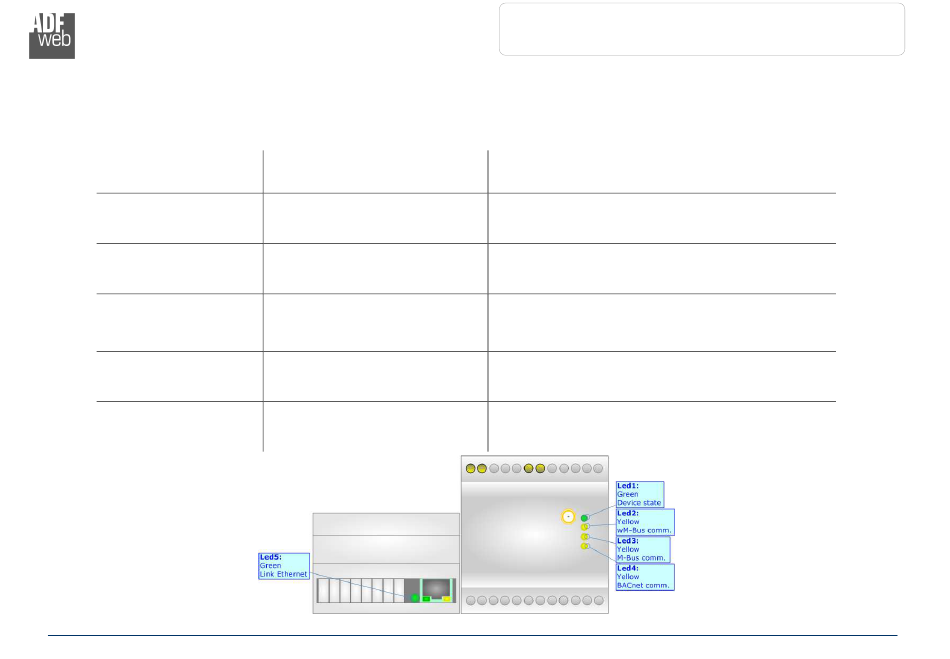

LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device state (green)
2: wM-Bus comm.
(green)
3: M-Bus comm. (green)
(only for HD67086-xxx-
B2-xxxMHz-xxx)
4: BACnet comm.
5: Link Ethernet (green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
Blinks quickly when data on
wM-Bus arrives
Blinks quickly when a reply to a M-
Bus request arrives
Blinks quickly when BACnet
communication is running
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual M-Bus / M-Bus Wireless / BACnet Slave
Document code: MN67086_ENG
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
