Quick-Release Adjustable Windshield
Yamaha FZ-10
Please read this entire manual before proceeding with installation.

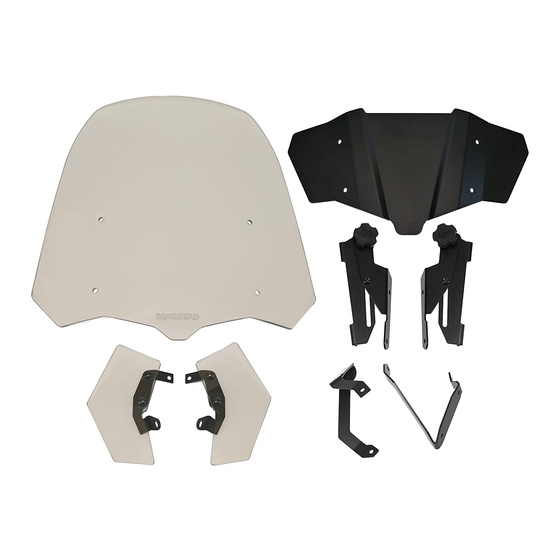

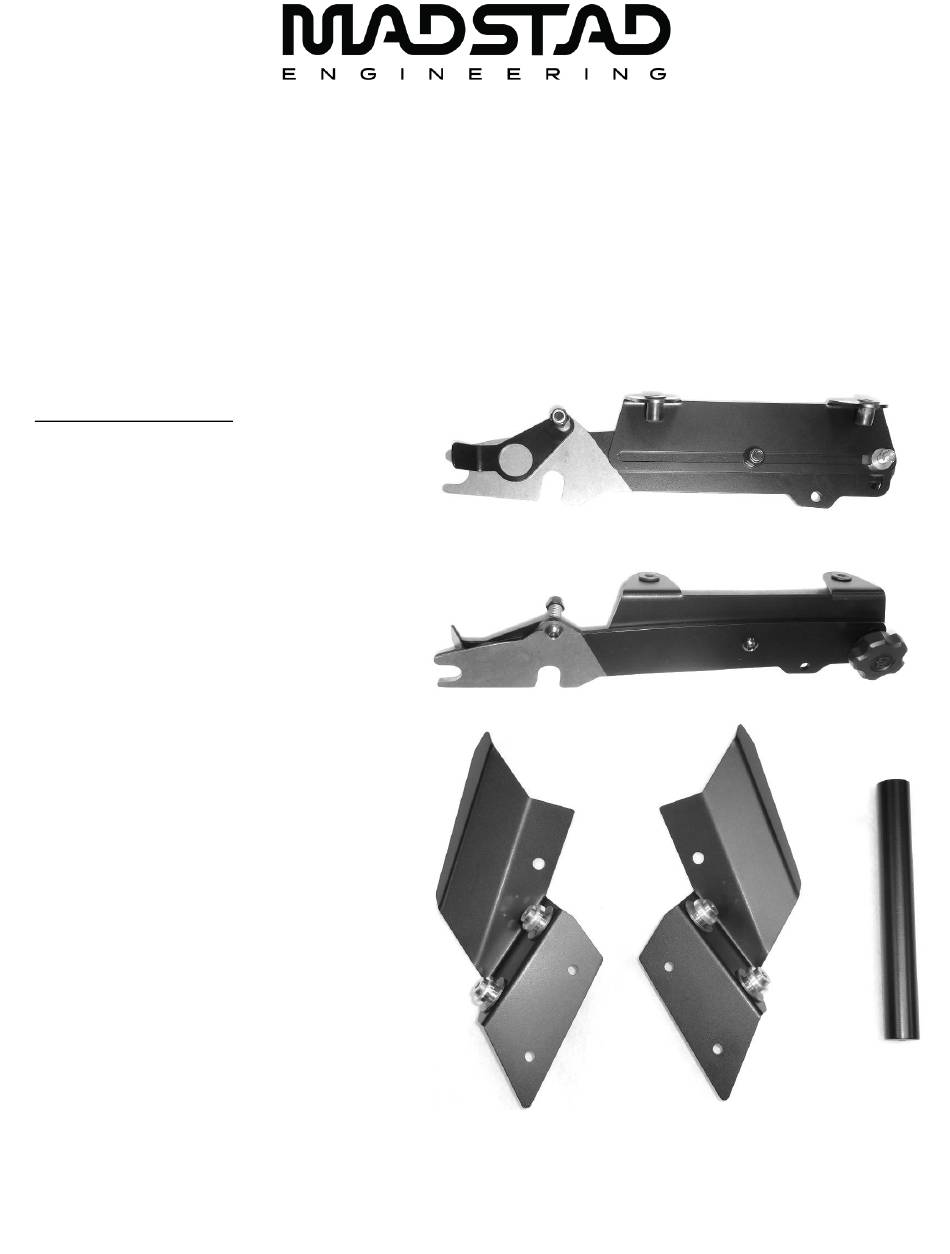

What is in the box:
(1) MadStad FZ-10 brackets set
(1) Crossbar (173 mm long)
(2) M6 x 12 button socket screws
(2) M6 metal flat washers
(2) Mounting plate assemblies
(2) M6 rubber well nuts
(2) M6 x 16 button socket screws
(2) 1/4" plastic flat washers
(4) M5 Truss screws
(4) M5 plastic flat washers
(4) soft rubber washers
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering Quick-Release Adjustable Windshield
Summary of Contents for MadStad Engineering Quick-Release Adjustable Windshield
- Page 1 Quick-Release Adjustable Windshield Yamaha FZ-10 Please read this entire manual before proceeding with installation. What is in the box: (1) MadStad FZ-10 brackets set (1) Crossbar (173 mm long) (2) M6 x 12 button socket screws (2) M6 metal flat washers...
- Page 2 STEP 1: Remove front factory plastic panels Remove the four screws in front holding on two Yamaha fairing panels as shown at right. You will not need either of these panels, but save the screws because they will be used to install the MadStad mounting plates.
- Page 3 STEP 3: Attach the MadStad mounting plates Using the four front factory screws you removed in Step 1, attach the MadStad mounting plates to the front of the bike as shown at right. STEP 4: Attach side screws On each side where you inserted a rubber well nut, you can now fasten down the mounting plates with the M6 x 16 button socket screw and plastic...
- Page 4 STEP 5: Attach the MadStad brackets. Each MadStad bracket slides onto the silver spools sticking out sideways from the MadStad mounting plates. These photos show the right side of the bike, with the front of the bike to the right. The sequence is as follows: 1.
- Page 5 STEP 6: Crossbar Installation The crossbar gets installed between the two brackets at the slightly extended holes up by the adjustment knobs. There is a pin on one side of the crossbar that must be placed outside of the brackets to keep it from rotating.
- Page 6 Adjusting the MadStad Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
-
Page 7: Returns And Warranty
Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. Use of our products at excessive speeds is not recommended. - Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 U.S.A. Phone: 352-848-3646 Fax: 352-240-3911 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! January 16, 2019...
