M2 ASSEMBLY GUIDE
M2 ASSEMBLY PART 1: SLED ASSEMBLY (BAG C, BAG F, BAG G)

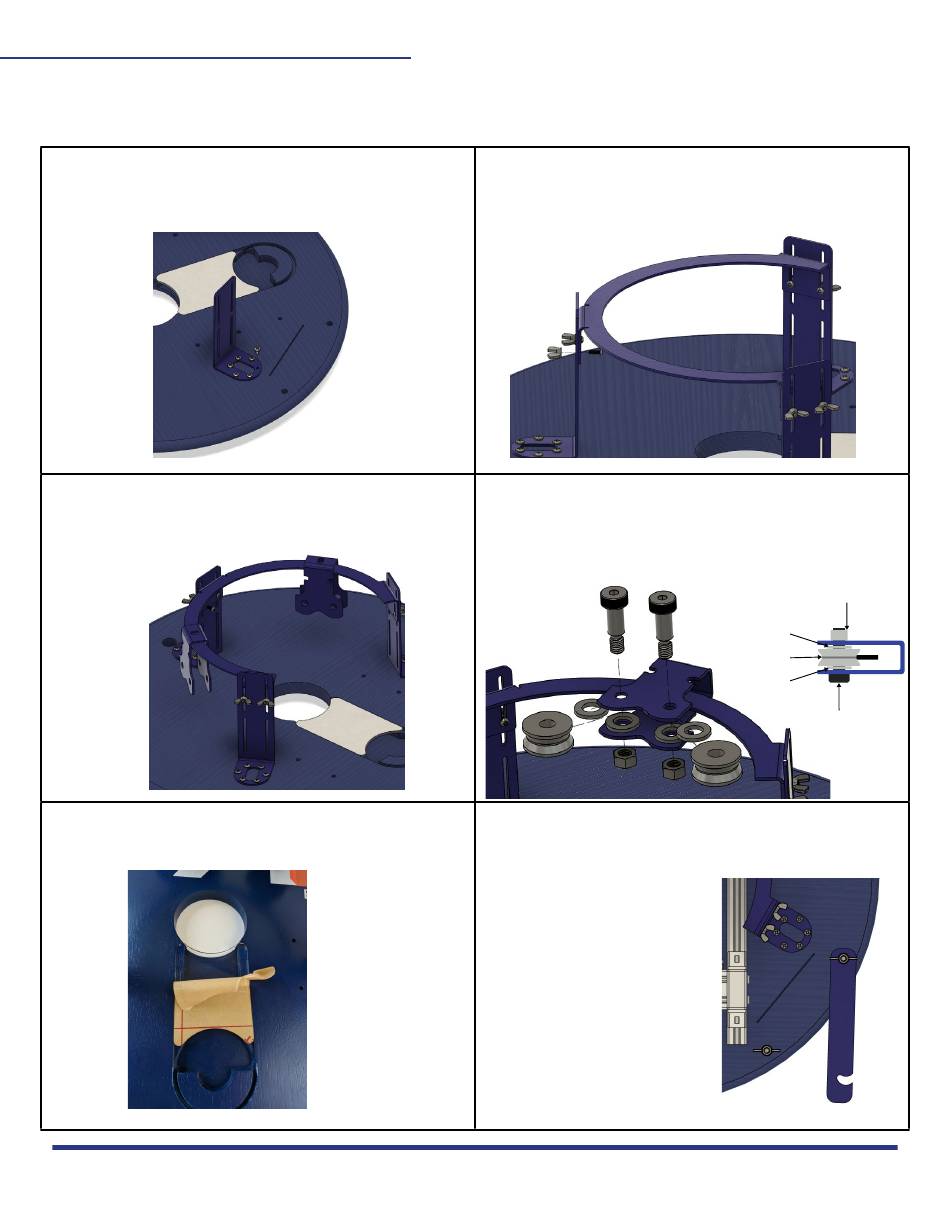

1. Attach three L-brackets to Sled by aligning with six small
predrilled holes, tall side toward center, using Phillips
screwdriver and G1 screws.
3. Hang both bearing carrige mounts by placing on each side of
attached ring.
5. Peal off protective paper from acrylic dust cover.
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
2. Attach three L-brackets to rectangular brackets on ring. Insert
G2 bolts from inside of ring bracket out through L-brackets, two
per bracket and secure with G3 wingnuts.
4. Assemble both roller bearing carriages by feeding F1 bolt
through carriage, then F2 washer, then bearing, then F2 washer,
out through the other end of the carriage, and attach with F3 nut.
TOP VIEW
Use F4 Allen wrench on one end and 13mm combo wrench on the
other to tighten.
6. Attach both C1 brick mounts by inserting C2 bolt from bottom,
with C3 washer and C4 wingnuts. Repeat on other side with C5
nut using 10mm combo wrench.
Drew's Note: You can install
the bricks in this step, but
another, easier option is to
attach the bricks to the sled
after you have hung the M2
from the chains in the center of
your wasteboard.
8
SIDE VIEW
Nut
Washer
Ring
bearing
Washer
Shoulder
bolt
