M2 ASSEMBLY GUIDE

12. CONFIGURATION

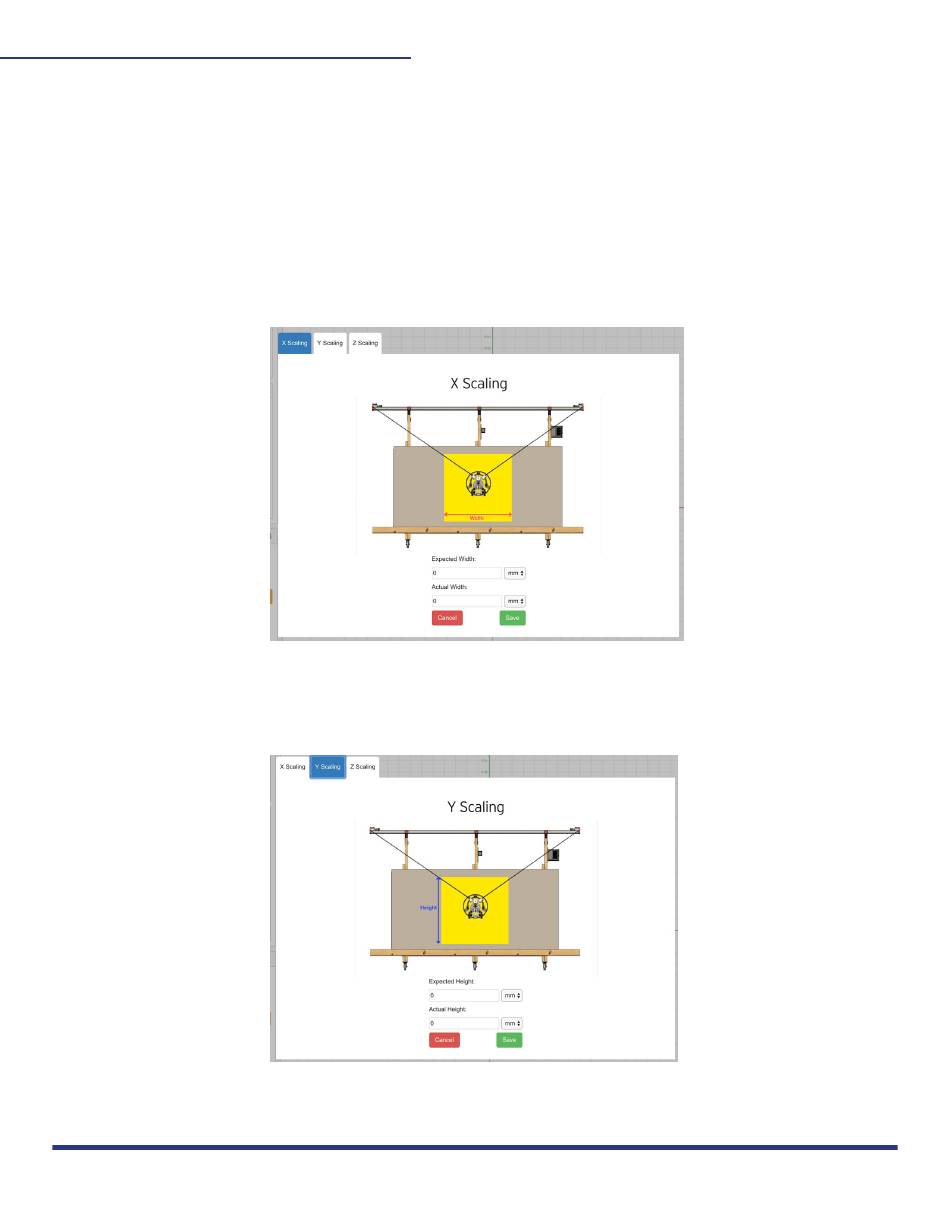

Before your first cut, you need to verfiy your X and Y scaling. After you set your M2 Home
position, jog the Z-axis up 10mm, so it doesn't drag.
STEP A:
Draw an "x" with the marker where the router bit was touching. Then, jog your M2 300mm
to the left or right and draw another "x." Jog your M2 300mm down to move it out of the way
and for the next measurement. Measure the exact distance and enter actual X value in the "X
Scaling". The expected width is 300mm.
STEP B:
Now, draw an "x" under the bit in the new position. Measure the distance between the top
and bottom "x" and enter the actual and expected (300mm) Y values in the Y Scaling.
Before your first cut, repeat steps A and B a few times until your actual and expected XY
distance moved is the same.
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
38
Last Updated 11.09.2020
Version 1.14
