MAKER MADE M2 Complete Beginner Assembly Manual page 6

M2 ASSEMBLY GUIDE
Bag B
Bag F

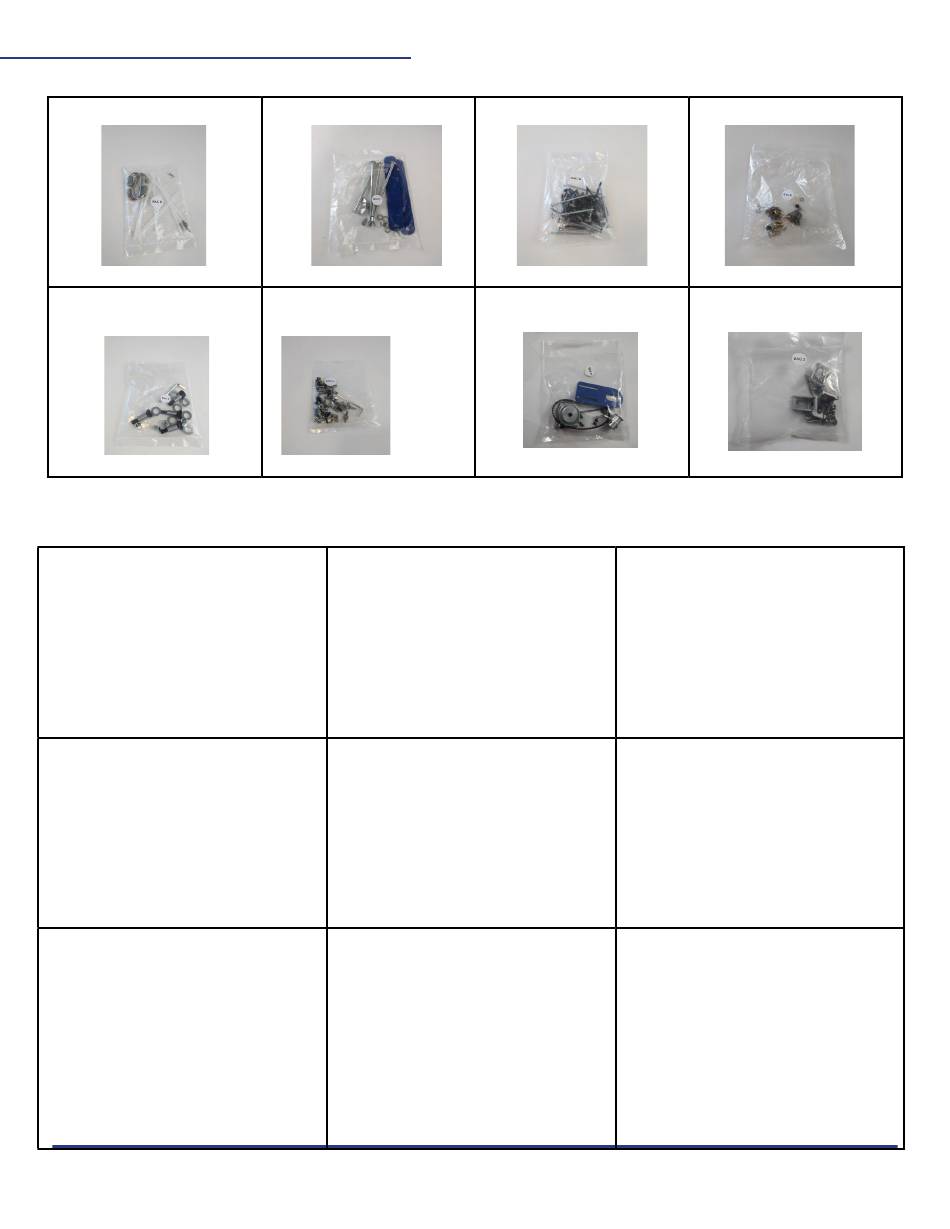

Drew's Note: Listed here are the contents of the bags. In the assembly portion, they will be refered to by their letter and number!
Bag A
A1. Cotter pins (2)
A2. Chain sprocket (2)
A3. Small nails (2)
A4. Large nails (2)
A5. White spacers (2)
Bag D
D1. Shorter black wood screws
D2. Longer silver wood screws
Bag G
G1. Tiny wood screws (18)
G2. Small black M3 bolts (6)
G3. Wingnuts (6)
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
Bag C
Bag G
Bag B
B1. Quick links (2)
B2. Small screws (4)
B3. Zip ties
Bag E
E1. Motor gear (2)
E2. Grub Screws (2)
E3. Motor screws (8)
E4. Motor washers (8)
E5. 3mm Allen wrench
Bag H
H1. Z Motor bracket H2. Large Gear
H3. Grub screws (2) H4. Small Gear
H5. Small grub screws (2)
H6. M4 x16mm bolts (4)
H7. Black M3 x8mm bolts (6)
H8. Belt H9. 2.5mm Allen wrench
H10 2mm Allen wrench
Bag D
Bag H
Bag C
C1. Brick mounts (2)
C2. Large carriage bolts (4)
C3. Washers (4)
C4 Wingnuts (2)
C5. Locking nuts (2)
Bag F
F1. Shoulder bolt (4)
F2. Large washer (8)
F3. Large locking nut (4)
F4. 5mm Allen wrench
Bag Z
Z1. L-bracket (4)
Z2. M5 x20mm (2)
Z3. M5 x10mm (8)
Z4. M5 T-nuts (8)
Z5. 3mm Allen wrench
Z6. (Alt) 6 screws
6
Bag E
Bag Z
Last Updated 11.09.2020
Version 1.14
