M2 ASSEMBLY GUIDE
10. MACHINE SETTINGS - MEASURE DISTANCE BETWEEN MOTORS AND MOTOR OFFSET:
Before the M2 will work properly, the distance between your motors and the distance from
your Wasteboard must be entered into CNCjs.

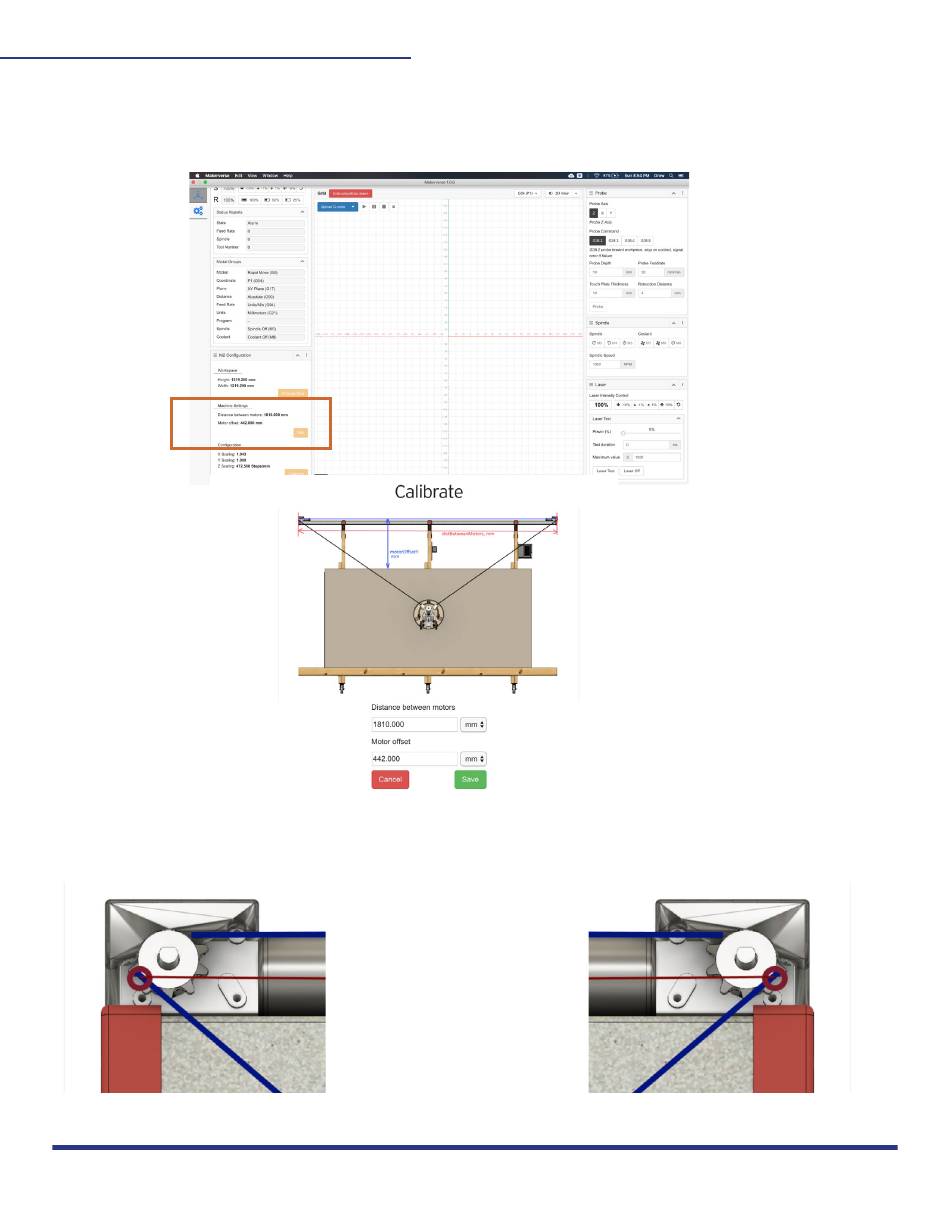

Measure from the 8 o'clock position on your left motor and the 4 o'clock position on your
right motor. From the red, circled portions in this image.
