M2 ASSEMBLY GUIDE
2. Plug in wires, USB, and power. Use B3 zip ties for cord maintenance.
Drew's Note: A high-pitched whine is normal! That means your DUE board is receiving power. It will get louder when connected to
a computer. The following steps will explain where the other ends of the cords go.
Power
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
Power
Correct
MicroUSB
port
1.
1. Left Motor

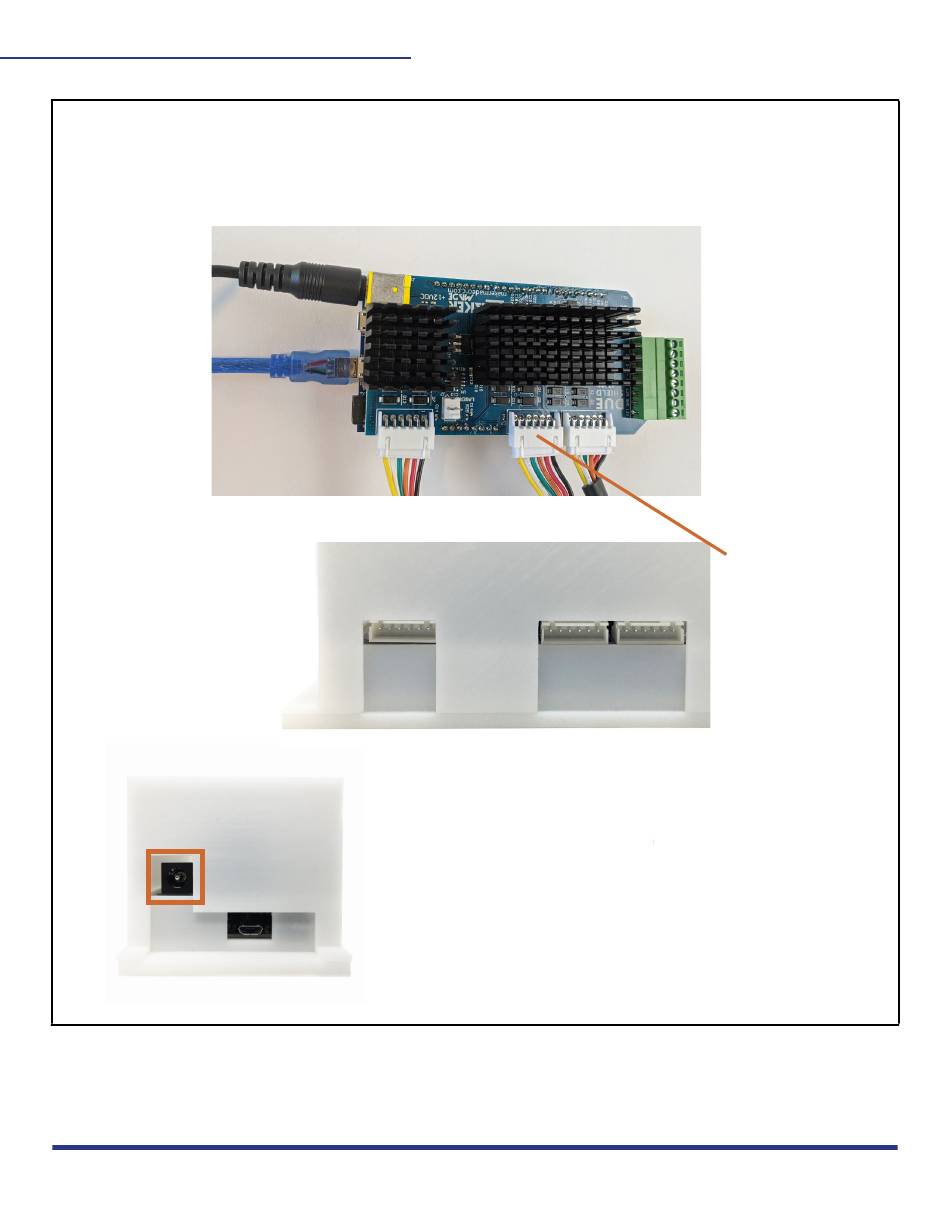

Drew's Note: If your case looks like this, it needs to be modified. Note
the small power port. You will have to plug in the power with the top of
the case off, or cut the hole larger. We appologize for this mistake in
the first run of the M2 and it will be fixed in later versions.
2. 3.
2. Z-Motor
(longest cord,
will connect to M2)
15
Future J Tech
Laser Connection
Example of connection
not fully seated!
3. Right Motor
