BUILDING YOUR FRAME PART 1: MOUNT ARDUINO DUE BOARD AND SHIELD
Drew's Note: The M2's brain is an Arduino DUE microcontroller. We recommend mounting the DUE to the wall behind your
Wasteboard, but it can be mounted in any safe location where it won't be stepped on or conflict with the M2 during operation.

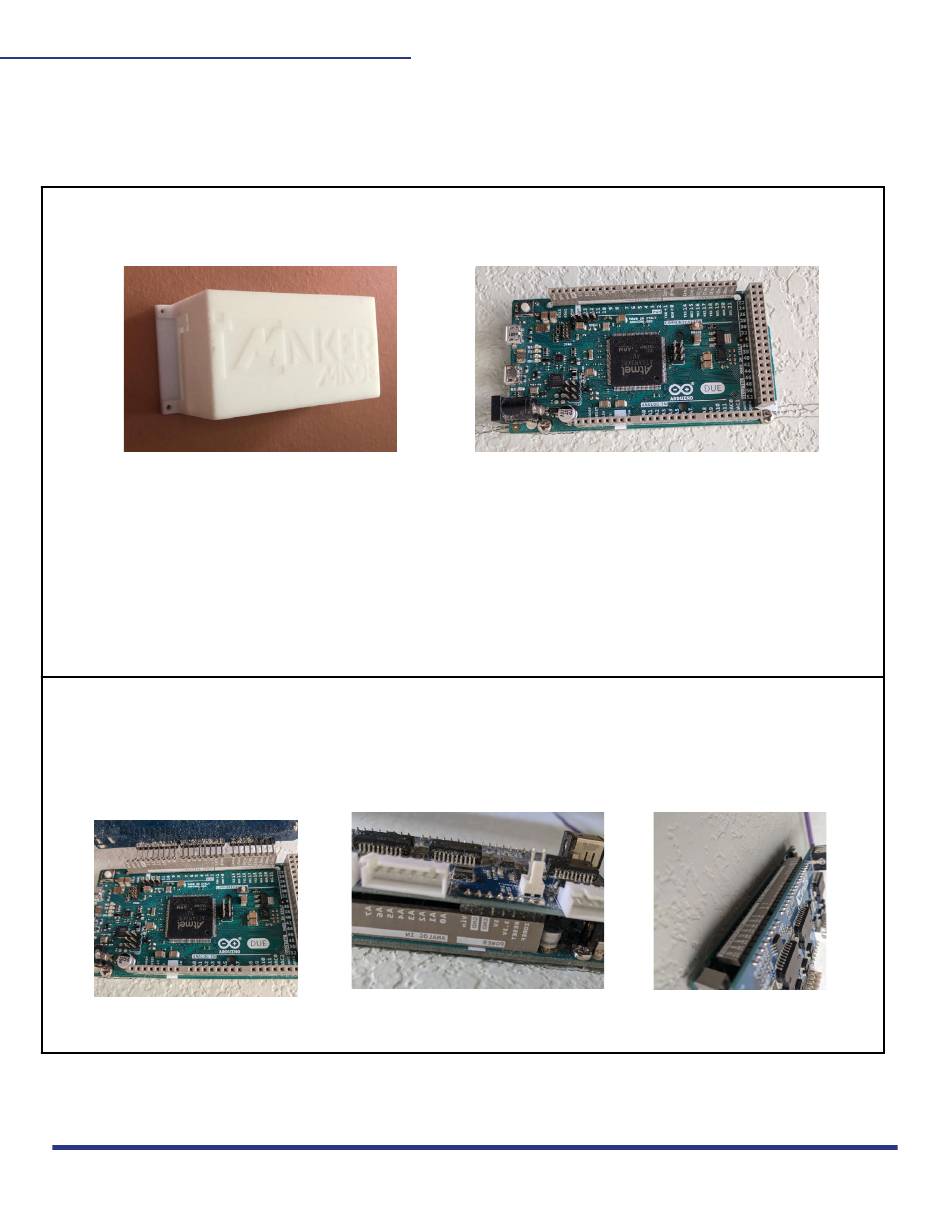

1. Using included B2 screws, mount controlbBoard in its case to the wall behind Wasteboard, helps to mount in middle for motor
wires to reach.
With case, wire plugs on bottom.
Drew's Note: If you're mounting without case or need to modify for any reason, this is how to attach the top Control Shield to
bottom DUE board. Line up the pins as shown and be careful they don't bend
Pin Alignment
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
Bottom DUE board, without case (notice how the "DUE"
written on the board is up). That is the orientation for this
instruction, the bottom power is unused.
Bottom View
14
Top View
