M2 ASSEMBLY PART 3: FINISH M2 Z-AXIS ASSEMBLY (BAG Z)
Drew's Note: Updating products is especially during these times.
We currently have two active M2 versions that you may have
recieved. This page is for the first version, the next is version B.
Check out Step 1 to see which version you have and you'll be good
from there. We appreciate your patience.

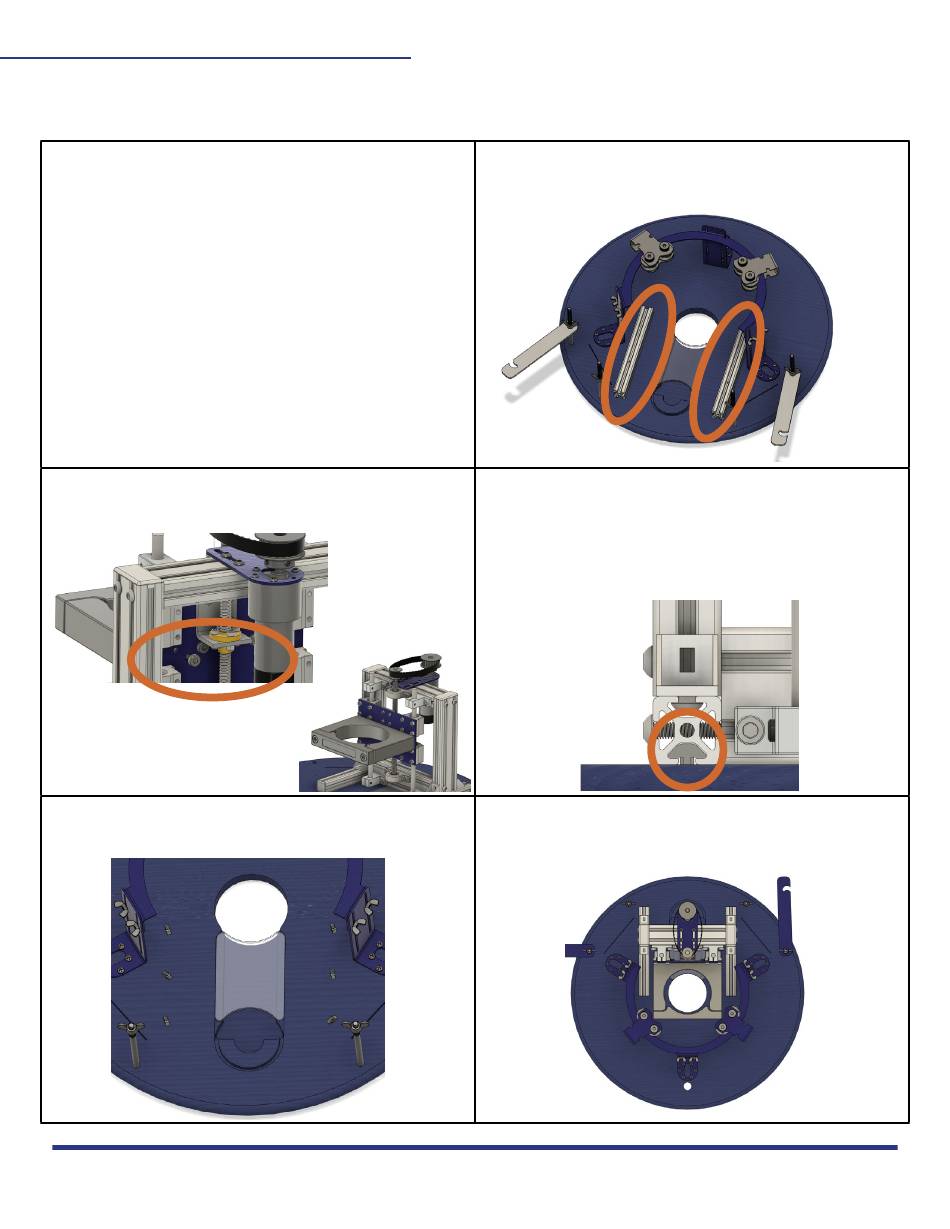

2A. Attach router clamp to Z-Axis Assembly using bolts screwed
into clamp. Attach as shown with Z5 Allen wrench.
3A. Mount Z-Axis assembly to sled by inserting six Z6 screws in
Bag Z through bottom. Loosely attach using Z4 T-nuts.
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license.
1. If your sled has rails attached, as seen below, skip to the next
page. If not, go to step 2A.
Drew's Note: The Z-Axis Assembly attaches to the sled with
T-nuts. They are marvels of engineering that are specially
designed to turn sideways when being tightened. This fastens
parts to aluminum extrusions at different angles. Sometimes, you
have to loosen and retighten them to get them to turn.
4A. Turn T-nuts parallel with dust cover acrylic. Slide Z-Axis
assembly over t-nuts, and align router clamp with center hole.
Tighten T-nuts with Phillips screwdriver. Go to Part 4.
