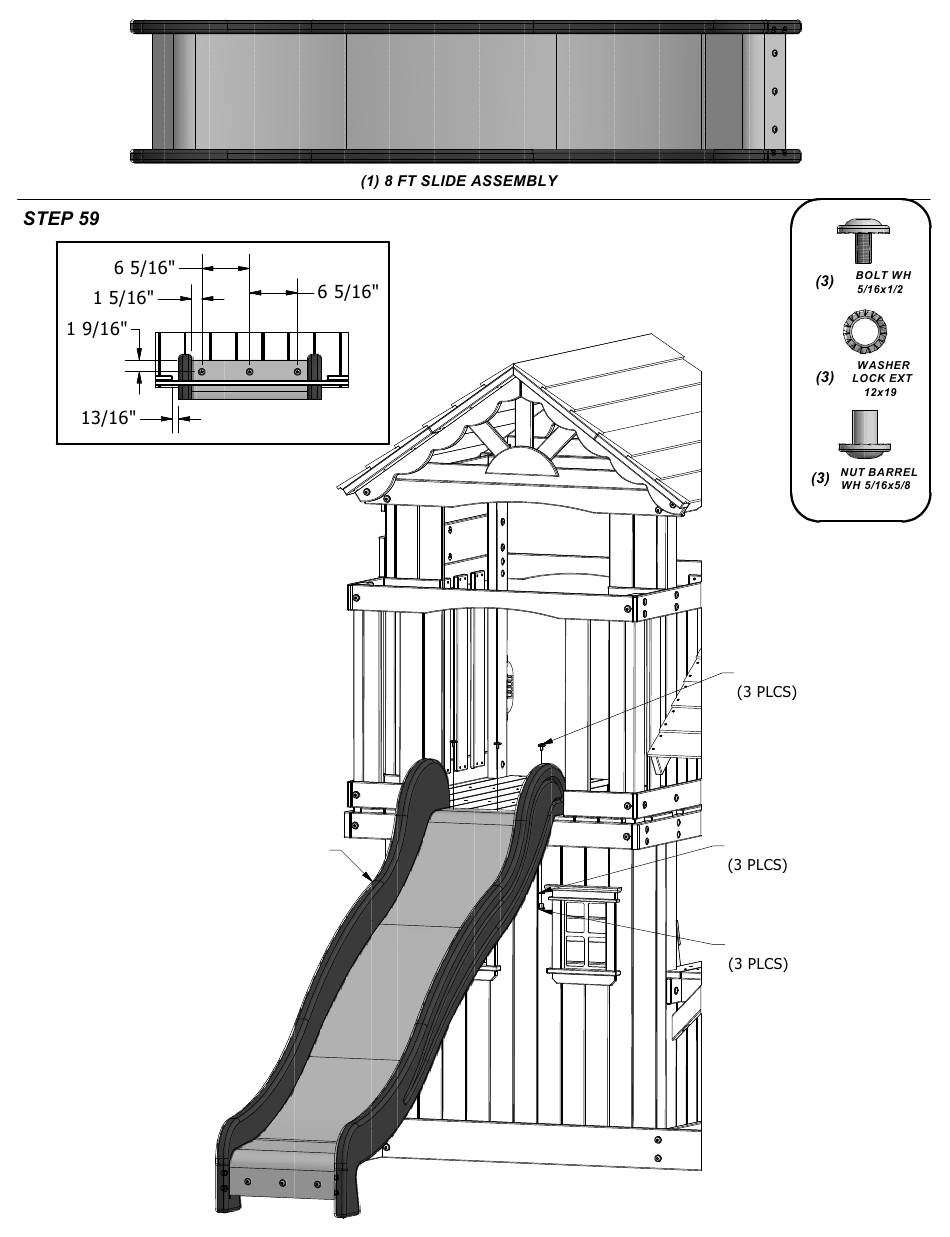

DRILLING PATTERN
NOTE:
USE THE DRILL PATTERN AND A 3/8"
DRILL BIT TO DRILL HOLES FOR
SLIDE INSTALLATION.
BOLT WH 5/16x1/2
WASHER LOCK EXT 12x19
8 FT SLIDE ASSEMBLY
NUT BARREL WH 5/16x5/8
93
