DEFINE NMEA 2000:

By pressing the "Define NMEA
Modbus Registers for Receive NMEA 2000 Frames" appears (Fig. 5):
In the field "List of Receive NMEA 2000
there is the list of NMEA 2000 frames that you
inserted in "Receive NMEA 2000" section
In the field "List of Modbus Registers Relative to
the PGN Selected" there are the Modbus words.
In the field "Create/Modify a Modbus
you can define the index of the Modbus register and
the bytes of the can frame that you map in.
For example:
Click on the frame, insert the valid address in the field "Index of
Modbus Register", select the byte position (Byte 1 in High
Modbus byte and Byte 3 in Low Modbus byte), click the "Create"
button, in the field "List of Modbus Registers" appears the new
Modbus register created with the data that it contains.
ADFweb.com Srl – IT31010 – Mareno – Treviso
2000" button near "Receive NMEA 2000" from the main window for SW67452 (Fig. 2) the window "Define
Frames"
Register"
User Manual NMEA 2000 / Modbus Slave - Converter
Document code: MN67452_ENG

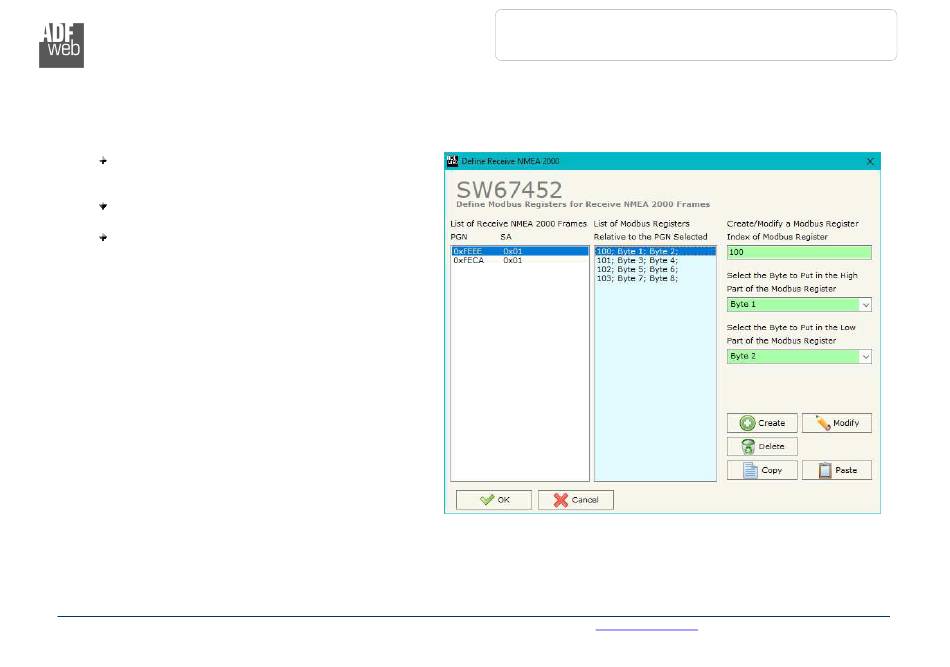

Figure 5: "Define Modbus Registers for Receive NMEA 2000 Frames" window
