Maxxus MX-J206-01 Instruction Manual page 9

Floor Heater
10. Slide the Bench Heater Panel down (vertically) into the slot provided on both the Left and Right Side panels. Connect
the Bench Heater Panel cord with the outlet on the Back Panel and then place the Bench on top of the Bench Heater
Panel and slide it into place. See FIG 9 & 10 Note: Make sure the cords are connected snug and tight, otherwise
the heater will not work.

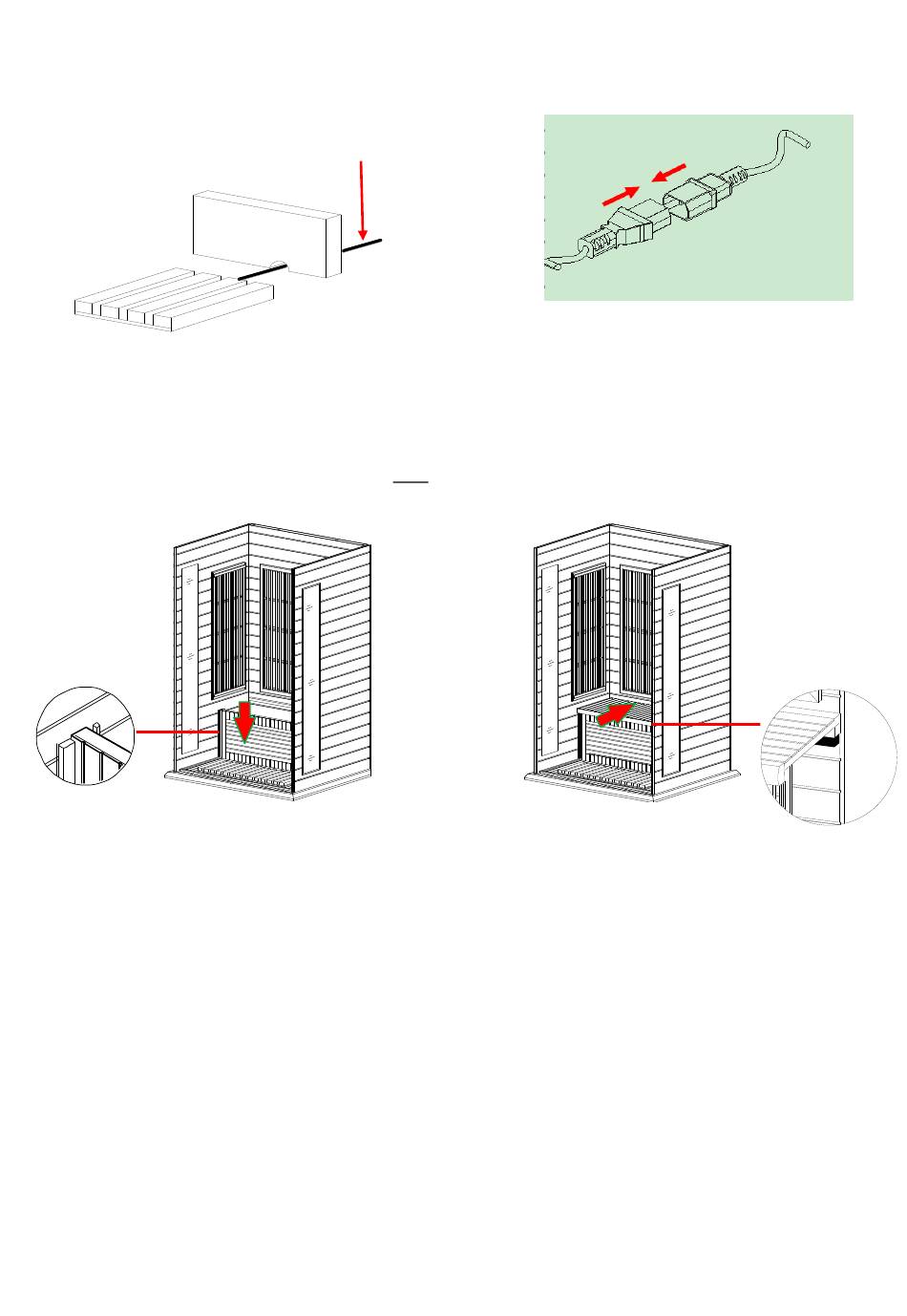

FIG 9 Connecting Cord
11. Align the Front Panel with the Floor Panel's corresponding patterns; make sure the wood pattern is flowing in the
same direction. Next, latch the Front Panel with the Left and Right Side Panels respectively. Note: Be cautious with
the glass door to avoid breakage. See FIG 11.
Bench Heating Board
Floor Heater Wire
FIG 8.1 Connect Floor Heater
FIG-10 Installing Bench
8
