Maxxus MX-K206-01 Instruction Manual

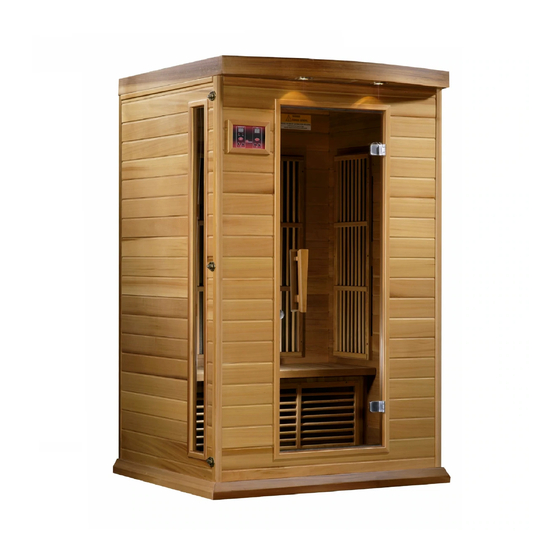

Infrared sauna
Hide thumbs Also See for MX-K206-01:
Table of Contents

Advertisement

Quick Links

Meijer.com

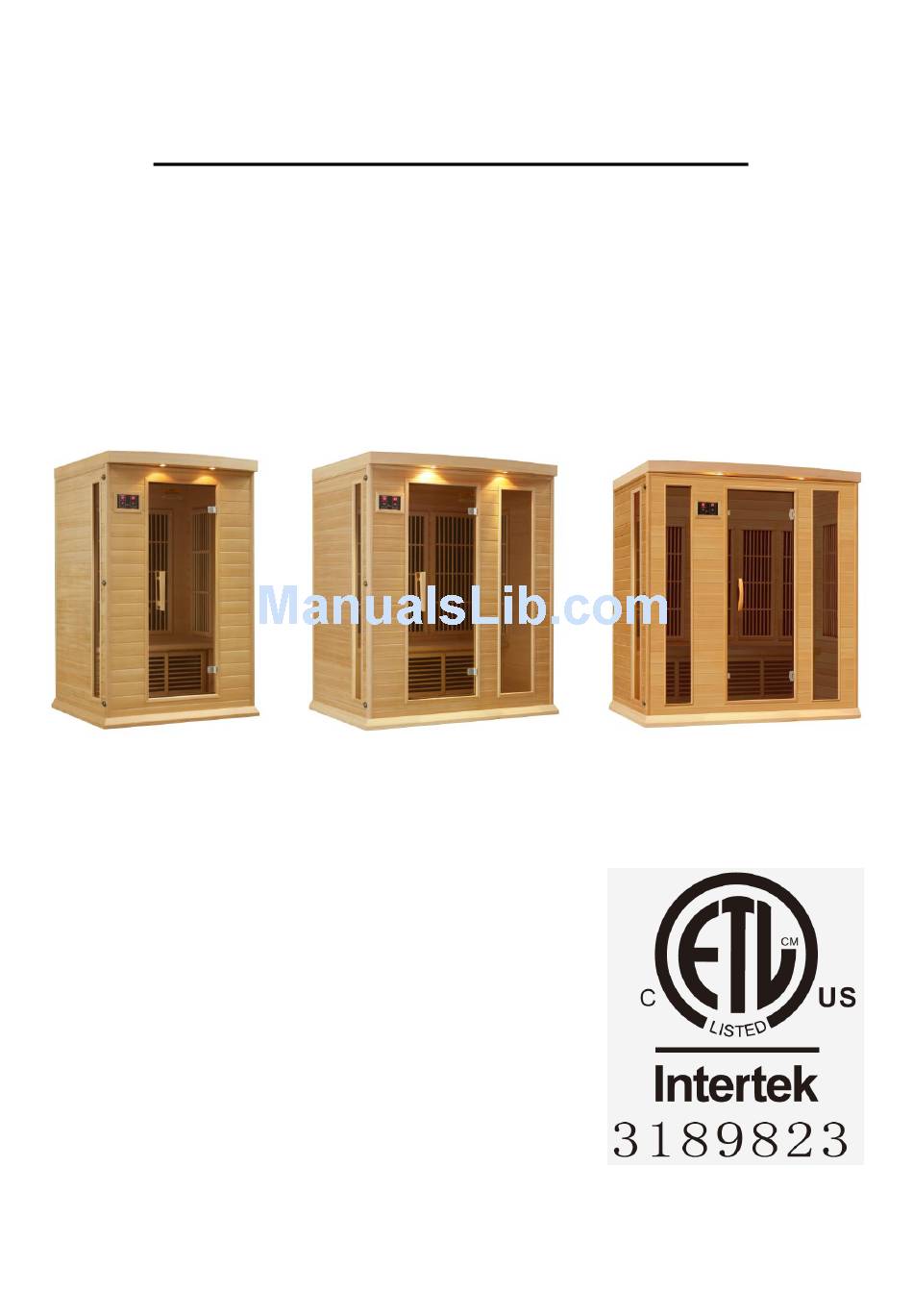

Maxxus Infrared Sauna Instruction Manual
Models MX-K206-01 / MX-K306-01 / MX-K406-01
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120V/15AMP DEDICATED CIRCUIT REQUIRED FOR MX-K206-01
120V/20AMP DEDICATED CIRCUIT REQUIRED FOR MX-K306-01 & MX-K406-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-K206-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxxus MX-K206-01

Summary of Contents for Maxxus MX-K206-01

  • Page 1 Meijer.com Maxxus Infrared Sauna Instruction Manual Models MX-K206-01 / MX-K306-01 / MX-K406-01 FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120V/15AMP DEDICATED CIRCUIT REQUIRED FOR MX-K206-01 120V/20AMP DEDICATED CIRCUIT REQUIRED FOR MX-K306-01 & MX-K406-01...

  • Page 2: Table Of Contents

    Meijer.com Thank you for choosing Maxxus Infrared Sauna! Index ===================================== Page Important Safety Guides…………………………………………………...… Introduction…………………………………………………………...………… Health & Beauty Benefits……………………………………………………… Highlights……………………………………………………………….……..… Assembly..…………………………………….……………………………..….. Sauna Operation…...…………………………………………………………… 11 Warnings…………………………………………………………………………. 13 Troubleshooting…………………………………………………………………. 13 Maintenance………………………………………………………………..…… 15 Transportation…………………………………………………………………… Packing List……………………………………………………………………… Warranty……………………………………………………………………..….. Warranty Card…………………………………………………………………… 18 MX-K206-01 Circuit Diagram………………………………………………….. 19 MX-K306-01 Circuit Diagram…………………………………………………..

  • Page 3: Important Safety Guides

    Meijer.com READ IMPORTANT SAFETY GUIDES BEFORE USING! READ AND FOLLOW ALL INSTRUCTIONS A). Please following all warning labels and markings on the sauna room. B). Do not install any receptacles on the interior or exterior walls of the sauna room. C).

  • Page 4: Introduction

    Meijer.com M). Never sleep inside the sauna. N). Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth and water. O). Do not stack or store any object on top or inside the sauna. P).

  • Page 5: Highlights

    Meijer.com Highlights a. High quality craftsmanship b. Automatic thermostat for constant temperature c. Timer and buzzer: buzzer sounds 5 minutes before the end of the sauna session d. Digital sensor and thermometer e. Infrared carbon heat emitter panels Wiring diagram: Assembly Assembly Requirements a.
  • Page 6 Meijer.com 1-----Roof Cover 2---- Roof Panel 3----Left Side Panel 4----Front Panel 5----Back Panel 6----Right Side Panel 7----Bench 8----Bench Heater Board 9----Floor Heater FIG-1 3. 2-person sauna is packed into two cartons. For example: C/NO: 002 1 OF 2 and C/NO: 002 2 OF 2. 3-person sauna and 4-person saunas are packed in three cartons.
  • Page 7 Meijer.com FIG 3 Placing Floor Panel FIG 4 Assembling Back Panel Align the Back Panel with the Floor Panel’s corresponding wood pattern; make sure the wood pattern is flowing in the same direction. One person should hold the Back Panel while the other person continues to the next step. See FIG 4 Align the Left Side Panel with the Floor Panel’s corresponding wood pattern;...
  • Page 8 Meijer.com 8. Align the Right Side Panel with the Floor Panel’s corresponding patterns; make sure the Right Panel fits flush into the Back Panel and latch together. See FIG 6 and FIG 7 FIG 7 Assembling Right Panel FIG 8 Placing Floor Heater 9.
  • Page 9 Meijer.com FIG 9 Connecting Cord FIG-10 Installing Bench 12. Align the Front Panel with the Floor Panel’s corresponding patterns; make sure the wood pattern is flowing in the same direction. Next, latch the Front Panel with the Left and Right Side Panels respectively. Note: Be cautious with the glass door to avoid breakage.
  • Page 10 Meijer.com FIG-13 Slip cords/wires through corresponding holes FIG-14 Connecting cords/wires connectors 15. Connect all the wires and connectors to the corresponding outlets on the Roof Panel. Please be sure all the plugs are connected snug and tight. See FIG-14. Next, pull down the cords/wires of the power plugs of the speakers, temperature sensor, control panel and CD player through the hole near the fan on the Roof Panel.
  • Page 11 Meijer.com 17. Connect the control panel connectors. See FIG 16 FIG 16 Connecting control panel connectors 18. Make sure all steps are completed correctly. Plug in the power cord to your wall outlet. Turn on the sauna at the control panel to confirm that the control panel is responding. If the control panel responds accordingly, t hen proceed in putting the Roof Cover onto the Roof Panel.

  • Page 12: Sauna Operation

    Meijer.com Sauna Operation 1. Precautions a. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. b. Set the temperature and time to a comfortable level. The average used temperature range is between 118ºF – 122ºF.
  • Page 13 Meijer.com d. Press the button to turn the light ON. If you want to use the Color Light Therapy System: 1. While the interior light is ON, press and hold down the button for 2 seconds. You will notice “2n” in the LED display. This indicates you are in the “light” mode. If you do not press any buttons for approximately 15 seconds, the “2n”...

  • Page 14: Warnings

    Meijer.com Warnings 1. Safety precautions a. To avoid fire, do not dry clothes or leave any towels in the sauna room. b. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a swimming pool. c.
  • Page 15 Meijer.com Infrared Heater not The heater is broken Replace heater panel heating up The wire junction or the heater’s wire Check that the connections are sung is not connected and tight The temperature sensor is broken check the connection of the temperature sensor The circuit board or the relay is not replace the circuit board...

  • Page 16: Maintenance

    Meijer.com Maintenance: Cleaning Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet before cleaning. Use plain water and a soft cloth for cleaning. Do not use benzene, alcohol, or strong cleaning chemicals in or on the sauna.

  • Page 17: Warranty

    Meijer.com Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 18 Meijer.com consequential costs, expense or damages - which may include the removal of permanent deck or other custom fixtures or the necessity for crane removal - arising directly or indirectly out of the use or inability to use the product. Any implied warranty shall have duration equal of the applicable warranty stated above.

  • Page 19: Warranty Card

    Meijer.com WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase. Warranty will be VOID if the following warranty card is not mailed back within 60 days of purchase date along with proof of purchase.

This manual is also suitable for:

Mx-k306-01Mx-k406-01
