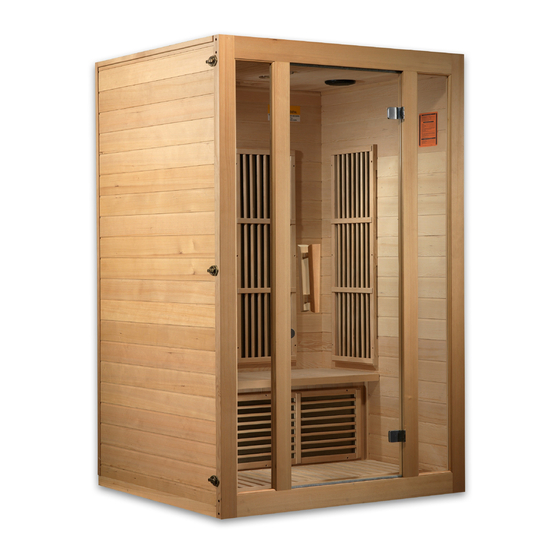

Maxxus MX-J206-01 Instruction Manual

2 and 3 person far infrared saunas
Hide thumbs Also See for MX-J206-01:

Advertisement

Quick Links

Maxxus Infrared Sauna Instruction Manual
Models: MX-J206-01/MX-J306-01
2 and 3 Person FAR Infrared Saunas
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
MX-J206-01:120VAC 15AMP Dedicated Circuit Required
MX-J306-01: 120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX-J206-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxxus MX-J206-01

Summary of Contents for Maxxus MX-J206-01

  • Page 1 2 and 3 Person FAR Infrared Saunas CARBON MODEL SAUNA FOR INDOOR USE ONLY MX-J206-01:120VAC 15AMP Dedicated Circuit Required MX-J306-01: 120VAC 20AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and...
  • Page 2 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 Health Benefits Include, But Are Not Limited To: *Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Increases blood circulation *Cardiovascular conditioning *Clears rashes, acne *Reduces cellulite *Removes toxins and mineral waste *Reduces stress and fatigue *Enhances skin tone DISCLAIMER The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits based on research completed over the last 40 years from all around the world.
  • Page 4 as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the number of wave cycles each second. The lower the frequency of a field, the lower its energy. Power frequency fields are low frequency fields and have low energy levels. Microwave and x-ray fields are high frequency fields and have high energy levels.
  • Page 5 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* MX-J206-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 4...
  • Page 6 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* MX-J306-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 5...

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Packing List Highlights Assembly Operating the Sauna Tips for Using your Sauna Safety Instructions Safeguards for your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.
  • Page 8 Highlights A. High quality craftsmanship B. Temperature control C. Timer D. Infrared carbon heat emitter panels E. Control Panel: MX-J206-01 MX-J306-01 F. Power supply: G. MP3 Jack: H. Buckles: Page 7...

  • Page 9: Assembly

    Assembly Please note the following: A. You will need a Philips screwdriver, ladder, and two adults to assemble. B. Do not plug any other appliances into the power supply of the sauna room other than the designated sauna connections/plugs. C. Assemble the sauna room on a completely level surface. D.
  • Page 10 2. Align the Back Panel with the Floor Panel’s corresponding wood pattern; make sure the wood pattern is flowing in the same direction. One person should hold the Back Panel while the other person continues to the next step. (see FIG 4) FIG 4 Assembling Back Panel 3.
  • Page 11 4. For all other models, latch the Left Side Panel with the Back Panel. The buckle has a guide tab that must be placed in the guide slot for alignment. When the Back Panel and the Side Panel is attached together on the floor panel, make sure all the buckles are latched.
  • Page 12 6. Place the Floor Heater on the Floor Panel making sure that the Floor Heater is in front of the Bench Heat Emitter Panel. Please note there is a pre-cut small hole under the Bench Heat Emitter Panel which is provided for the Floor Heater cord. This cord will connect the Floor Heater to the plug outlet on the Left Side Panel.
  • Page 13 FIG 11 Assembling Front Panel 9. Place cords/wires of Front Panel and Back Panel into the sauna room area to avoid damaging the cords/wires during the roof installation. Open the door, lift the Roof Panel up and over the sauna room, and gently lower it into place resting it on the wall panels.
  • Page 14 10. Connect all the wires and connectors to the corresponding outlets on the Roof Panel. Be sure all the plugs are connected snug and tight. (see FIG-14) FIG-14 Connecting cords/wires connectors 11. Make sure all steps are completed correctly. Next, plug in the power cord to your wall outlet.

  • Page 15: Operating The Sauna

    FIG 19 Temperature Sensor Installation Completed. Operating the Sauna MX-J206-01 MX-J306-01 1. Precautions A. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. B. Set the temperature and time to a comfortable level. Please keep in mind that you can either preheat the sauna to the set temperature before entering or sit inside the sauna as the temperature rises.
  • Page 16 degrees Fahrenheit / 50 degrees Celsius. The way the sauna room works is when you set the Control Panel to say 120 degrees F / 49 degrees C, the heat emitters will turn off when that set temperature is reached. And even though the sauna does allow the user to set the Control Panel to 150 degrees F/65 degrees C, this is specifically for those users who do not want the heat emitters to ever turn off as the sauna room will most likely never achieve 150 degrees F / 65 degrees C...
  • Page 17 4. While the interior light is on and the “2n” is still displayed in the LED display, you can press the button to scroll through the different colors within the Color Light Therapy System. You will notice that you have two selections for “white”: A.

  • Page 18: Tips For Using Your Sauna

    Tips for using Your Sauna 1. If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2. Drink water prior to, during, and after your sauna session to replenish body fluids. 3.
  • Page 19 5. Pregnant or possibly pregnant women should contact their medical physician prior to using the sauna. Excessive temperatures have a high potential for causing fetal harm during pregnancy. 6. Hyperthermia Danger: The normal body temperature can’t rise above 103°F (39°C). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and/or fainting.

  • Page 20: Safeguards For Your Sauna

    19. Do not attempt to make any repairs yourself unless authorized by the manufacturer or its agent. If a problem occurs with the sauna, please contact the manufacturer or its agent immediately to avoid safety risks. Unauthorized repair attempts will void the manufacturer’s warranty.
  • Page 21 Troubleshooting problem possible reason countermeasure indicator light for The connector is not Check the connector or power supply not connected properly replace a new one working No power supply input Check your circuit breaker to confirm power at the wall outlet Indicator light is broken replace the circuit panel...
  • Page 22 The temperature The temperature inside the Turn off the unit, and contact display shows "H" sauna room is too the manufacturer high Speaker does not The speaker is broken Replace with a new one of work the same specifications The speaker wire is loose Disconnect and reconnect the speaker connections The power indicator light for...
  • Page 23 Extent of Warranty: This limited warranty applies to products manufactured or distributed by Golden Designs, Inc. under the Maxxus brand name, delivered in the continental United States or Canada and extends to the original purchaser at the original site of installation only.

  • Page 24: Warranty

     Outdoor applications  Normal wear and tear or weathering  Use of product not in accordance with instructions  Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.

  • Page 25: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
