Maxxus MX-J206-01 Instruction Manual page 8

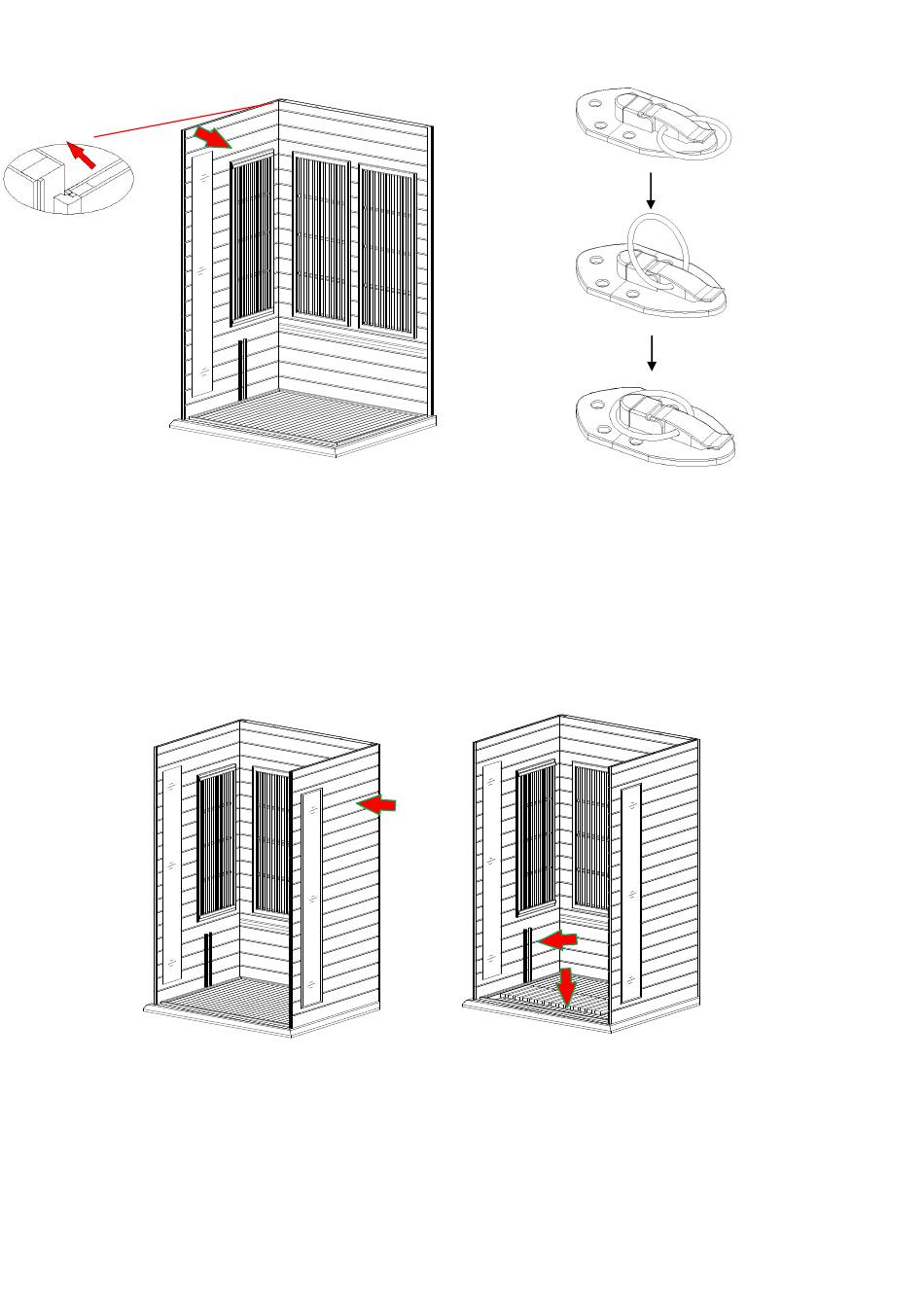

FIG 5 Assembling Left Side Panel
7. For all other models, latch the Left Side Panel with the Back Panel. The buckle has a guide tab that must be placed
in the guide slot for alignment. When the Back Panel and the Side Panel is attached together on the floor panel,
make sure all the buckles are latched. See Figure 6
8. Align the Right Side Panel with the Floor Panel's corresponding patterns; make sure the Right Panel fits flush into
the Back Panel and latch together. See FIG 6 and FIG 7
FIG 7 Assembling Right Panel
9. Place the Floor Heater on the Floor Panel making sure that the Floor Heater is in front of the Bench Heater Panel
slots. Please note there is a pre-cut small hole under the Bench Heater Panel which is provided for the Floor Heater
cord. This cord will connect the Floor Heater to the plug outlet on the Left Side Panel. See FIG 8 & 8.1
FIG 6
FIG 8 Placing Floor Heater
7
Buckle
