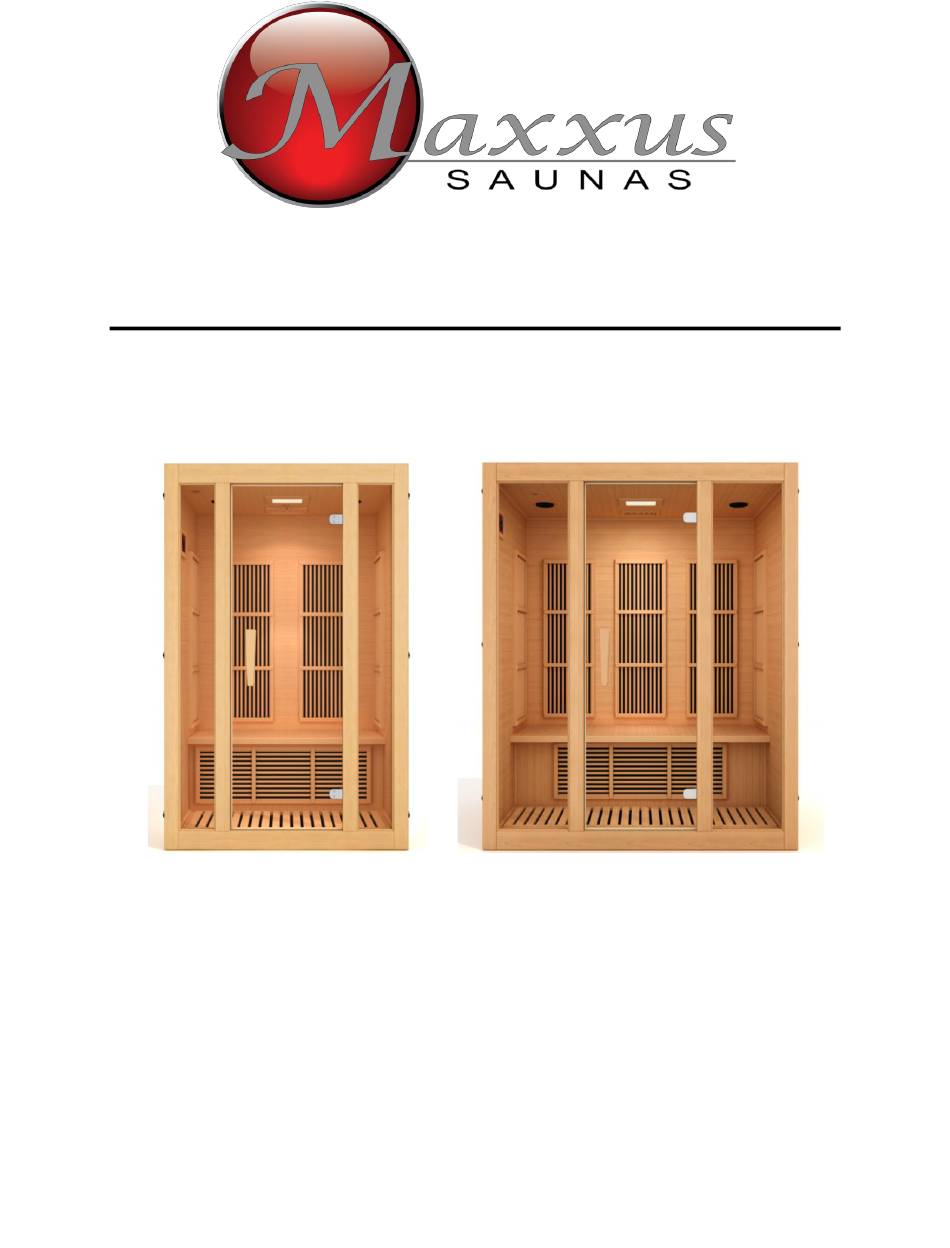

Maxxus Infrared Sauna Instruction Manual
Models: MX-J206-01/MX-J306-01
2 and 3 Person FAR Infrared Saunas
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
MX-J206-01 120VAC 15AMP Dedicated Circuit Required
MX-J306-01 120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Parts and accessories may vary and are subject to change.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CARBON MX-J206-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxxus CARBON MX-J206-01

Summary of Contents for Maxxus CARBON MX-J206-01

  • Page 1 Maxxus Infrared Sauna Instruction Manual Models: MX-J206-01/MX-J306-01 2 and 3 Person FAR Infrared Saunas CARBON MODEL SAUNA FOR INDOOR USE ONLY MX-J206-01 120VAC 15AMP Dedicated Circuit Required MX-J306-01 120VAC 20AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing List Visual Assembly Diagrams Schematics Schematic Layout Dimensional Diagram Screw Identification Highlights Assembly Instructions Operating the Sauna Maintenance Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 3: Are Infrared Rays Safe

    What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 models range at less than 3mG (NIR heaters range at about 5mG-7mG at the same approximate 2 inches). EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL).

  • Page 5: How It Works

    HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.

  • Page 6: Visual Assembly Diagrams

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Visual Assembly Diagarm MX-J206-01 (SJ-8224) *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately. We have found that starting the assembly process with the floor and front wall panel first may be the easiest, but it is not mandatory.
  • Page 7 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Visual Assembly Diagarm MX-J306-01 (SJ-8324) *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately. We have found that starting the assembly process with the floor and front wall panel first may be the easiest, but it is not mandatory.
  • Page 8 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics – MX-J206-01 (SJ-8224) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 9 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics – MX-J306-01 (SJ-8324) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 10 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics Layout – MX-J206-01 (SJ-8224) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 11 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics Layout (cont’d) – MX-J206-01 (SJ-8224) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 12 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics Layout – MX-J306-01 (SJ-8324) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 13 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Schematics Layout (cont’d) – MX-J306-01 (SJ-8324) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.

  • Page 14: Dimensional Diagram

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Dimensional Diagram – MX-J206-01 (SJ-8224) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 15 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Dimensional Diagram (cont’d) – MX-J206-01 (SJ-8224) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 16 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Dimensional Diagram – MX-J306-01 (SJ-8324) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.
  • Page 17 READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY Dimensional Diagram (cont’d) – MX-J306-01 (SJ-8324) *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.

  • Page 18: Screw Identification

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY SCREW IDENTIFICATION AND LOCATION CHART *THE PICTURES AND DIAGRAMS SHOWN WITHIN THIS OWNER’S MANUAL ARE REPRESENTATIONS OF THIS MODEL. ACTUAL MODEL MAY VARY. DESIGN AND CONSTRUCTION ARE SUBJECT TO CHANGE. BACKRESTS NOT INCLUDED.

  • Page 19: Highlights

    Highlights A. High quality craftsmanship B. Temperature control C. Timer D. Infrared carbon heat emitter panels E. Control Panel: F. Power supply: G. MP3 Jack: H. Buckles:...
  • Page 20 Assembly Please note the following: A. You will need a Philips screwdriver, ladder, and two adults to assemble. B. Do not plug any other appliances into the power supply of the sauna room other than the designated sauna connections/plugs. C. Assemble the sauna room on a completely level surface. D.
  • Page 21 Figure 3 2. Installing the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL A. Align the LEFT SIDE WALL PANEL with the FRONT WALL PANEL and use the buckles to attached the two wall panels together. You may need to remove any protection paper from over the buckles.
  • Page 22 3. Installing the REAR WALL PANEL A. Again, remove any protection paper that may be over the buckles. Place the REAR WALL PANEL up against the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL. Use the buckles to attach the REAR WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL.
  • Page 23 Bench Heating Board Floor Heater Wire Floor Heater Cut Out Figure 6 Figure 7 Figure 8...
  • Page 24 5. Installing the ROOF PANEL and DOOR HANDLE A. Place cords/wires of the wall panels to the outside of the sauna room to avoid damaging the cords/wires during the ROOF PANEL installation. Open the door, lift the Roof Panel up and over the sauna room and gently lower it into place resting it on the wall panels.

  • Page 25: Installation Completed

    C. If your sauna came with any accessories such as a small shelf, you can install it with the provided screws on the interior of the sauna room. Installation Completed.

  • Page 26: Operating The Sauna

    Operating the Sauna NOTE: Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 27 2. Operating The Sauna a. Review the electrical label on the sauna and then plug the sauna into the proper wall outlet. No other appliance can be operated on the same electrical breaker as the sauna when the sauna is in use. Proceed in turning on the sauna room using the ON/OFF button to activate the sauna.
  • Page 28 Therapy can operate when the sauna’s power is ON or OFF. f. You can operate the sauna with the ceiling vent in the open or closed position based on personal preference. g. After your sauna session is over, you can turn the control panel off by pressing the ON/OFF button.

  • Page 29: Maintenance

    increase the time it takes for the sauna to reach the set temperature if you enter the sauna room before it has reached the set temperature. Also, the most commonly used temperature setting is between 118 degrees Fahrenheit / 48 degrees Celsius and 122 degrees Fahrenheit / 50 degrees Celsius.

  • Page 30: Safety Instructions

    movable roof vent or leave the door slightly open. The roof vent is installed on the sauna and used based on personal preference. 4. Use 2 towels during your sauna session. Fold the first towel several times and place it on the bench. As you sit on this towel, it will absorb a majority of your perspiration while adding comfort as you sit on the bench.
  • Page 31 (39°C). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and/or fainting. The effects of excessive hyperthermia may include, but are not limited to failure to perceive heat, physical inability to exit the sauna, unawareness of impending hazards, unconsciousness, and/or fetal harm in pregnant women.

  • Page 32: Safeguards For Your Sauna

    21. Some sauna models are equipped with reading and/or roof lamps. Because the lamp temperature will become very hot once powered ON, do not attempt to touch the lamp to avoid being burned. Do not attempt to touch it for at least 20 minutes or until it cools down completely if a need to touch it arises.
  • Page 33 Infrared Heater not The heater is broken Replace heater panel heating up The wire junction or the Check that the connections heater’s wire is not are sung and tight connected The temperature sensor is check the connection of the broken temperature sensor The circuit board or the replace the circuit board...

  • Page 34: Limited Lifetime Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty*: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.
  • Page 35 ▪ Outdoor applications ▪ Normal wear and tear or weathering ▪ Use of product not in accordance with instructions ▪ Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.
  • Page 36 PAGE INTENTIONALLY LEFT BLANK...

  • Page 37: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
