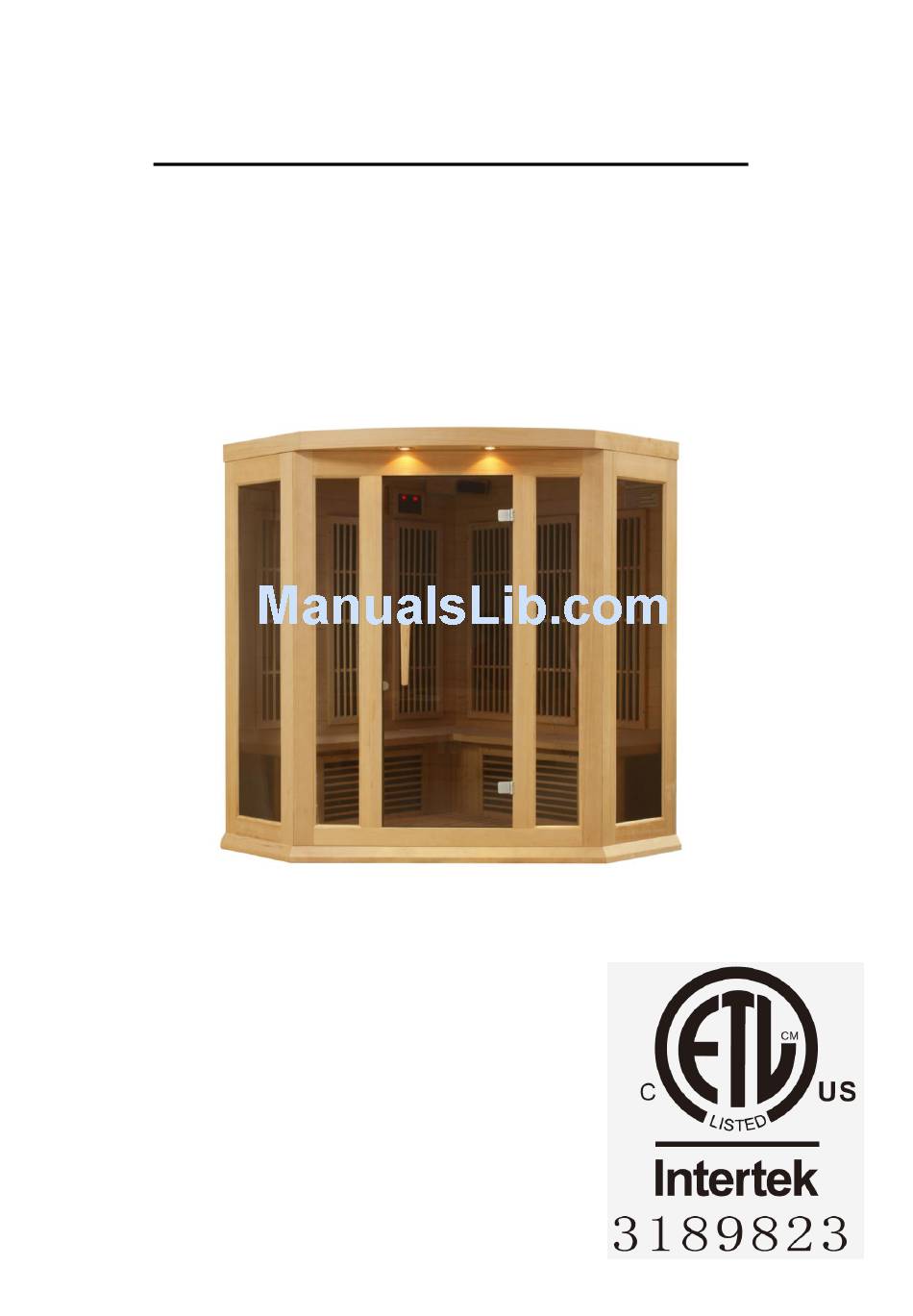

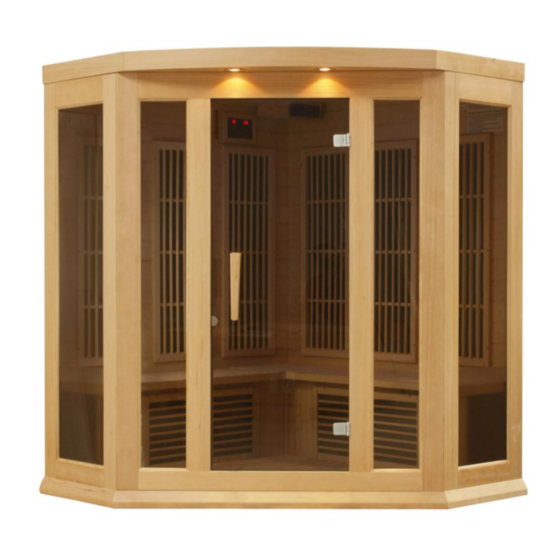

- Page 1 Meijer.com Maxxus Infrared Sauna Instruction Manual Model MX-K356-01 FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY 110V/15 AMP DEDICATED CIRCUIT REQUIRED...
-
Page 2: Table Of Contents
Meijer.com Thank you for choosing Maxxus Infrared Sauna! Index ===================================== Page Important Safety Guides…………………………………………………...… Introduction…………………………………………………………...………… Health & Beauty Benefits……………………………………………………… Highlights……………………………………………………………….……..… Assembly..…………………………………….……………………………..….. Sauna Operation…...…………………………………………………………… 12 Warnings…………………………………………………………………………. 14 Troubleshooting…………………………………………………………….…… 15 Maintenance………………………………………………………………..…… 16 Transportation…………………………………………………………………… Packing List……………………………………………………………………… Warranty………………………………………………………………...…..….. Warranty Card…………………………………………………………………… 19 Circuit Diagram……………………………………………………………..….. WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. -
Page 3: Important Safety Guides
Meijer.com READ IMPORTANT SAFETY GUIDES BEFORE USING! READ AND FOLLOW ALL INSTRUCTIONS A). Please following all warning labels and markings on the sauna room. B). Do not install any receptacles on the interior or exterior walls of the sauna room. C). -
Page 4: Introduction
Meijer.com M). Never sleep inside the sauna. N). Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth and water. O). Do not stack or store any object on top or inside the sauna. P). -
Page 5: Highlights
Meijer.com Highlights a. High quality craftsmanship b. Automatic thermostat for constant temperature c. Timer and buzzer: buzzer sounds 5 minutes before the end of the sauna session d. Digital sensor and thermometer e. Infrared carbon heat emitter panels Wiring diagram: Assembly Assembly Requirements a. - Page 6 Meijer.com 1- Roof Cover 2- Roof Panel 3- Left Back Panel 4- Left Side Panel 5- Front Panel 6- Right Back Panel 7- Right Side Panel 8- Right Bench 9- Left Bench 10- Right Bench Heating Board 11- Left Bench Heating Board 12- Floor Panel 13- Floor Heater FIG-1...
- Page 7 Meijer.com See FIG 3. FIG 3 Placing Floor Panel Align the Right Back Side Panel with the Floor Panel’s corresponding wood pattern; make sure the wood pattern is flowing in the same direction. One person should hold the Right Back Side Panel while the other person continues to the next step.
- Page 8 Meijer.com 7. The Right Back Side Panel will align with the Right Side Panel. Once they are aligned and fit together snug and tight, use the latches to buckle together. Do the same for the Left Back Side Panel and the Left Side Panel. See Figure 6 FIG 6 Assembling Back Side Panels and Side Panels 8.
- Page 9 Meijer.com FIG 9 Inserting Benches FIG 10 Securing Benches with screws 12. Align the Front Panel with the Floor Panel, Right Side Panel, and Left Side Panel. Next, latch the Front Panel with the Left and Right Side Panels respectively. Note: Be cautious with the glass door to avoid breakage. See FIG 11. FIG 11 Assembling Front Panel 13.
- Page 10 Meijer.com FIG 12 Slip cords/wires through corresponding holes FIG 13 Connecting cords/wires connectors FIG 14 Slip cords/wires through roof 16. The CD Player will already be mounted in its wood housing box. Connect the antenna to the CD player. Next, feed the wires up through the roof.
- Page 11 Meijer.com FIG 15.1 CD Player in wood housing FIG 15.2 Connect antenna plug FIG 15.3 Feed the wires up through the roof FIG 15.4 Screw wood housing to sauna room 17. Connect the CD Player wire harness on the roof. See FIG 16 FIG 16 Connecting CD Player connection 18.
- Page 12 Meijer.com 19. Make sure all steps are completed correctly. Plug in the power cord to your wall outlet. Turn on the sauna at the control panel to confirm that the control panel is responding. Turn on the CD Player to confirm that is operates. If the control panel and CD Player respond accordingly, then proceed in putting the Roof Cover onto the Roof Panel.
-
Page 13: Sauna Operation
Meijer.com Sauna Operation 1. Precautions a. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. b. Set the temperature and time to a comfortable level. The average used temperature range is between 118ºF – 122ºF. - Page 14 Meijer.com d. Press the button to turn the light ON. If you want to use the Color Light Therapy System: 1. While the interior light is ON, press and hold down the button for 2 seconds. You will notice “2n” in the LED display. This indicates you are in the “light”...
-
Page 15: Warnings
Meijer.com CAUTION: Exit sauna immediately if you feel dizzy, sleepy, or any discomfort. Warnings 1. Safety precautions a. To avoid fire, do not dry clothes or leave any towels in the sauna room. b. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a swimming pool. c. -
Page 16: Troubleshooting
Meijer.com Troubleshooting: problem possible reason countermeasure indicator light for power The connector is not connected Check the connector or replace a new supply not working properly No power supply input Check your circuit breaker to confirm power at the wall outlet Indicator light is broken replace the circuit panel Indicator light for function... -
Page 17: Maintenance
Meijer.com Speaker does not work The speaker is broken Replace with a new one of the same specifications The speaker wire is loose Disconnect and reconnect the speaker connections The power indicator light for CD is off Turn on the switch to start work CD-Player doesn’t work Power connector is loose or damage Disconnect and reconnect the... -
Page 18: Warranty
Meijer.com Limited LifetimeWarranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. - Page 19 Meijer.com removal - arising directly or indirectly out of the use or inability to use the product. Any implied warranty shall have duration equal of the applicable warranty stated above. Under no circumstances shall Golden Designs, Inc. or any of its representatives be held li able for injury to any person or damage to any property, however arising.
- Page 20 Meijer.com PAGE INTENTIONALLY LEFT BLANK...
-
Page 21: Warranty Card
Meijer.com WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase. Warranty will be VOID if the following warranty card is not mailed back within 60 days of purchase date along with proof of purchase.
