FIG-2.1
4. Place the Floor Panel on a smooth/flat surface and make sure which side is the front and which side is the back.
The front of the floor has no quarter round trim molding as do the other three sides.
FIG 3
4.
Align the Back Panel with the Floor Panel's corresponding wood pattern; make sure the wood pattern is flowing in
the same direction. One person should hold the Back Panel while the other person continues to the next step. See
FIG 4
5.
Align the Left Side Panel with the Floor Panel's corresponding wood pattern; make sure the Left Side Panel fits flush
into the Back Panel. See FIG 5

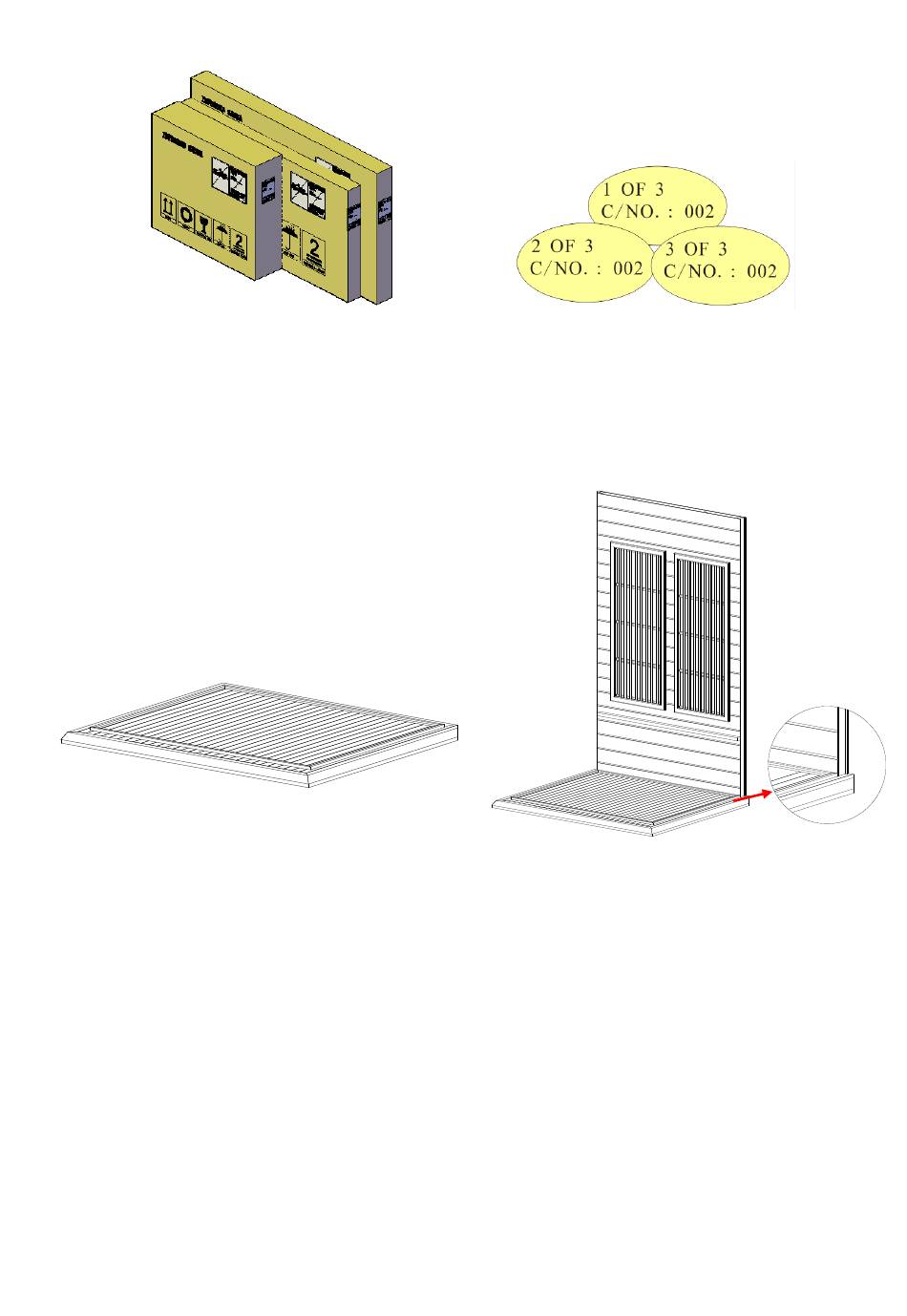

Cartons
Placing Floor Panel
FIG-2.2 C/No.
FIG 4 Assembling Back Panel
6
See FIG 3.
