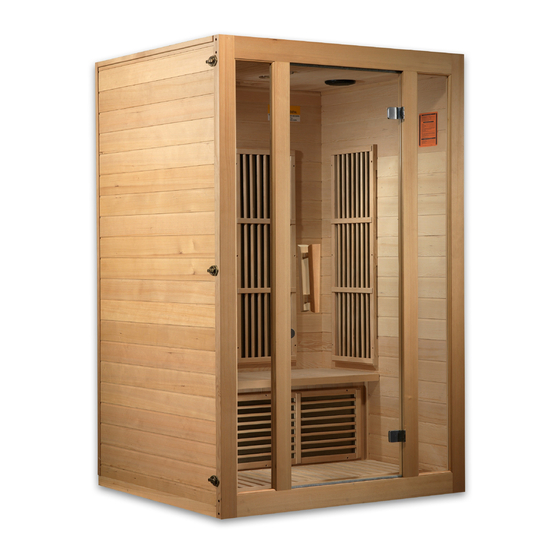

Maxxus Infrared Sauna Instruction Manual
Model: MX-J206-01
FOR CARBON MODEL SAUNAS
HEMLOCK AND RED CEDAR MODELS
FOR INDOOR USE ONLY
120V/15AMP DEDICATED CIRCUIT REQUIRED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-J206-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxxus MX-J206-01

Summary of Contents for Maxxus MX-J206-01

  • Page 1 Maxxus Infrared Sauna Instruction Manual Model: MX-J206-01 FOR CARBON MODEL SAUNAS HEMLOCK AND RED CEDAR MODELS FOR INDOOR USE ONLY 120V/15AMP DEDICATED CIRCUIT REQUIRED...

  • Page 2: Table Of Contents

    Thank you for choosing Maxxus Infrared Sauna! Index ===================================== Page Important Safety Guides…………………………………………………...… Introduction…………………………………………………………...………… Health & Beauty Benefits……………………………………………………… Highlights……………………………………………………………….……..… Assembly..…………………………………….……………………………..….. Operating Your Sauna..………………………………………………………… 11 Tips For Using Your Sauna...………………………….………………………. 13 Safety Instructions………………………………………………………………. 14 Safeguards For Your Sauna..……………………………………………..…… 15 Troubleshooting Guide..………………………………………………………… 16 Warranty……………………………………………………………………..…..

  • Page 3: Important Safety Guides

    READ IMPORTANT SAFETY GUIDES BEFORE USING! READ AND FOLLOW ALL INSTRUCTIONS A). Please following all warning labels and markings on the sauna room. B). Do not install any receptacles on the interior or exterior walls of the sauna room. C). No locking devices are installed or shall be installed on the door of the sauna room which could result in entrapment within the sauna room.

  • Page 4: Introduction

    M). Never sleep inside the sauna. N). Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth and water. O). Do not stack or store any object on top or inside the sauna. P).

  • Page 5: Highlights

    Highlights a. High quality craftsmanship b. Automatic thermostat for constant temperature c. Timer and buzzer: buzzer sounds 5 minutes before the end of the sauna session d. Digital sensor and thermometer e. Infrared carbon heat emitter panels Power supply: Main Power: main power to sauna room HT1, HT2, HT3, &...
  • Page 6 Sauna Room Assembly: 1. Structure of Infrared Sauna. See FIG-1 2. Make sure all parts are present before installing the unit. See packing list below. A. Front Panel B. Floor Panel C. Back Panel D. Left Side Panel E. Right Side Panel F.
  • Page 7 FIG-2.1 Cartons FIG-2.2 C/No. 4. Place the Floor Panel on a smooth/flat surface and make sure which side is the front and which side is the back. The front of the floor has no quarter round trim molding as do the other three sides. See FIG 3.
  • Page 8 FIG 5 Assembling Left Side Panel FIG 6 Buckle 7. For all other models, latch the Left Side Panel with the Back Panel. The buckle has a guide tab that must be placed in the guide slot for alignment. When the Back Panel and the Side Panel is attached together on the floor panel, make sure all the buckles are latched.
  • Page 9 Bench Heating Board Floor Heater Floor Heater Wire FIG 8.1 Connect Floor Heater 10. Slide the Bench Heater Panel down (vertically) into the slot provided on both the Left and Right Side panels. Connect the Bench Heater Panel cord with the outlet on the Back Panel and then place the Bench on top of the Bench Heater Panel and slide it into place.
  • Page 10 FIG 11 Assembling Front Panel FIG 12 Installing Roof Cover 12. Place cords/wires of Front Panel and Back Panel into the sauna room area to avoid damaging the cords/wires during the roof installation. Open the door, lift the Roof Panel up and over the sauna room, and gently lower it into place resting it on the wall panels.
  • Page 11 Connect the plugs according to the respective labels. Connect the CTRL plug from the power supply to the CTRL plug from See FIG-14 – FIG-18. the control panel. Then screw the two connections together. Last, connect the buzzer connection. FIG-15 FIG-16 FIG-17 FIG-18...

  • Page 12: Operating Your Sauna

    17. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. FIG 19 Installation Completed. Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly.
  • Page 13 desired settings, press the START/WORK button. If you don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will be memorized. The WORK and HEAT lights will now be on and the emitters will now be generating heat. You will need to pre-heat the sauna room to the set temperature before entering.

  • Page 14: Tips For Using Your Sauna

    Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...

  • Page 15: Safety Instructions

    At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your immune system and decreasing the reproductive rate of viruses. To help relieve sore and tense muscles, massage the affected areas during your sauna session. To treat your ankles and feet more effectively, you can elevate them and move them close to one of the heat emitters to achieve a deep heating effect.

  • Page 16: Safeguards For Your Sauna

    14) If the power supply cord becomes damaged, it must be replaced immediately by the manufacturer or its agent. If you find the power cord is too hot or that the electrical equipment may be experiencing techn ical problems, please contact the manufacturer or its agent immediately to avoid hazardous conditions.

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power suppl y.
  • Page 18 damaged. If the power supply is malfunctioning or power cords are damaged, then unplug the sauna immediately and contact the manufacturer. Solution: If your sauna is plugged in and you have no power at the control panel, then the power supply may need to be reset.

  • Page 19: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.
  • Page 20 Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Note: Since the wood used in construction has been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.

  • Page 21: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
