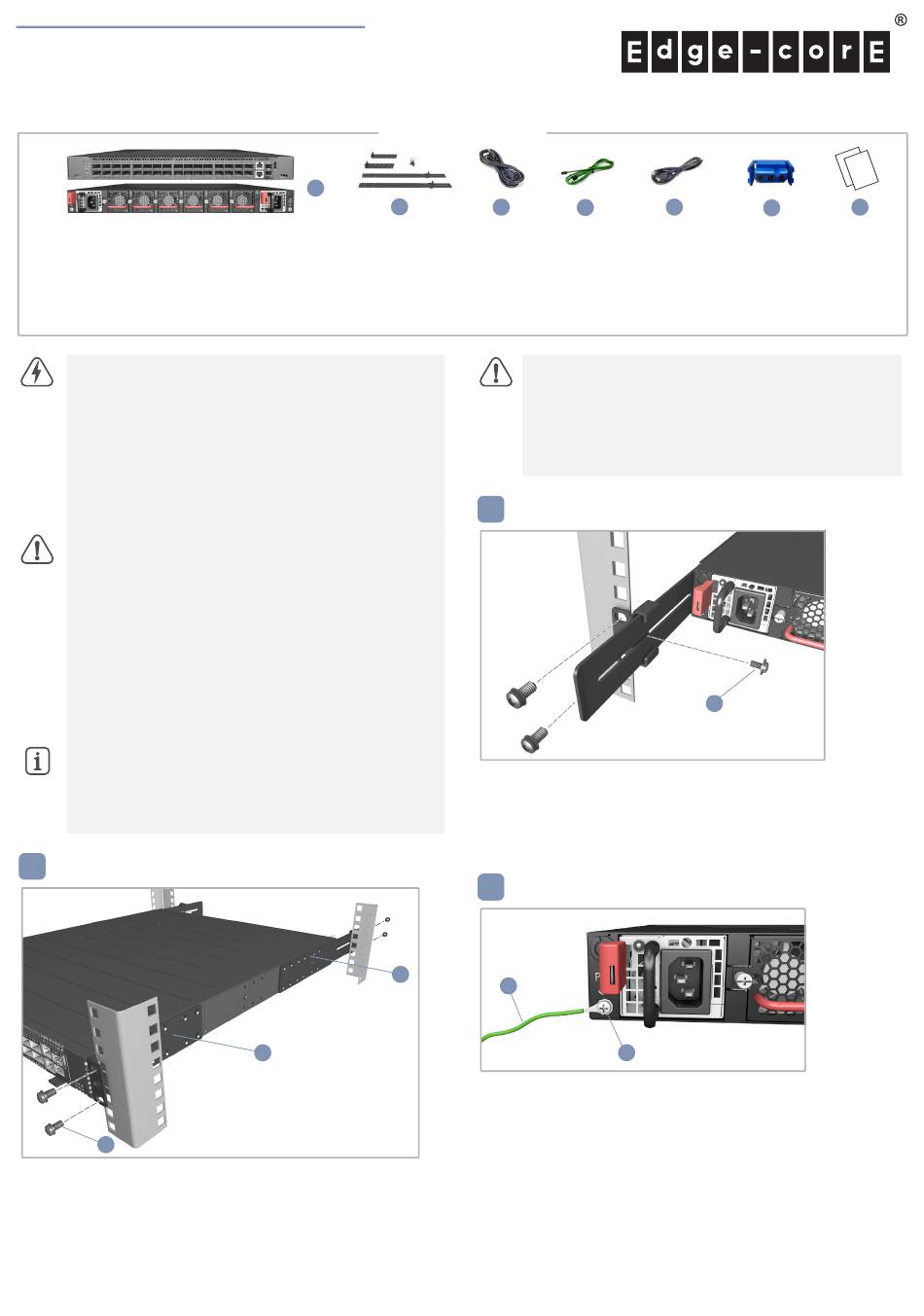

Edge-Core AS7726-32X Quick Start Manual

Quick Start Guide
32-Port 100G Top-of-Rack Switch
AS7726-32X
1. 32-Port 100G Top-of-Rack Switch AS7726-32X
2. Rack mounting kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
3. Power cord (included with AC PSUs only)
4. Ground wire (included with DC PSUs only)
Warning:
For a safe and reliable installation, use only
the accessories and screws provided with the AS7726-
32X. Use of other accessories and screws could result in
damage to the unit. Any damages incurred by using
unapproved accessories are not covered by the warranty.
Avertissement:
Pour une installation sûre et fiable,
utilisez uniquement les accessoires et les vis fournies avec
le AS7726-32X. L'utilisation d'autres accessoires et vis
pourrait endommager l'appareil. Les dommages causés
par l'utilisation d'accessoires non approuvés ne sont pas
couverts par la garantie.
Caution: The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Attention: Le commutateur comprend des modules
d'alimentation et de bac de ventilateurs installés sur son
châssis. Tous les modules installés doivent avoir une
direction de circulation d'air correspondante. C'est-à-dire
que tous les modules doivent avoir la même direction de
circulation d'air : avant vers arrière (F2B), ou arrière vers
avant (B2F).
Note: The switch has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
switch, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
1
Attach the Brackets
2
1. Attach each of the front- and rear-post brackets to the switch
using four of the included bracket screws.
2. Use the screws and cage/clip nuts supplied with the rack to
secure the switch in the rack.
www.edge-core.com
Package Contents
1
2
1
1
3 4
5. Console cable—RJ-45 to DB-9
6. DC power connector (included with 48 VDC PSU only)
7. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
Caution: Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other person secures it using the rack screws.
Attention: Deux personnes sont nécessaires pour installer
un commutateur dans un bâti : La première personne va
positionner le commutateur dans le bâti, la seconde va le
fixer avec des vis de montage.
2
Adjust Rear-Post Bracket Ears
1. Lock the position of the rear-post bracket ears using the included
position-locking screws.
You can adjust the rear-post bracket ears to fit different rack
depths from 56 cm to 75 cm.
3
Ground the Switch
1
1. Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2. Attach the grounding wire (#14 AWG) to the grounding point
on the switch rear panel. Then connect the other end of the wire
to rack ground.
– 1 –
5
6
1
2
7
