Edge-Core AS7716-24SC Quick Start Manual

Quick Start Guide
100G Coherent Switch
AS7716-24SC

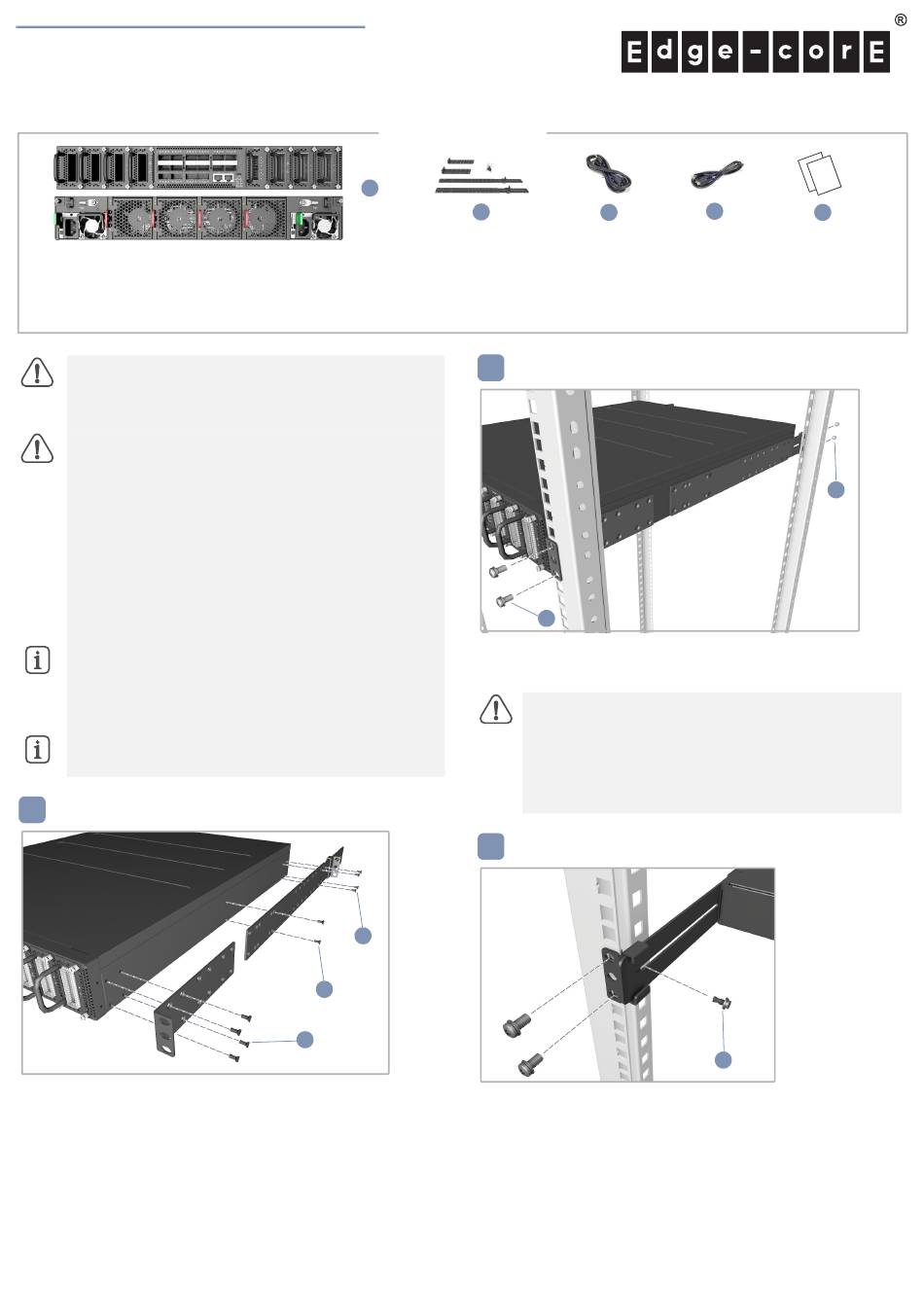

1. Coherent Switch AS7716-24SC
2. Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
3. Power cord (included with AC PSUs only)
Caution: The device must be installed in a restricted-
access location.
Attention: le périphérique doit être installé dans un
emplacement à accès restreint.
Caution: The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Attention: Le commutateur comprend des modules
d'alimentation et de bac de ventilateurs installés sur son
châssis. Tous les modules installés doivent avoir une
direction de circulation d'air correspondante. C'est-à-dire
que tous les modules doivent avoir la même direction de
circulation d'air : avant vers arrière (F2B), ou arrière vers
avant (B2F).
Note: The switch has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
switch, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
Note: The drawings in this document are for illustration
only and may not match your particular model.
1
Attach the Brackets
1. Attach each of the two front-post brackets to the switch using
four of the included bracket screws.
2. Attach each of the two rear-post brackets to the switch using four
of the included bracket screws.
3. Use an additional two bracket screws to secure the rear-post
brackets at the mid-point on the side of the switch.
www.edge-core.com
Package Contents
1
2
3
1
– 1 –
2
3
4. Console Cable—RJ-45 to DB-9
5. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
2
Mount the Switch in a Rack
1
1. Use the screws and cage/clip nuts supplied with the rack to
secure the switch in the rack.
Caution: Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other person secures it using the rack screws.
Attention: Deux personnes sont nécessaires pour installer
un commutateur dans un bâti : La première personne va
positionner le commutateur dans le bâti, la seconde va le
fixer avec des vis de montage.
3
Adjust Rear-Post Bracket Ears
1. Lock the position of the rear-post bracket ears using the included
position-locking screws.
You can adjust the rear-post bracket ears to fit different rack
depths from 56 cm to 75 cm.
4 5
1
1
