Edge-Core AS7816-64X Quick Start Manual

Quick Start Guide

64-Port 100G Top-of-Rack Switch
AS7816-64X
1.
100G Top-of-Rack Switch AS7816-64X
2.
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
3.
Power Cord
Caution:
The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Note:
The switch has the Open Network Install
Environment (ONIE) software installer preloaded on the
switch, but no switch software image. Information about
compatible switch software can be found at
www.edge-core.com.
Note:
The switch drawings in this document are for
illustration only and may not match your particular switch
model.

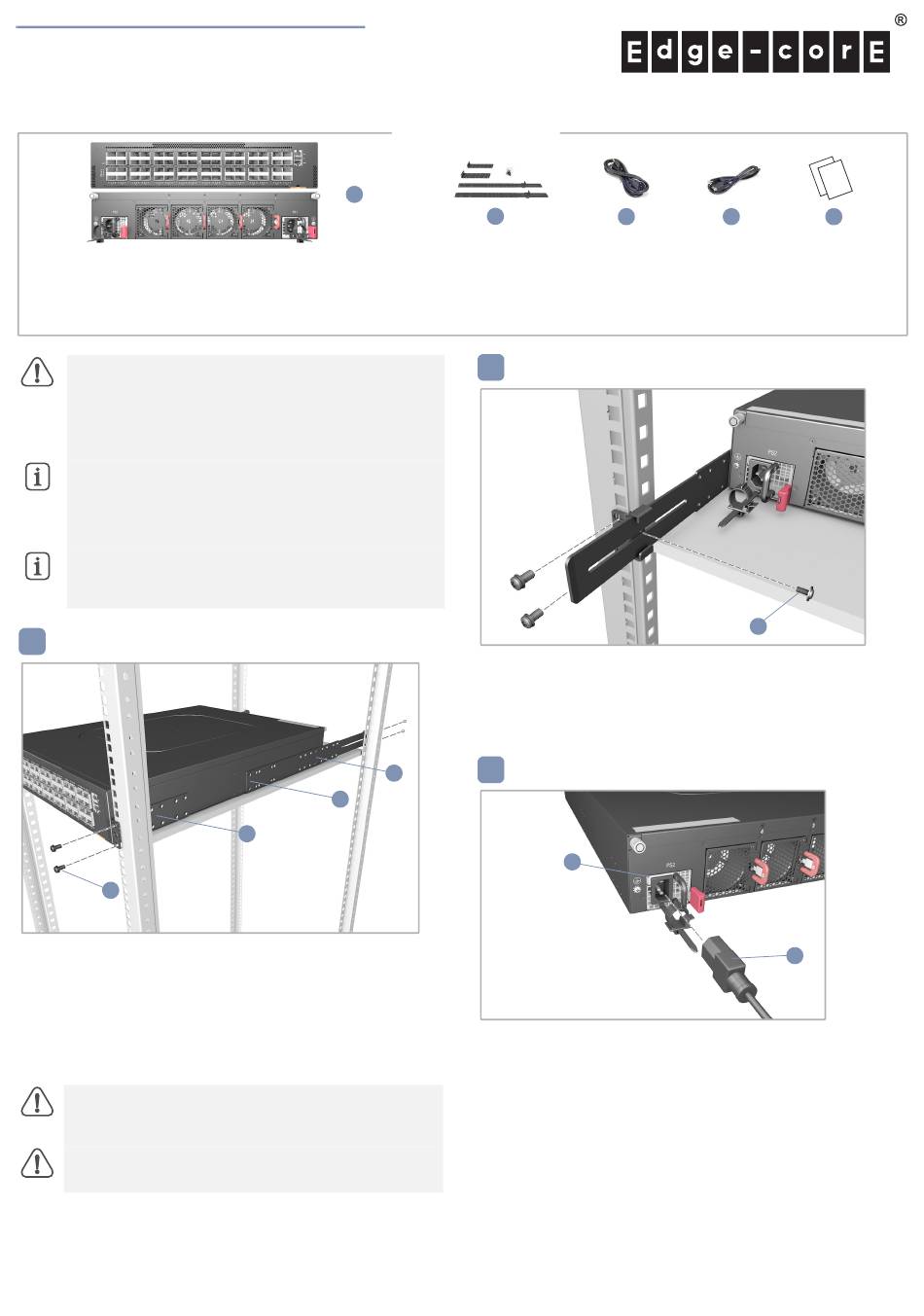

Attach the Brackets
1
3
1.
Attach each of the front- and rear-post brackets to the switch
using four of the included bracket screws.
2.
Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the switch.
3.
Use the screws and cage nuts supplied with the rack to secure
the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other person secures it using the rack screws.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る 。
www.edge-core.com

Package Contents

1
1
2
1
2
4.
Console Cable—RJ-45 to DB-9
5.
Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
Adjust Rear-Post Bracket Ears
2
1.
Lock the position of the rear-post bracket ears using the included
position-locking screws.
You can also adjust the rear-post bracket ears to fit different rack
depths from 56 cm to 75 cm.

Connect Power

3
1
1.
Install one or two AC PSUs in the switch.
The switch supports up to two PSUs that must have the same
matching airflow direction as the installed fan tray.
2.
Connect an external AC power source to the PSUs.
– 1 –
4
3
1
2
5
