Edge-Core AS7535-28XBE Quick Start Manual

Quick Start Guide
Ethernet Switch
AS7535-28XB | AS7535-28XBE

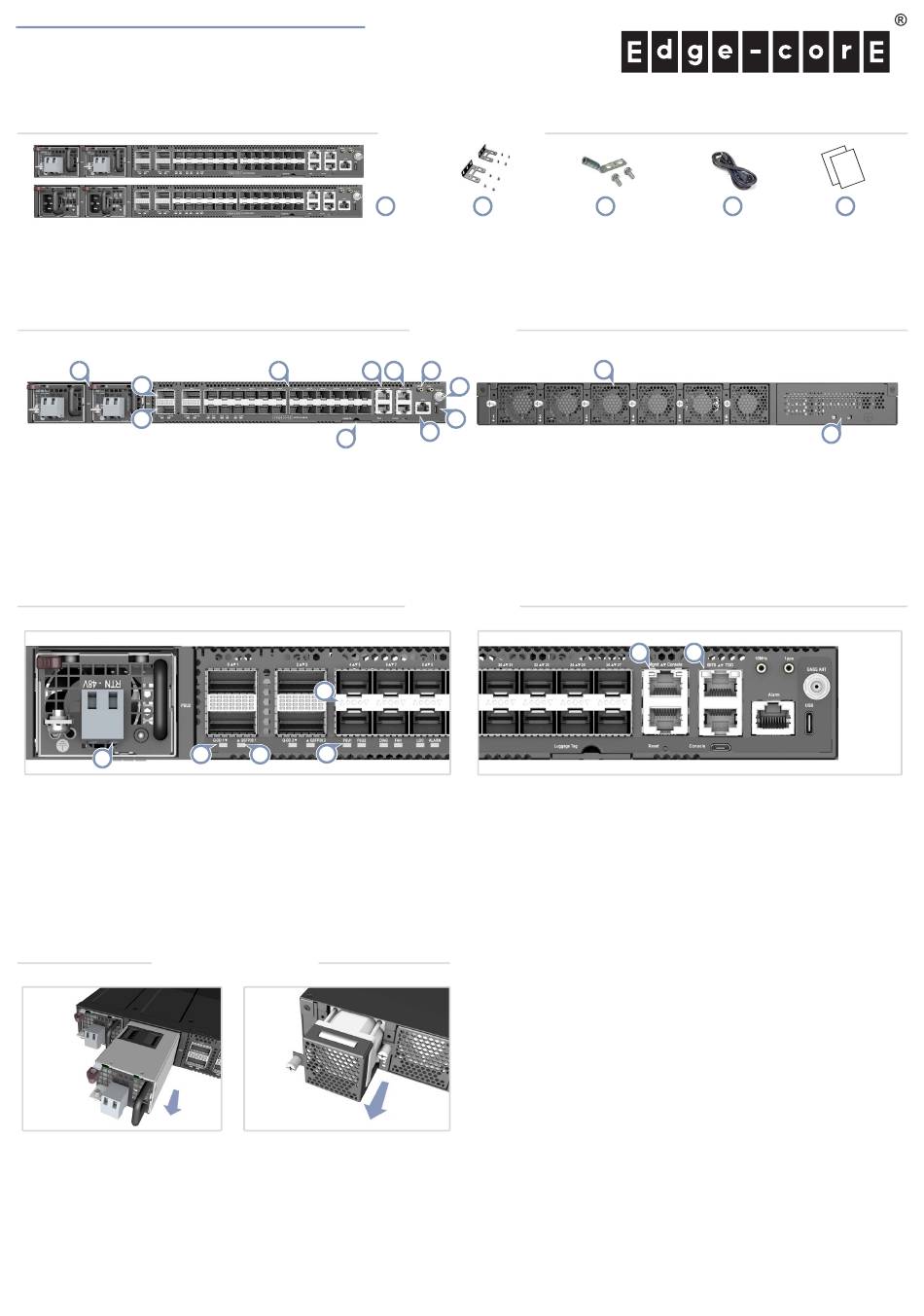

1.

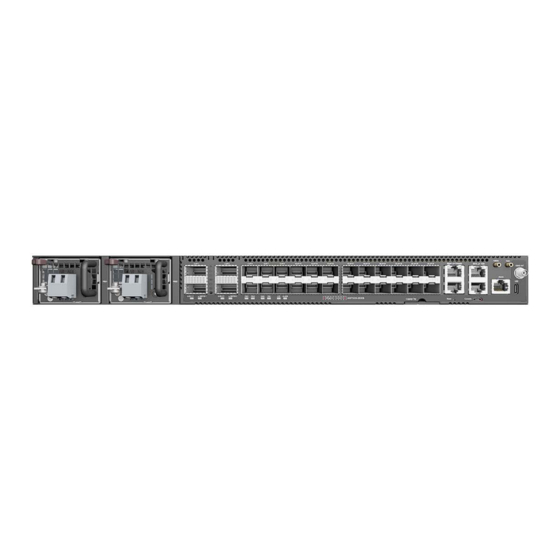

AS7535-28XB/AS7535-28XBE (includes 2 PSUs and 6 fan trays)
2. Rack Mounting Kit—2 brackets and 8 screws
3.
Grounding kit—grounding lug, 2 screws, and 2 washers
1
2
3
1.
2 x DC or AC PSUs
2.
2 x 100G QSFP28 ports
3.
2 x 400G QSFP-DD ports
4.
24 x 25G SFP28 ports
5.
Product tag
6. Management I/O: 1000BASE-T RJ-45, RJ-45 console,
Micro-USB console, reset button
1
1.
PSU LED: Green (OK), Amber (fault)
2.
QSFP-DD Port LEDs: Blue (400G), Cyan (200G), Green (100G),
Yellow (50G)
3.
QSFP28 Port LEDs: Green (100G), Cyan (50G), Magenta (40G),
Blue (25G), Yellow (10G)
4.
SFP28 Port LEDs: Blue (25G), Green (10G), Cyan (1G)
FRU Replacement
PSU Replacement
1.
Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU.

4 6
5
4
2 5
3
Fan Tray Replacement
1.
Loosen the fan tray screw.
2.
Pull out and remove the fan
tray.
3.
Install replacement fan tray.
Package Contents
1 2
4.
(Optional) AC power cord
5. Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
8
7
9
10
11
7.
BITS/ToD RJ-45 timing ports
8.
10MHz/1PPS I/O
9.
GNSS antenna
10.
USB Type C storage port
11.
RJ-45 alarm port
12. 6 x fan trays
13.
Grounding screw
Status LEDs
5.
System LEDs:
PSU1/2 — Green (OK), Amber (fault)
DIAG — Green (OK), Orange (fault detected)
FAN — Green (OK), Orange (fault)
LOC — Blinking Blue (OK)
ALARM — Green (OK), Red (alarm)
6.
RJ-45 Management Port LEDs: Left (link), Right (activity)
7. BITS/ToD LEDs: Green (valid BITS), Blinking Green (1PPS ToD)
