Quick Star t Guide
24/48-Port GE Data Center Switch
AS4610-30T | AS4610-30P | AS4610-54T | AS4610-54P

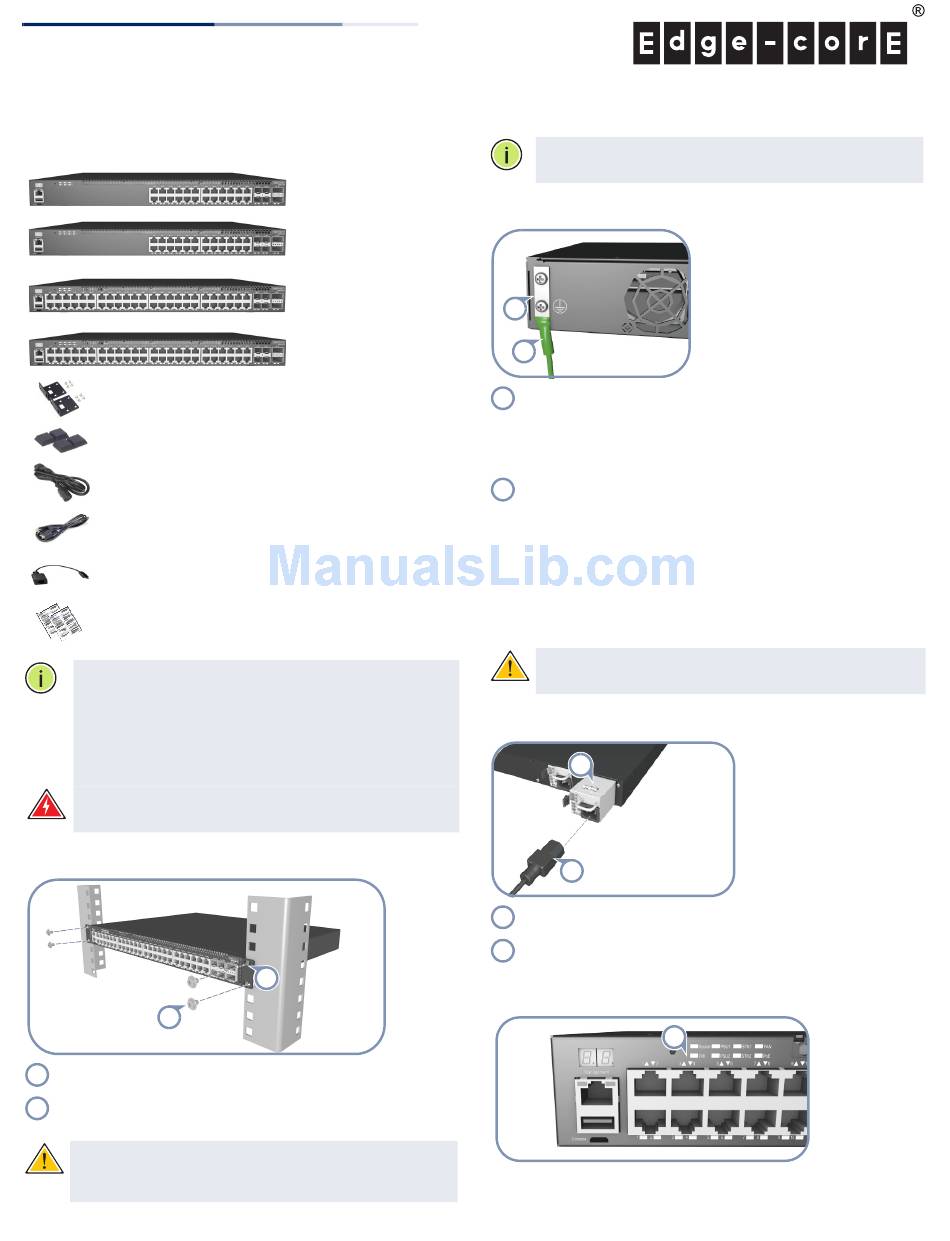

1. Unpack the Switch and Check Contents
Rack mounting kit—two brackets and eight screws
Four adhesive foot pads
Two power cords
Console cable—RJ-45 to DB-9
Micro-USB to RJ-45 Cable
Documentation—Safety and Regulatory Information,
Quick Start Guide (this document) and WEEE flyer
Note:
For information on switch software, refer to
www.edge-core.com.
Switches with part numbers 4610-54-O-******** have the
Open Network Installer Environment software installer pre-
loaded on the switch, but no switch software image.
Information about compatible switch software can be
found at www.edge-core.com.
Warning:
For indoor use only. The switch, AC power, and
all connected cables are not designed for outdoor use.

2. Mount the Switch

2
1 Attach the brackets to the switch.
2 Use the screws and cage/clip nuts appropriate for the rack
to secure the switch in the rack.
Caution: Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
www.edge-core.com
AS4610-30T
AS4610-30P
AS4610-54T
AS4610-54P
1
Note: The switch can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.

3. Ground the Switch

2
1
1 Ensure the rack on which the switch is to be mounted is
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to the
grounding point on the rack (no paint or isolating surface
treatment).
2
For a PoE switch, attach a lug (not provided with PSU) to a
#12 AWG minimum grounding wire (not provided with PSU),
and connect it to the grounding point on the switch rear
panel. Then connect the other end of the wire to rack
ground.
For a Non-PoE switch, attach a lug (not provided with PSU) to
a #18 AWG minimum grounding wire (not provided with
PSU), and connect it to the grounding point on the switch
rear panel. Then connect the other end of the wire to rack
ground.
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.

4. Connect Power

1
2
1 Install one or two universal AC PSUs in the switch.
2 Connect an external AC power source to the PSUs.

5. Verify Switch Operation

– 1 –
1
