UPDATE DEVICE:

By pressing the "Update Device" button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary.
If you don't know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip1 of 'Dip-Switch A' in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP "192.168.2.205";
Select update options (Firmware + Configuration);
Press the "Execute update
When all the operations are "OK" turn off the Device;
Put Dip1 of 'Dip-Switch A' at OFF position;
Turn on the device.
At this point the configuration/firmware on the device is correctly updated.
ADFweb.com S.r.l.
firmware" button to start the upload;

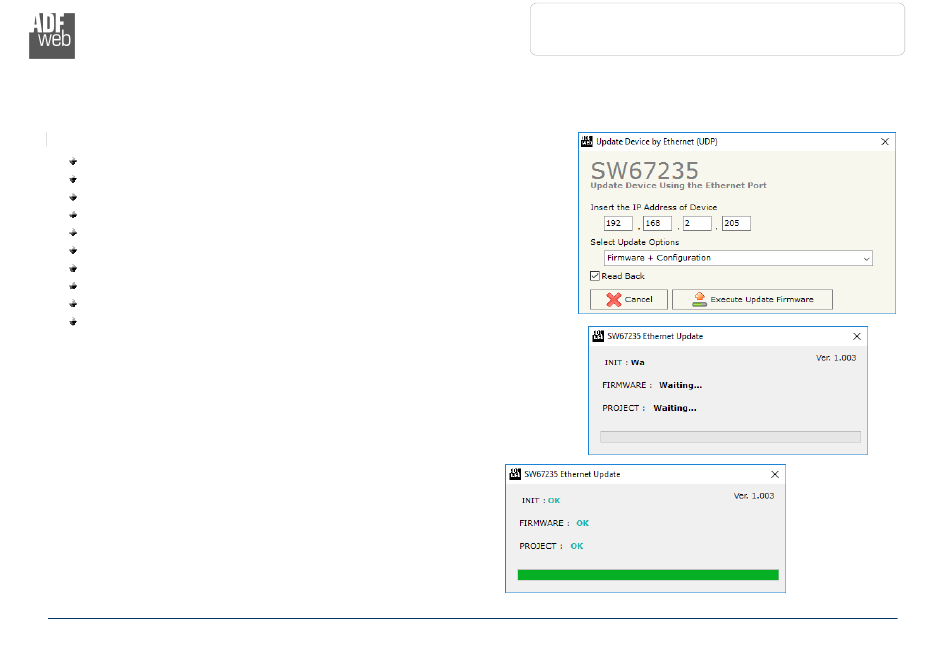

Figure 6: "Update device" windows
