Preliminary Technical Data
SOFTWARE INSTALLATION & USB
EASY START GUIDE
The evaluation software should be installed before connecting
the board to the PC via the USB cable. The software installs the
drivers necessary for the PC to recognize the evaluation board
correctly. Note that you must have administrator rights for the
Windows operating system during the entire easy start
procedure.
1.
To run the installation wizard, click on the "setup.exe"
file that comes on the CD with the evaluation board.
Follow the on-screen instructions to finalize the
installation. The PC may need to be restarted after the
installation. Restart the PC if prompted to do so.
2.
Connect the provided USB cable to the EVAL-
ADF4602EB1Z evaluation board and to an available
USB port on the computer.
3.
The PC should recognize the evaluation board as
"EVAL-ADF4602EB1Z. The Found new Hardware
Wizard in Figure 3 should appear, click Next to
proceed.

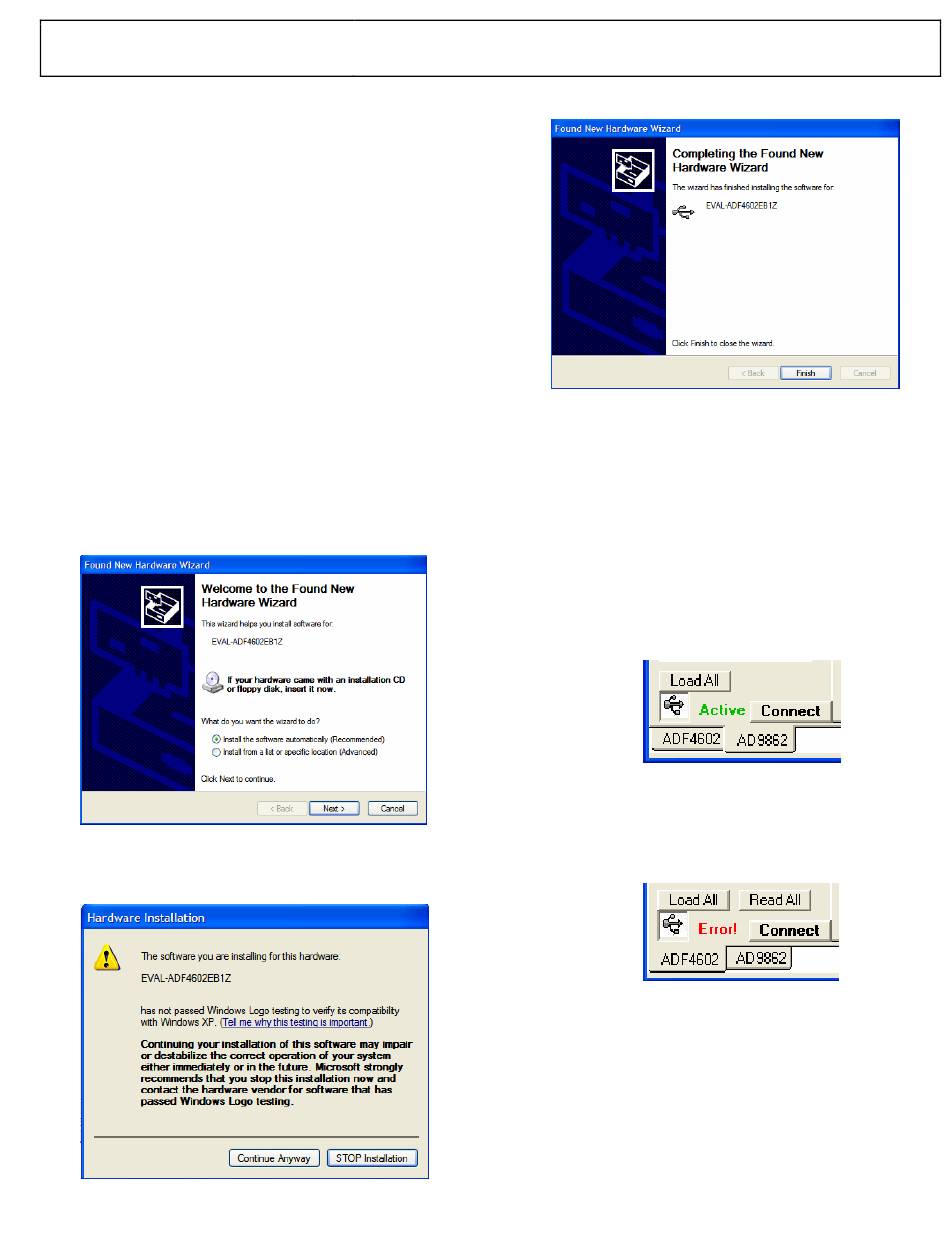

Figure 3. Found New Hardware Wizard
4.
If the Hardware Installation box in Figure 4 appears,
click Continue Anyway.
Figure 4. Hardware Installation
5.
To complete the installation, click Finish.
STARTING SOFTWARE & USB CONTROL
1.
The evaluation board software can now be started by
clicking on Start->Programs->Analog Devices-
>ADF4602->ADF4602
2.
The board selection window will appear, click OK to
proceed
3.
The main software window will appear. In the lower
left hand corner the USB should display that it is
Active as in Figure 6.
4.
If the evaluation board is not connected, a warning
box will appear EVAL-ADF4602EB1Z not detected!,
and the USB will display as not connected in the lower
left hand corner of the screen – see Figure 7 .
5.
After connecting the evaluation board, click on
Connect. The device should connect and show as
active - Figure 6.
Note: If at any stage the evaluation board is disconnected from
the PC and then re-connected, the Connect button must be
clicked before attempting to load register settings. Failure to do
so may cause the USB device and software to hang. If this
occurs, disconnect the evaluation board, reconnect and then
click Connect.
Rev. PrC | Page 5 of 37
EVAL-ADF4602EB1Z
Figure 5. Click Finish to complete
Figure 6. USB Active
Figure 7. USB Not Connected
