HMC1023LP5E Evaluation Kit User Manual
3. Setup and Installation
3.1 User Provided Equipment
In addition to the items provided in the Kit, the user must provide the following equipment
to communicate with HMC1023LP5E under test.
• DC Power Supply
• DC Cables
• Computer (PC) with Standard USB port
• Baseband differential I/Q signal source
• Baseband differential I/Q measuring equipment
• 40 MHz clock source for calibration
4
Order On-Line: www.hittite.com. For technical application questions: Tel: 978-250-3343 or apps-support@hittite.com

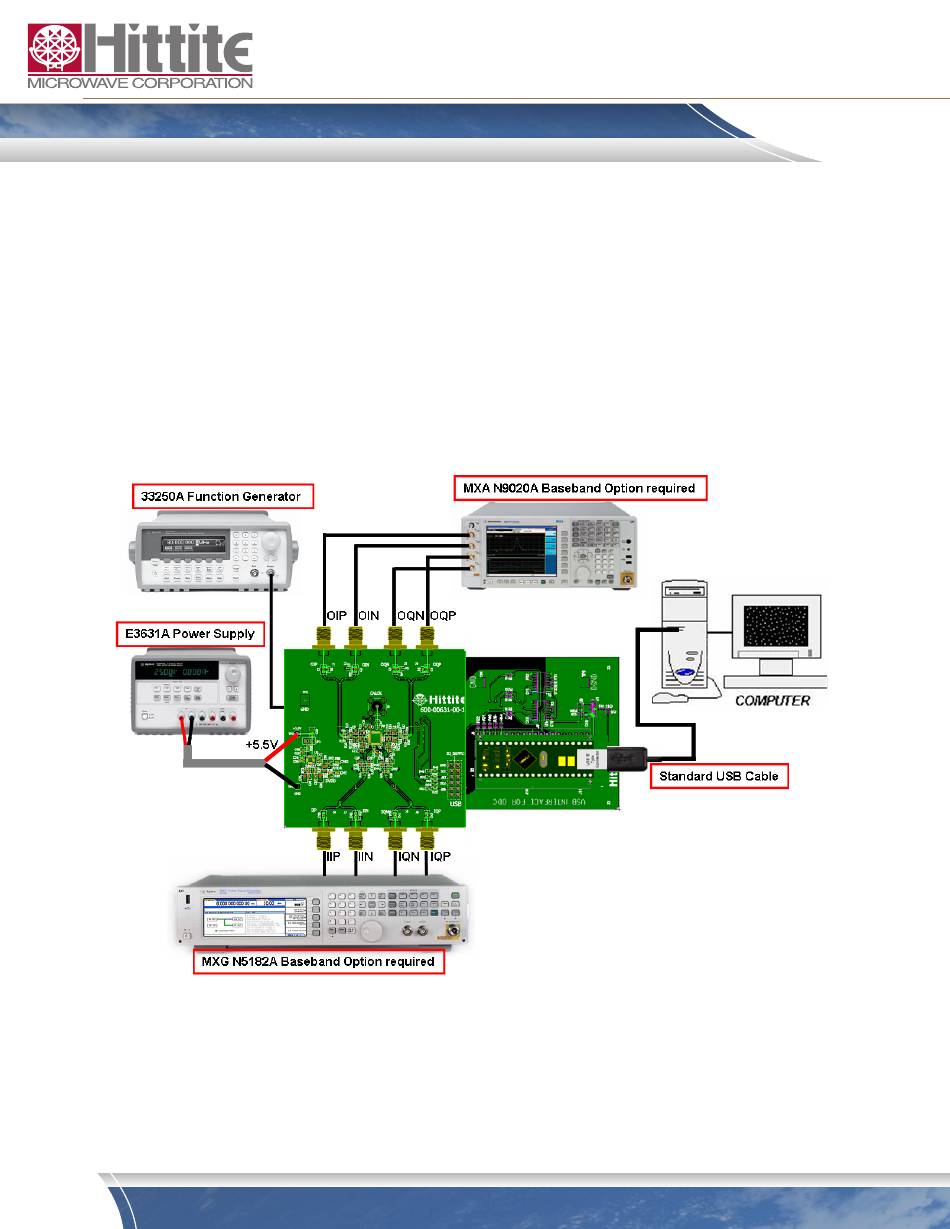

HMC1023 Eval Board Test Setup
Figure 1. Hardware Setup
