7. Using HMC1023LP5E Evaluation Software

The GUI features three main areas:

• Direct SPI access/ Direct Register access

• Ability to save or load complete register files

7.1 Quick Setup

The Quick Setup Menu allows the user to quickly:

• enable/disable the HMC1023LP5E I or Q path,

• set the passband gain,

• set the filter bandwidth,

• execute a calibration and set the filter bandwidth to an arbitrary value

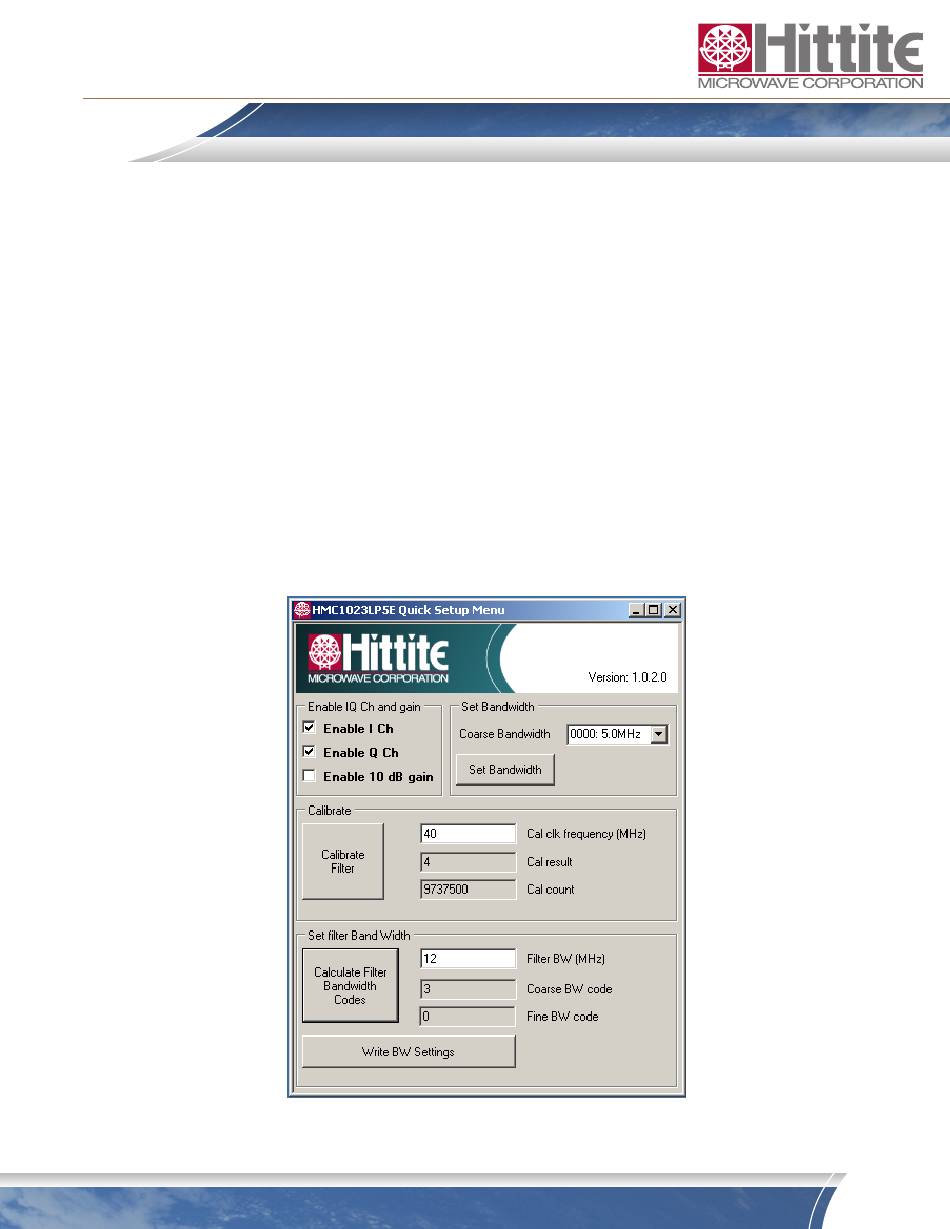

Figure 8. HMC1023LP5E Quick Setup Menu
