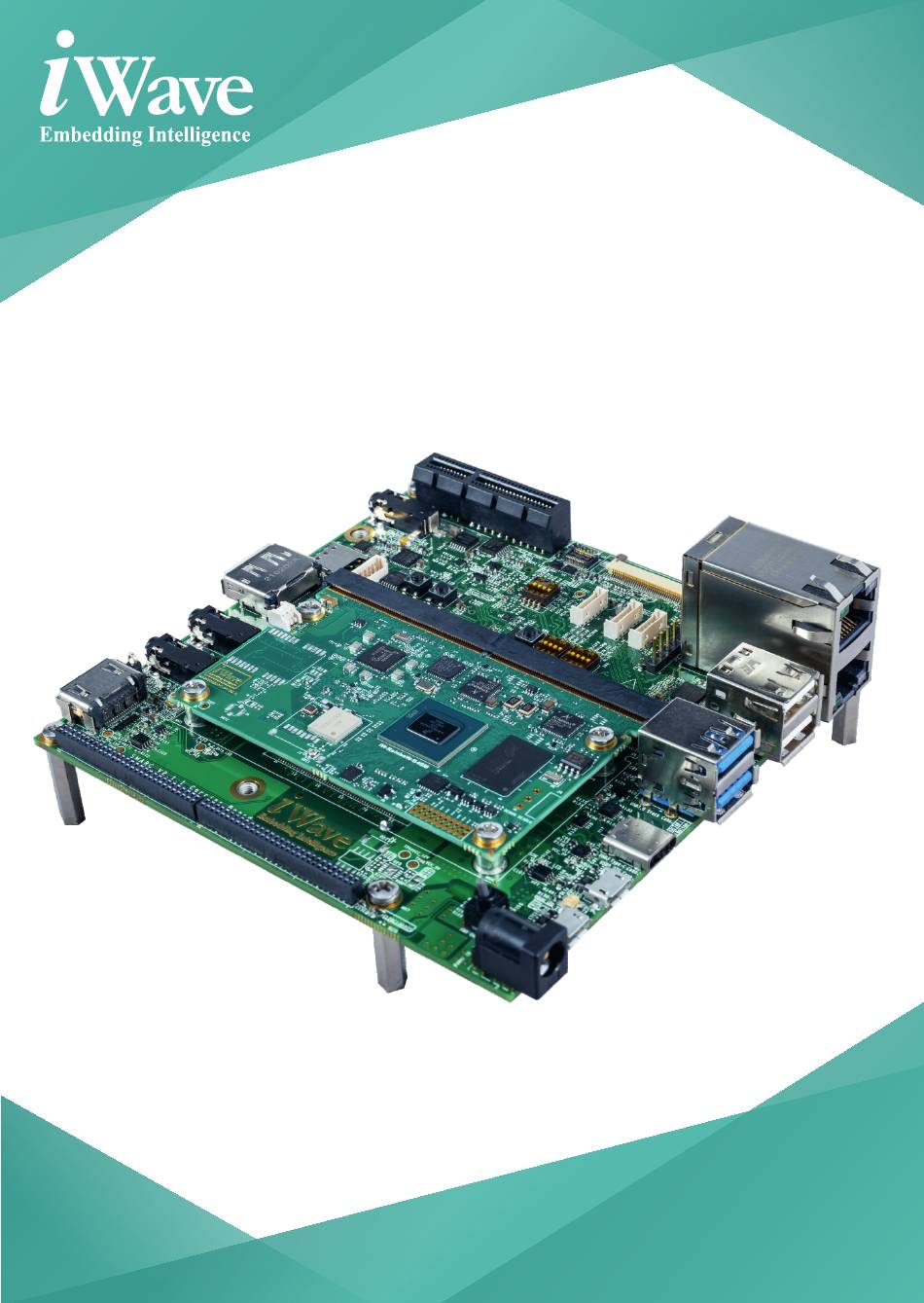

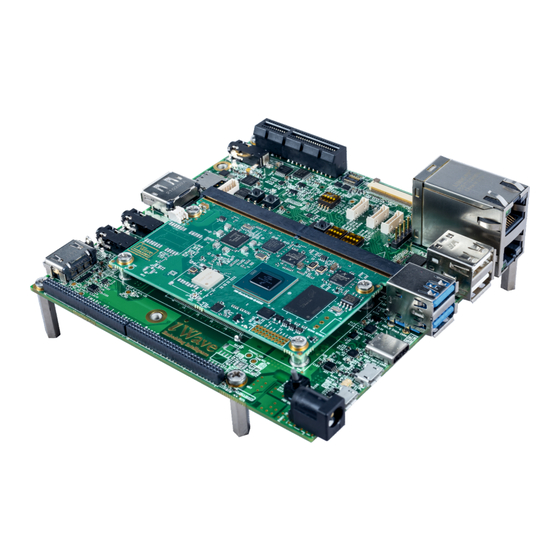

- Page 1 8M Plus SMARC Development Platform iW-RainboW-G40D Quick Start Guide...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law...
- Page 3 It provides the instructions for setting-up the Development Board from the packed box. Development Platform Description The iW-RainboW-G40D i.MX 8M Plus SMARC SOM Development platform incorporates with NXP's i.MX 8M Plus Application Processor based SMARC SOM and Carrier board with all necessary interface connectors for developing an embedded application based on NXP's i.MX 8M Plus...
- Page 4 This Development Platform is not water proof. Water damage is not covered under the warranty. Environmental Compliance iW-RainboW-G40D-i.MX 8M Plus SMARC Development Board is designed by using RoHS and REACH compliant components and manufactured on lead free production process.
-
Page 5: Quick Start Steps
Quick Start Steps Step 1 - Unpacking Remove the Development board from box and place above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Also make sure that,below Deliverables are received without any physical damage. USB OTG Cable Development Board WIFI &... -
Page 6: Quick View
Quick View SMARC SOM TOP View 1. SMARC Edge 2. LPDDR4 3. Fan Header 4. GNSS Receiver* 5.GNSS Antenna Conn. 6. Wi-Fi & BT Module 7.Wi-Fi & BT Antenna Conn. 8. i.MX 8M Plus SoC 9. JTAG Header* 10.Debugg header* BOTTOM View 11.Camera Conn.* 12.eMMC... - Page 7 Quick View Quick View 1.Power IN Jack Top View 2.USB Debug Conn. 3.USB OTG Conn. 1.Power IN Jack 4.USB Type C Conn. 2.USB Debug Conn. 5.USB 3.0 Conn. 6.SMARC MXM Conn. 3.USB OTG Conn. 7.USB 2.0 Conn. 4.USB Type C Conn. 8.Ethernet Jack 5.USB 3.0 Conn.
- Page 8 Step 2 - Read FTP Contents iW-RainboW-G40D Software Hardware Release Notes Binaries Datasheet-UserGuides Doument QuickStartGuide Documents SOM-HardwareUserGuide Software UserGuide DevKit-HardwareUserGuide Source code (opt.) DevKit-HardwareUserGuide Heatsink-Datasheet Binaries Tool Heatspreader-Datasheet PCB-CAD Files Tool Mechanical Files DevKit Contact For FTP Link : support.ip@iwavesystems.com/mktg@iwavesystems.com Before moving to next step, one must go through all the documents including Hardware User Guides and get familiar about iW-RainboW- G40D i.MX 8M Plus SOM &...
- Page 9 Step 3- Setting-Up On Board Switch Setting Make sure On-Board Switch (SW5) set properly as shown in below image for booting from eMMC. (1 0 0 0) Note : 0 - OFF 1 - ON Sw5- Boot Selection Switch Note : Refer the Hardware User Guide for detailed information of each switch.
- Page 10 Debug Port Setting Connect Type-A end of USB cable to PC and Micro-B end of USB cable to Development Platform's Debug USB Micro-AB Connector (J24) as shown below. Install the driver for Debug Port in Host PC/Laptop using the below link. https://ftdichip.com/drivers/vcp-drivers/ Setup the Debug Terminal parameters.
- Page 11 1. Do not try to connect any other power supply other than supplied along with the Development Kit. 2. Do not plug or remove the i.MX 8M Plus SMARC SOM from Carrier board with live power. 3. Contact iWave if power LEDs are not glowing.
- Page 12 PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots. iWave supports below mentioned Operating System Releases for iW- RainboW-G40D i.MX 8M Plus SMARC Development Platform. Linux 5.4.70 (or higher) A n d r o i d 1 1 .
- Page 13 Command Prompt (Android) Linux Home Screen Android Home Screen...
- Page 14 Product Name : i.MX 8 QM/QP Pico ITX SBC Processor : NXP’s i.MX 8 QM/QP SoC RAM : 4GB LPDDR4* Application : Industrial Motor Control, Sensor Fusion, Industrial IoT, Complex consumer, medical, and industrial embedded computing applications * RAM size is expandable. Contact iWave team for further details...
-
Page 15: Need More Help
Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For warranty terms, scan the QR code or go to https://www.iwavesystems.com/support/... - Page 16 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave US 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
