Intended Use

The Tape Application Sensor Kit is specifi cally designed for use on 3M-Matic™ Case Sealers.
The Tape Application Monitoring Kit is a self-contained control apparatus that identifi es a tape
related malfunction in box sealing operations. The control system continually monitors case sealing
operations and will automatically stop the 3M-Matic™ case sealer when a tape related malfunction occurs.
In addition, the control system will turn on an indicator light that is located on the control panel.
Equipped with the ability to control up to two AccuGlide™ taping heads, the unit reliably detects the
following tape application faults:
Tape did not apply to box
Tape has broken or failed to cut off
Tape supply is low
The Tape Application Monitoring Kit has been designed and tested for use with Scotch box
sealing tapes and the 3M-Matic™ line of case sealing equipment models:
200a, 800ab, 800asb, 800r, 800rks, 800rf, 7000a, 7000r, 8000a, and 8000af.

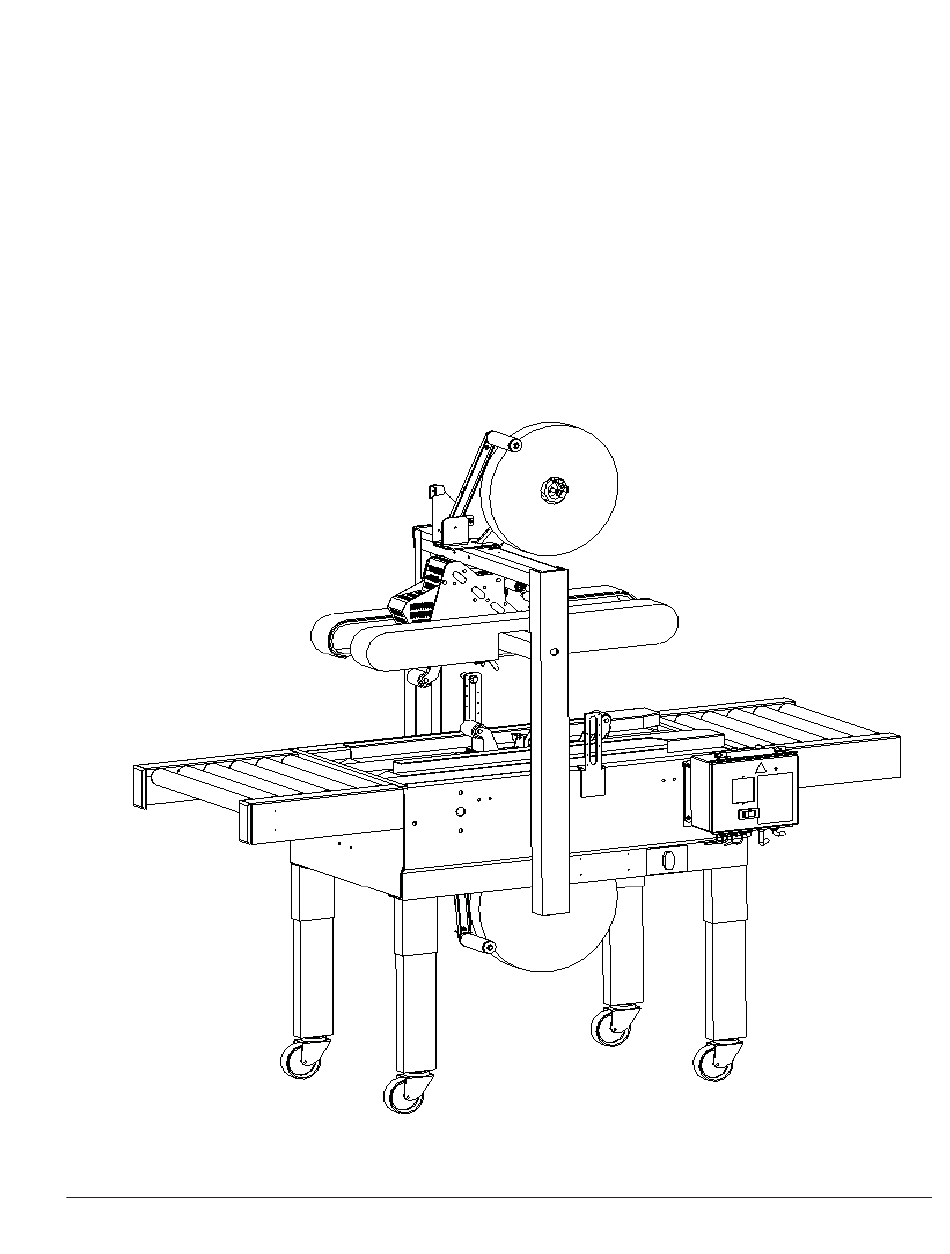

Typical Installation of Tape Application Sensor Kit on 3M-Matic™ Case Sealer
