Summary of Contents for 3M 718

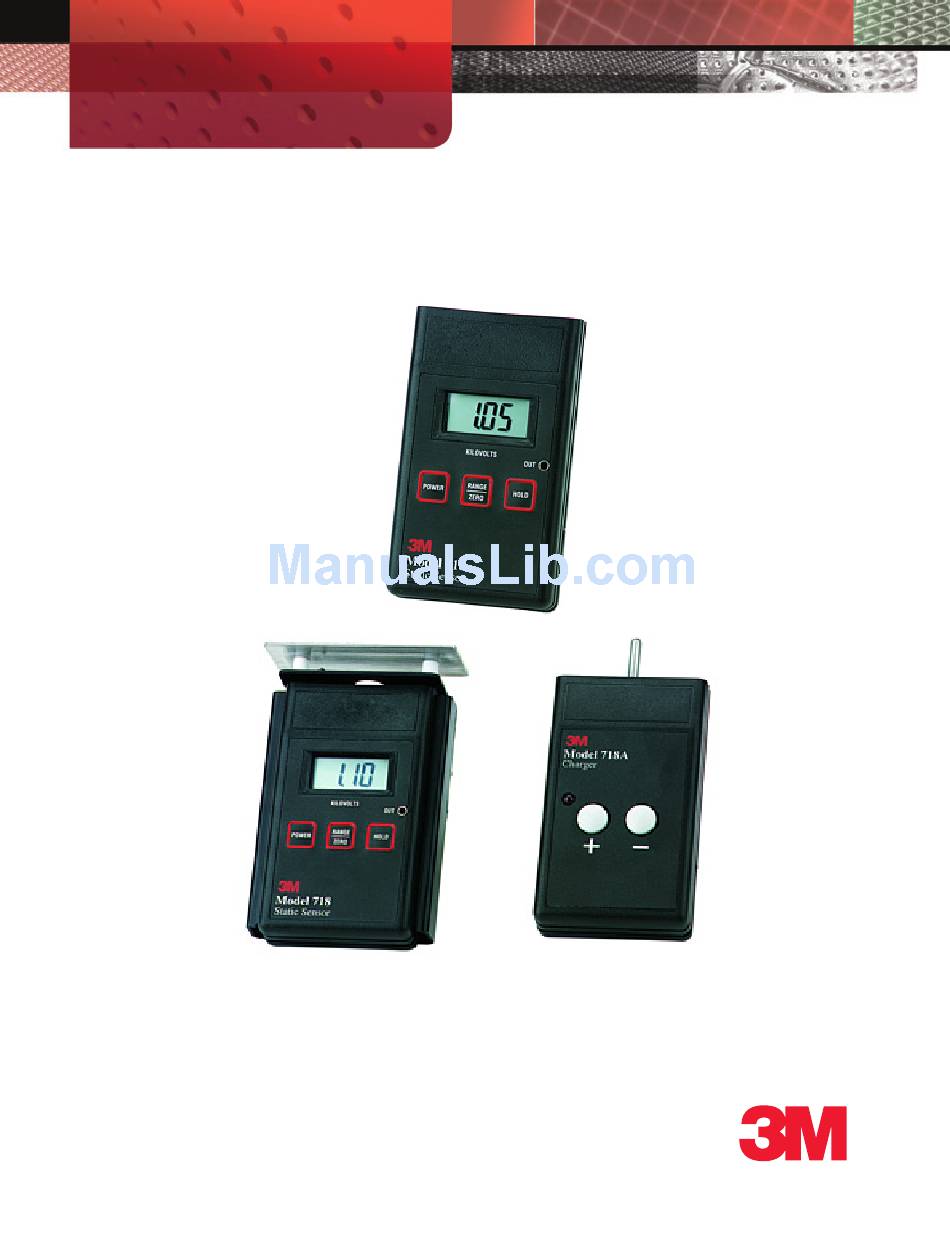

- Page 1 Static Sensor 718, ™ Air Ionizer Test Kit 718A ™ User’s Guide...
-
Page 2: Table Of Contents
Page Safety Information..................2 Description ....................3 Power Requirements and Battery Installation ........... 3 Operation of the 3M Static Sensor 718 ........... 4 ™ Operation and Use of the 3M Air Ionizer Test Kit 718A ......7 ™ Service/Calibration..................8 Physical Characteristics (All values typical) ........... -
Page 3: Safety Information
Usage of any other power source may cause damage to the instruments. • The Static Sensor 718 and Air Ionizer Test Kit 718A have no user-serviceable parts. Do not disassemble the products for any reason. UNAUTHORIZED SERVICE WILL VOID THE WARRANTY. -
Page 4: Description
1.0 Description The 3M Static Sensor 718 is a portable handheld instrument used for locating ™ and measuring electrostatic charges. It can beused to locate ESD trouble-areas, and is a valuable tool for the ESD-control engineer. Used in conjunction with... -
Page 5: Operation Of The 3M ™ Static Sensor 718
2.3 The 3M Static Sensor 718 has a Low Battery ™ indicator. Once the battery is depleted to approximately 6.5 volts, the instrument will show BAT in the display. At this time, the Static Sensor 718 will not produce accurate results and the battery should be replaced. - Page 6 Replace the cover. 2.3 The Static Sensor 718 has a Low Battery indicator. Once the battery is depleted to approximately 6.5 volts, the instrument will show BAT in the display. At this time, the Static Sensor 718 will not produce accurate results and the battery should be replaced.
- Page 7 3.6.3 Measurements from Greater than One Inch (2.54 cm) Away: in the event that a one inch separation between object-to-be measured and the Static Sensor 718 cannot be achieved, it is possible to get approximate readings. Please contact your 3M representative for additional...
-
Page 8: Operation And Use Of The 3M ™ Air Ionizer Test Kit 718A

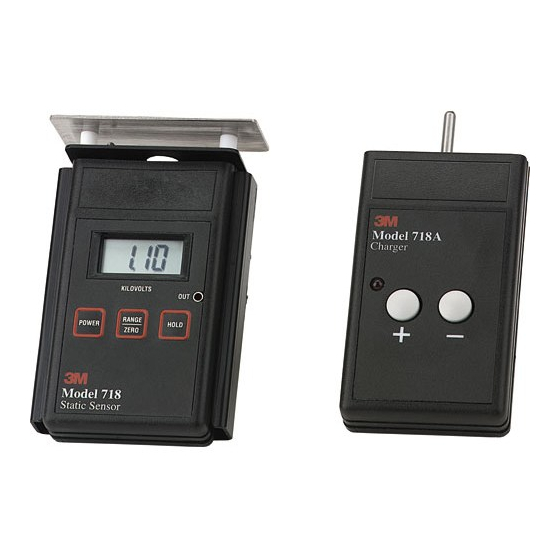

ESD S3.1 and draft standard ANSI/ESD SP3.3 if the Air Ionizer Test Kit 718A is used to perform verification testing on ionizer performance. 4.1 Assembly: slide the charge plate over the Static Sensor 718 until it stops. The charge plate slides onto the lower groove, on the sides of the Static Sensor 718. -
Page 9: Service/Calibration
5.0 Service/Calibration 5.1 Service and Repair: in the event that you believe the Static Sensor 718 or the 3M Air Ionizer Test Kit 718A is in need of repair, please contact your ™... - Page 10 5.5.2 Connect the stand to ground. 5.5.3 Turn on the Static Sensor 718 and set it to the low range. 5.5.4 Ground the plate. Zero the display. 5.5.5 Remove the ground from the plate, and connect it to the high voltage...
-
Page 11: Physical Characteristics (All Values Typical)
This screw should adjust the reading on the display. Once the display has been adjusted to read 1.000, the low range of the 3M Static ™ Sensor 718 is now calibrated. -
Page 12: Parts Included
Static Sensor 718 - continued ™ Description Typical Value Voltage Output Jack 3/32 in. (2.5 mm) monophone Tip: signal Sleeve: ground Voltage Output 1/1000 of measured voltage @ low range 1/10,000 of measured voltage @ high range Automatic Shut-off 20 minutes after last switch activity Distance Indicator LED targets. -
Page 13: Regulatory Information
Regulatory Information WEEE Statement The following information is only for EU-members States: The mark shown to the right is in compliance with Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. -
Page 14: Warranty
3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
