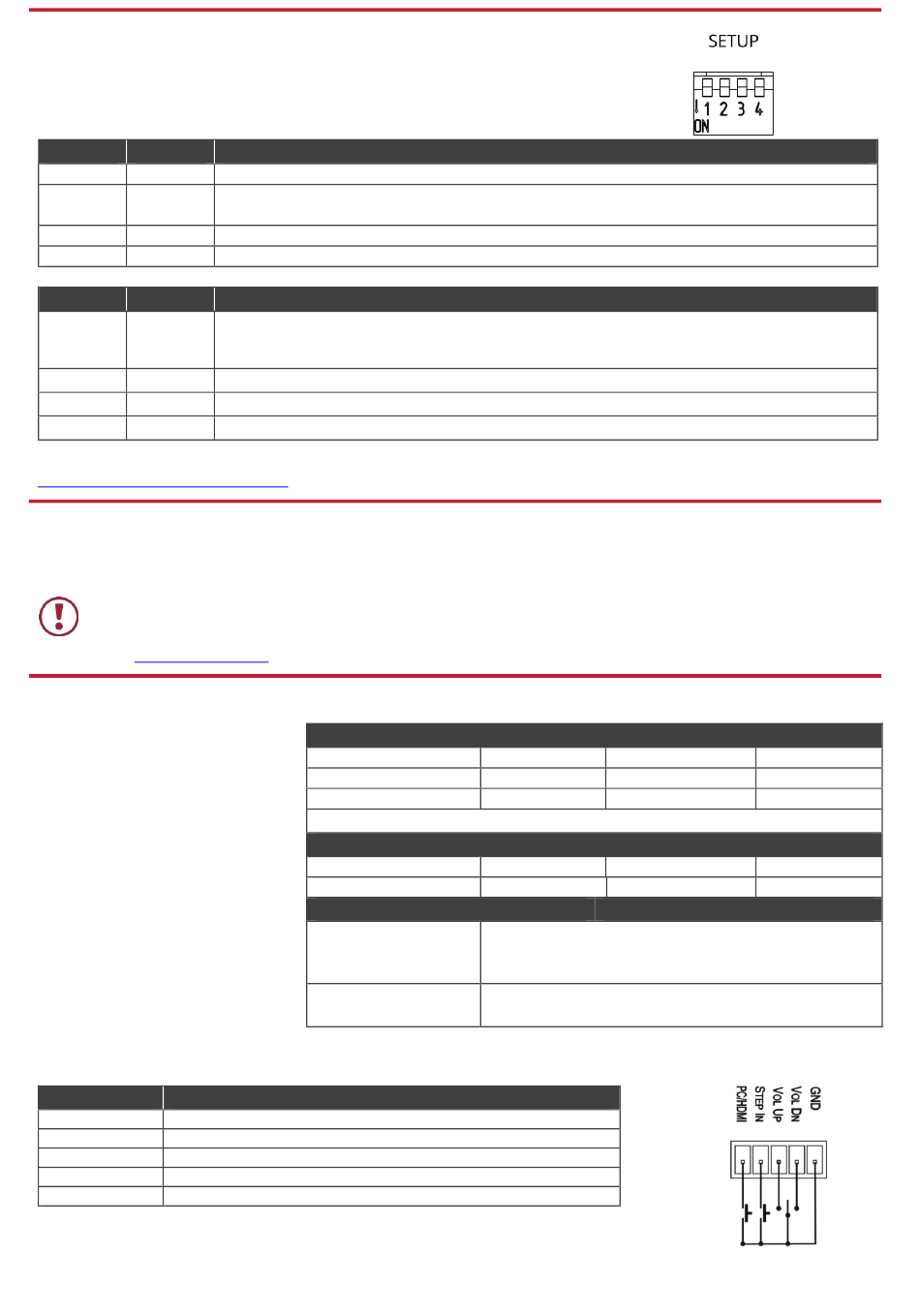

DIP-Switch Settings

DIP-switches 1 to 4 are set to OFF (up) by default.
DIP 1
DIP 2
OFF
OFF
OFF
ON
ON
OFF
ON
ON
DIP 3
DIP 4
OFF
OFF
OFF
ON
ON
OFF
ON
ON
For optimum range and performance use the recommended Kramer cables available at
www.kramerav.com/product/VP-429H2.

Step 5: Connect the power

Connect the 12V DC power adapter to the VP-429H2 and plug the adapter into the mains.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the Kramer Electronics power supply that is provided with the unit.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
See
www.KramerAV.com

Step 6: Operate the VP-429H2

Operate VP-429H2 via:
Front panel buttons
Remote control switches
Embedded web pages via
the Ethernet
Remotely, by RS-232
serial commands
transmitted by a touch
screen system, PC, or
other serial controller
Use the Remote Control Switches to remotely select an input and activate an input via STEP-IN button
Momentarily connect the desired pin to the GND pin to perform the following functions:
Pin Name
Function
PC/HDMI
Press to cycle through the inputs.
STEP IN
Activate the step-in.
VOL UP
Increase the volume.
VOL DN
Decrease the volume.
GND
Connect to the common side of the switches.
Video Input Selection Method
Last connected switching mode: The last physically-connected input has priority.
Priority switching mode: When the input sync signal is lost, the input with a live signal and next in
priority is selected automatically (as set in the Video & Audio Settings web page)
Manual input selection
Manual input selection
Audio Input Selection Method (for HDMI and DP)
Automatic audio selection:
If embedded audio is detected, use it as the audio source.
If embedded audio is not detected, use the analog audio input as the audio source.
N/A
Use the embedded audio as the audio source
Use the analog audio input as the audio source
for updated safety information.
RS-232 Control / Protocol 3000
Baud Rate:
Data Bits:
Stop Bits:
Example: (Mute the Video on the HDMI output): #VMUTE 1,0<CR>
Default Ethernet Parameters
IP Address:
Subnet mask:
Reset
Output Resolution
(Front Panel Buttons):
Factory Reset
(Rear Panel Button):
115,200
Parity:
8
Command Format:
1
192.168.1.39
Gateway Address:
255.255.0.0
TCP Port #:
Press and hold HDMI IN 1 and HDMI IN 2 SELECT buttons
simultaneously for a few seconds to reset the output
resolution to 1080p.
Short press to reboot, long press to reset the device to
factory default parameters.
None
ASCII
192.168.1.1
5000
