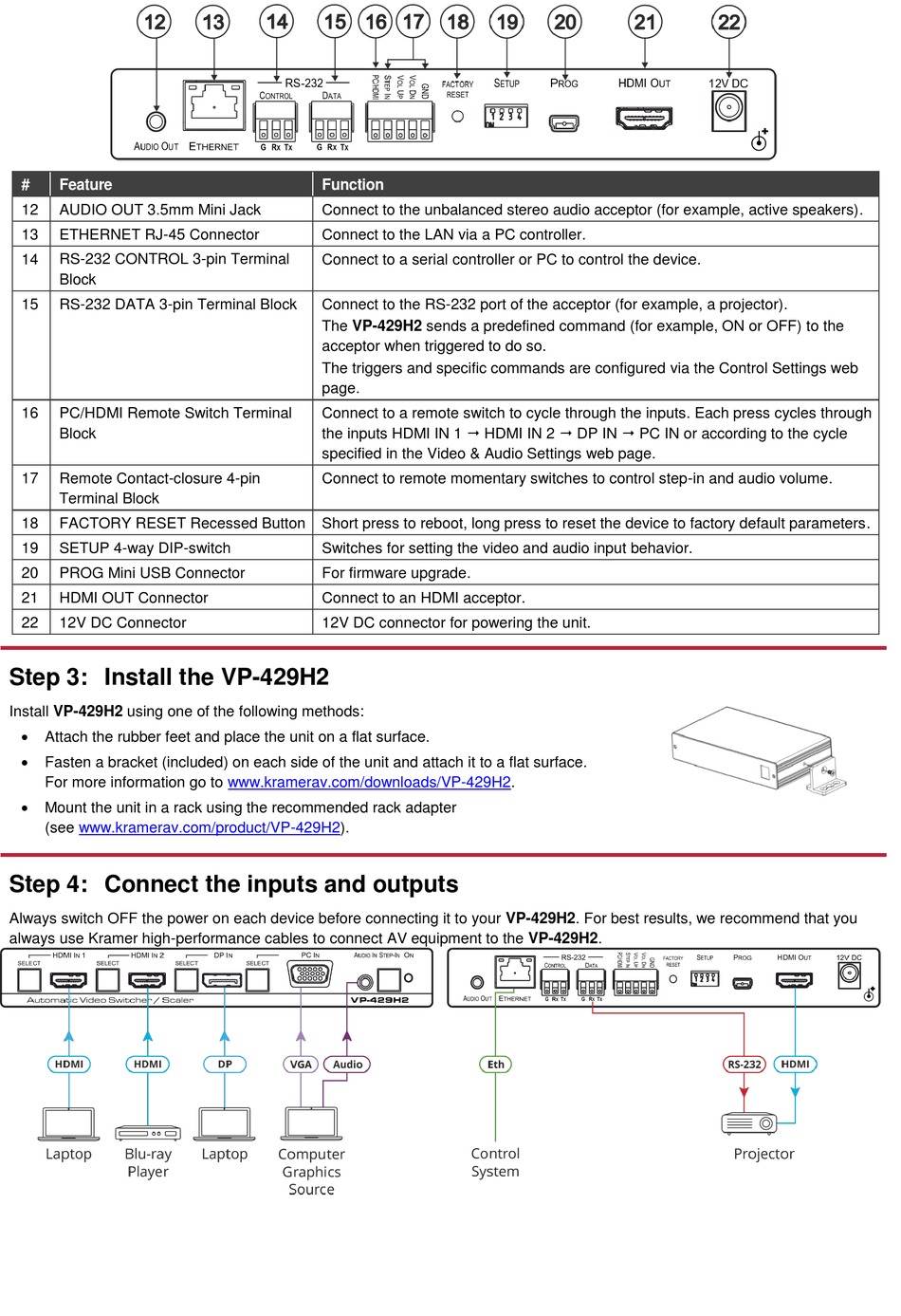

# Feature
12 AUDIO OUT 3.5mm Mini Jack
13 ETHERNET RJ-45 Connector
14 RS-232 CONTROL 3-pin Terminal
Block
15 RS-232 DATA 3-pin Terminal Block
16 PC/HDMI Remote Switch Terminal
Block
17 Remote Contact-closure 4-pin
Terminal Block
18 FACTORY RESET Recessed Button
19 SETUP 4-way DIP-switch
20 PROG Mini USB Connector
21 HDMI OUT Connector
22 12V DC Connector

Step 3: Install the VP-429H2

Install VP-429H2 using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/VP-429H2.
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VP-429H2).

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-429H2. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to the VP-429H2.
Function
Connect to the unbalanced stereo audio acceptor (for example, active speakers).
Connect to the LAN via a PC controller.
Connect to a serial controller or PC to control the device.
Connect to the RS-232 port of the acceptor (for example, a projector).
The VP-429H2 sends a predefined command (for example, ON or OFF) to the
acceptor when triggered to do so.
The triggers and specific commands are configured via the Control Settings web
page.
Connect to a remote switch to cycle through the inputs. Each press cycles through
the inputs HDMI IN 1  HDMI IN 2  DP IN  PC IN or according to the cycle
specified in the Video & Audio Settings web page.
Connect to remote momentary switches to control step-in and audio volume.
Short press to reboot, long press to reset the device to factory default parameters.
Switches for setting the video and audio input behavior.
For firmware upgrade.
Connect to an HDMI acceptor.
12V DC connector for powering the unit.
