VP-429H2 Quick Start Guide
This guide helps you install and use your VP-429H2 for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box

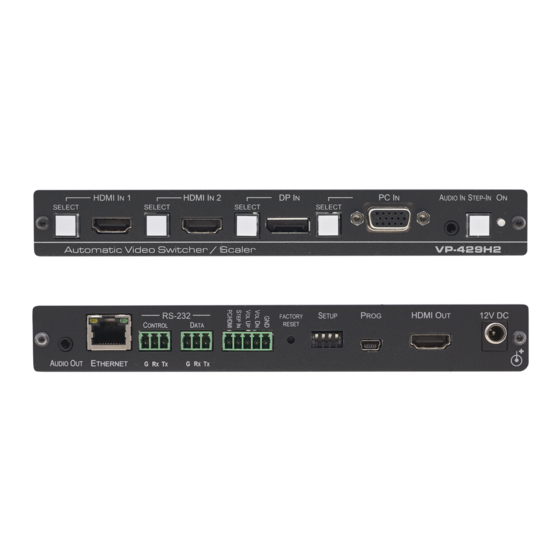

VP-429H2 Automatic Video Switcher/Scaler
1 Power adapter and cord

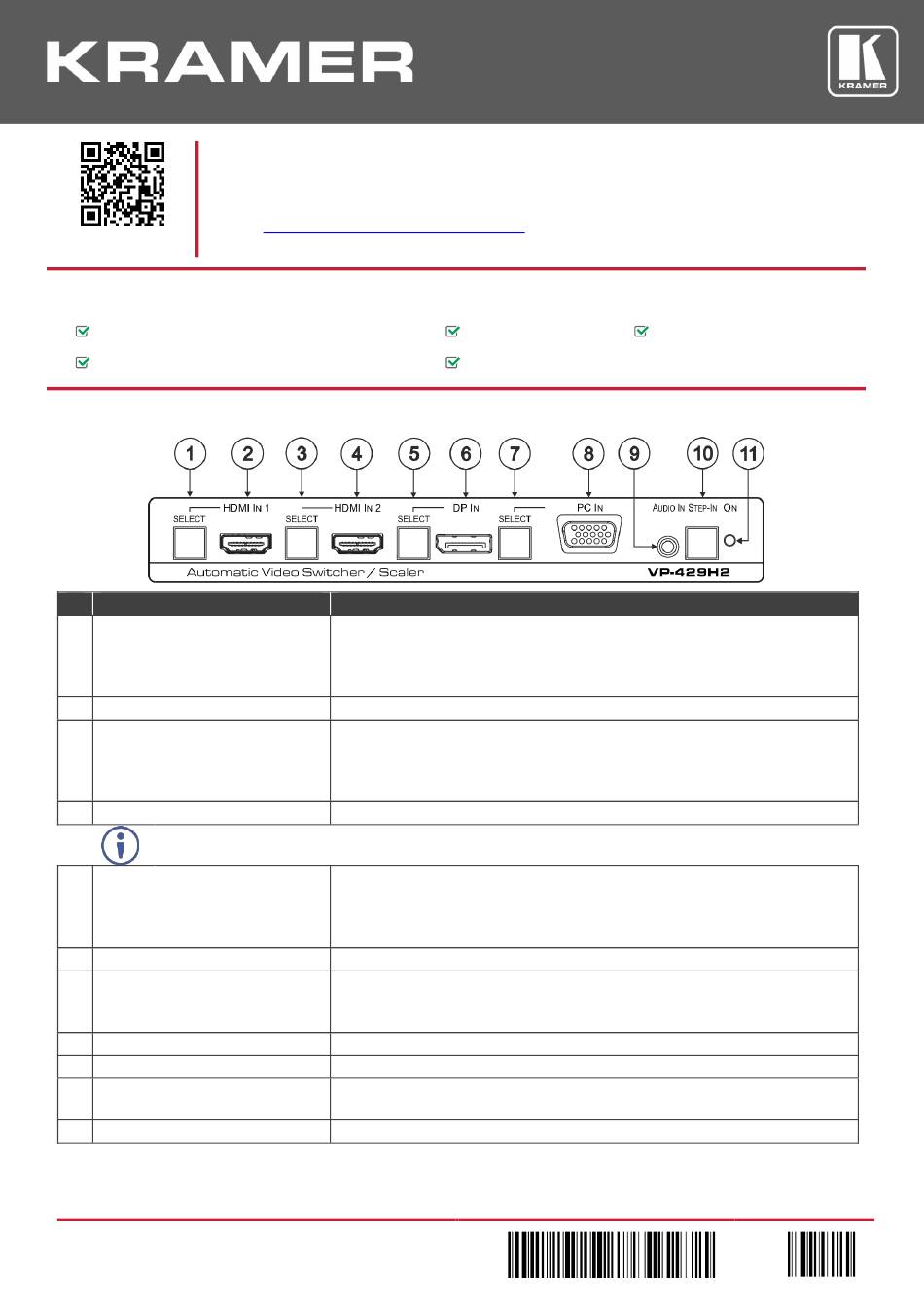

Step 2: Get to know your VP-429H2

# Feature
1 HDMI IN 1 SELECT Button
2 HDMI IN 1 Connector
3 HDMI IN 2 SELECT Button
4 HDMI IN 2 Connector
Press and hold HDMI IN 1 and HDMI IN 2 SELECT buttons simultaneously for a few seconds to reset the
output resolution to 1080p.
5 DP IN SELECT Button
6 DP IN DisplayPort Connector
7 PC IN SELECT Button
PC IN 15-pin HD Connector
8
9 AUDIO IN 3.5mm Mini Jack
10 STEP-IN Button
11 ON LED
VP-429H2 Quick Start
www.kramerav.com/downloads/VP-429H2
Function
Press to select the HDMI IN 1 input. When HDMI IN 1 is selected, the button lights
and indicates the selected audio:
Red – External audio from the analog Audio IN is selected.
Green – Embedded audio from HDMI IN 1 is selected.
Connect to an HDMI source.
Press to select the HDMI IN 2 input. When HDMI IN 2 is selected, the button lights
and indicates the selected audio:
Red – External audio from the analog Audio IN is selected.
Green – Embedded audio from HDMI IN 2 is selected.
Connect to an HDMI source.
Press to select the DP input. When DP is selected, the button lights and indicates
the selected audio:
Red – External audio from the analog Audio IN is selected.
Green – Embedded audio from DP IN is selected.
Connect to a DisplayPort source.
Press to select the PC IN input. When PC IN is selected, the button lights red.
Press and hold PC IN SELECT button for a few seconds to auto-adjust the VGA
signal.
Connect to the VGA source.
Connects to an unbalanced stereo audio source.
Press to take control of the input that this device is connected to on a compatible
switcher.
Lights green when the device is powered on.
