Summary of Contents for Kramer VP-420
- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-420, VP-421 HD Scaler P/N: 2900-000506 Rev 5...
-
Page 3: Table Of Contents
Connecting the VP-420, VP-421 Operating the VP-420, VP-421 Using the Front Panel Buttons Using the OSD Technical Specifications Figures Figure 1: VP-420 PC/HD Scaler Figure 2: VP-421 PC/HD Scaler Figure 3: Connecting the VP-420 PC/HD Scaler VP-420, VP-421 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-420, VP-421 PC/HD Scaler, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
A freeze button RGBHV or component video input and/or output The VP-421 is identical to the VP-420 with the addition of a DVI output port. The machines are fed from an external 5V DC source, making them suitable for field operation. -
Page 8: Defining The Vp-420 Pc/Hd Scaler

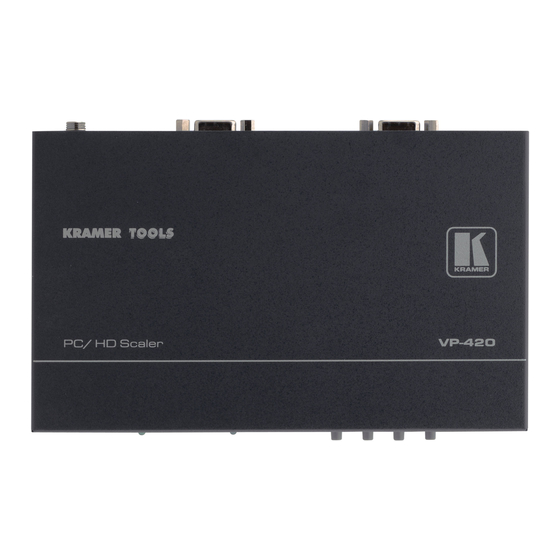

Defining the VP-420 PC/HD Scaler This section defines the VP-420. Figure 1: VP-420 PC/HD Scaler Feature Function ON LED Lights when the unit is powered on COMPONENT OUT LED Lights when component video is output MENU button Press to enter/escape the on-screen display (OSD) menu. -
Page 9: Defining The Vp-421 Pc/Hd Scaler
Connects to computer graphics or HDTV acceptor connector DVI OUTPUT DVI connector Connects to DVI acceptor PC/HD INPUT 15-pin HD Connects to computer graphics or HDTV source connector 5V DC +5V DC connector for powering the unit VP-420, VP-421 - Overview... -
Page 10: Connecting The Vp-420, Vp-421
VP-420, VP-421. After connecting your VP-420, VP-421, connect its power and then switch on the power to each device. To connect the VP-420, VP-421 as illustrated in the example in Figure 1. Connect a computer graphics or HDTV source to the PC/HD INPUT 15-pin HD connector. -
Page 11: Figure 3: Connecting The Vp-420 Pc/Hd Scaler
Figure 3: Connecting the VP-420 PC/HD Scaler VP-420, VP-421 - Connecting the VP-420, VP-421... -
Page 12: Operating The Vp-420, Vp-421
Operating the VP-420, VP-421 The VP-420, VP-421 is operated directly via the front panel buttons, and via the Section 5 OSD menu (see .2). Using the Front Panel Buttons During normal operation (without the OSD), the front panel buttons perform the following functions: ... - Page 13 Resets the device to its factory default parameters and automatically RESET senses the input and output devices INFORMATION Displays the source, input and output resolutions and the software version EXIT Select to exit the OSD VP-420, VP-421 - Operating the VP-420, VP-421...
- Page 14 Adjusts the length of time in seconds the OSD 0–100 appears on the screen BACKGROUND Adjusts the shade of the OSD background from 0–8 black to transparent EXIT Select to exit to the Main Menu VP-420, VP-421 - Operating the VP-420, VP-421...
-
Page 15: Technical Specifications
PROCESSING DELAY: 3 frames CONTROLS: Front panel buttons, ON and COMPONENT OUTPUT LEDs POWER CONSUMPTION: 5V DC, 800mA (VP-420), 1A (VP-421) OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F) STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F) HUMIDITY: 10% to 90%, RHL non-condensing 19cm x 13.5cm x 2.5cm (7.5”... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
