Page 2

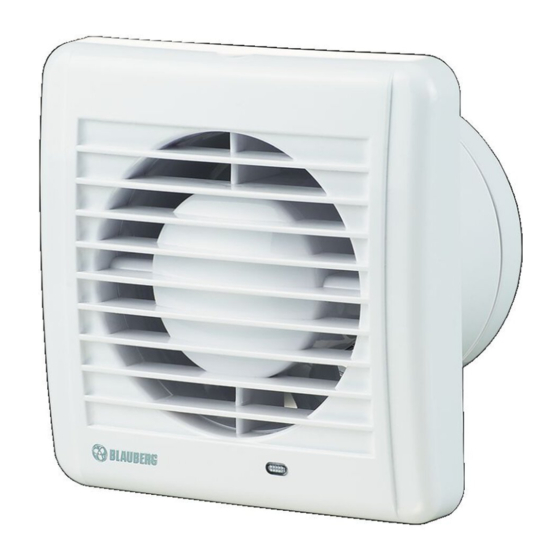

BLAUBERG Company is happy to offer your attention a new high quality Blauberg Aero fan. The solid team of high qualified professionals with many years of working experience, technological innovations in design and production, high quality components and materials from the top worldwide producers have become the precondition for the best fan in its class.
Page 3
Tables 1, 2, 3 and in Fig. 1 and 2. Table 1 Noise Maximum air flow Rated power [W] RPM [min ] Model level [m /h] [dBA] Aero 100 2300 Aero 125 2400 Aero150 2400 Aero Still 100 1900 Aero Still 125 1900 Aero Still 150...
Page 5
Operation guidelines The fan is connected to 220...240 V/50 Hz single phase AC mains and is designed for continuous operation without disconnection from the electric mains. Airflow direction must be in compliance with the direction of the arrow on the fan casing. The fan is rated for operation at the ambient temperature ranging from +1 °C up to +45 °C.
Page 6
The unit is not allowed for use by children and persons with reduced physical, mental or sensory capacities, without proper practical experience or expertise, unless they are controlled or instructed on the product operation by the person(s) responsible for their safety. Supervise the children and do not let them play with the unit.
Page 7
Installation and set up The fan mounting sequence is shown in Fig. 8 9. The fan wiring diagrams are shown in Fig. 10 16. Figure 4 Figure 3 Figure 5...
Page 9
Wiring diagrams and operation algorithms of the fan Aero _____ Figure 10 Fan does not run Circuit breaker closing Fan runs Circuit breaker opening S – external switch QF – automatic circuit breaker Aero _____S Figure 11 Fan does not run Pull the cord switch Fan runs Pull the cord switch...
Page 10
Figure 12 Aero _____T Fan does not run Circuit breaker closing Fan runs Circuit breaker closing Turn-off delay 2min timer activation 30min (2…30 minutes) S – external switch QF – automatic circuit breaker Figure 13 Aero _____ST Fan does not run Pull the cord switch Fan runs 2min...
Page 11
Figure 14 Aero _____H 2min 30min S – external switch QF – automatic circuit breaker Fan does not run Circuit breaker closing Humidity exceeds set point Fan runs Fan runs Circuit breaker opening Humidity is below set point Humidity exceeds set Turn-off delay point timer activation...
Page 12
Figure 15 Aero _____SH 2min 30min QF – automatic circuit breaker Fan does not run Circuit breaker closing Humidity exceeds set point Fan runs Fan runs Circuit breaker opening Humidity is below set point Humidity exceeds set Turn-off delay point timer activation (2…30 minutes) Fan runs...
Page 13
Figure 16 Aero _____IR Fan does not run Motion detected Fan runs No motion detected 2min 30min Turn-off delay timer activation QF – automatic circuit breaker (2…30 minutes) Figure 17 WARNING! The timer circuit is live! Disconnect the fan from power supply prior to any adjustment operations.The fan delivery set includes a...
Page 14
Technical maintenance Disconnect the fan from power supply prior to maintenance and servicing operations. The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. To clean the fan, wipe its surfaces with a cloth or a brush wetted in a mild soap solution, then wipe the surfaces dry .
Page 15
CAUTION!!! To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment paperwork certifying the purchase.In the event that the sale date stamp is not available warranty period is calculated from the manufacturing date.
Page 16
The warranty repair does not include: routine technical maintenance • unit installation/dismantling • unit setup • To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment paperwork certifying the purchase. The unit model must comply with the one stated in the user's manual.
Page 17
flood, earthquake, war, hostilities of any kind, blockades). Missing seals if provided by the user's manual. • Failure to submit the user's manual with the unit purchase date • stamp. Missing payment paperwork certifying the unit purchase. •...
Page 20
Aero Aero Still PURCHASE DATE MANUFACTURE DATE QUALITY INSPECTOR'S STAMP SELLER The fan is recognized as serviceable. We hereby declare that the product complies with the protection requirements of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
