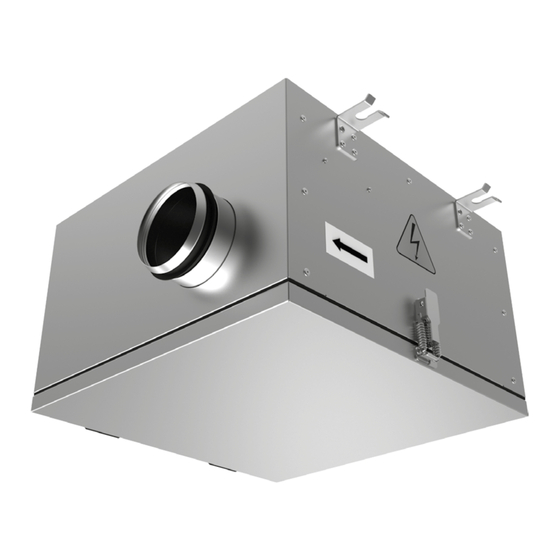

Centrifugal duct fan in sound insulated casing

Advertisement

Quick Links

Centrifugal duCt fan in sound insulated Casing
ISO-RB
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISO-RB Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Ventilatoren ISO-RB Series

  • Page 1 Centrifugal duCt fan in sound insulated Casing ISO-RB USER’S MANUAL...
  • Page 2: Table Of Contents

    iso-rB www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................6 Installation and connection ..............................6 Connection to power mains ..............................8 Control .........................................
  • Page 3 iso-rB www.blaubergventilatoren.de of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands. Never touch the unit when barefoot. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
  • Page 4: Purpose

    iso-rB www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.
  • Page 5: Technical Data

    iso-rB www.blaubergventilatoren.de TECHNICAL DATA The unit is rated as a Class I electrical appliance. Unit voltage [V/50 (60) Hz] 1~ 230 1~ 230 1~ 230 1~ 230 1~ 230 1~ 230 1~ 230 3~ 400 1~ 230 1~ 230 1~ 230 3~230 3~400 Power [W] Current [A] 0.25...
  • Page 6: Unit Design And Operating Principle

    iso-rB www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE The fan casing is made of aluzinc. For easy installation and operation, the top cover of the fan is secured with a special lock. The casing is heat- and sound-insulated with a 50 mm layer of non-flammable mineral wool. To ensure better noise absorption, the inner surface of the insulation is made of a perforated metal sheet.
  • Page 7 iso-rB www.blaubergventilatoren.de Fan and remote terminal box installation sequence • Before installation, lay the wires and cables necessary to connect the fan to the mains. • Minimal distance from the fan casing to the wall is 300 mm. • Fasteners for fan mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the «Technical data»...
  • Page 8: Connection To Power Mains

    iso-rB www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 9: Technical Maintenance

    iso-rB www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. The impeller blades require thorough cleaning once in 6 months.
  • Page 10: Manufacturer's Warranty

    iso-rB www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 11: Certificate Of Acceptance

    iso-rB www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal duct fan in sound insulated casing Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 12 www.blaubergventilatoren.de B143-1EN-02...
