Sequential prophet 5 User Manual page 14

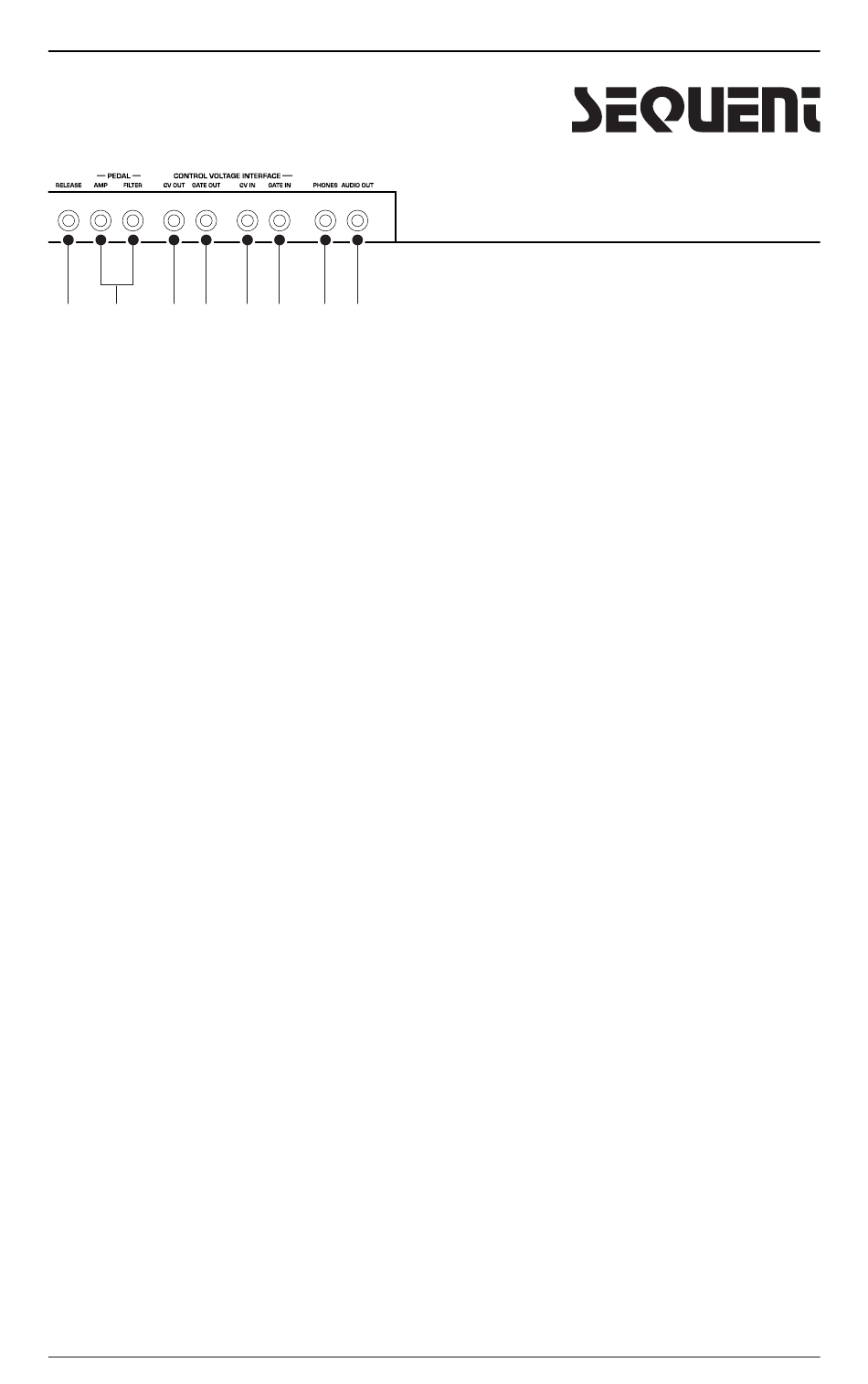

4 5 6 7 8 9 10 11 12
Standard ¼ inch connector. This jack outputs a
7. Control Voltage Out—
0- +5V signal for interfacing with modular synthesizers and other devices
that support this type of connectivity. It is configured for 1-volt-per-
octave operation for gear that recognizes that standard. The CV output
tracks the last note played on the Prophet-5 keyboard.
Standard ¼ inch connector. This jack outputs a 15-volt
8. Gate Out—
on/off signal typically used to gate the envelopes of an external synth
that supports this type of connectivity. The Gate Out signal is triggered
whenever a key is pressed on the Prophet-5.
Standard ¼ inch connector. This jack accepts
9. Control Voltage In—
a 0 to + 5V signal for interfacing with modular synthesizers and other
devices that support this type of connectivity. They are configured for
1-volt-per-octave operation for gear that recognizes that standard. A CV
In signal affects only a single voice of the Prophet-5.
Standard ¼ inch connector. This jack accepts a 1.5 to
10. Gate In—
15-volt on/off signal to gate the envelopes of a single voice on the
Prophet-5. Whenever a ¼ inch connector is inserted into the rear-panel
jack on the Prophet-5, its keyboard polyphony is reduced to
gate in
4 voices. The envelopes of the fifth voice are triggered by the gate in
signal.
¼ inch stereo headphone jack. Headphone volume is
11. Phones —
controlled by the knob on the front panel.
volume
Unbalanced, ¼ inch audio output.
12. Audio Out—
Prophet-5 User's Guide Rear Panel Connections 3
