3.1.9 Connecting a Temperature Sensor

The temperature controller in the ITC4000 can be used with the following temperature sensors:
NTC thermistor, AD590, AD592, LM35, LM335, LM235, LM135, PT100, and PT1000.
The setting and measurement range of thermistors is 100 Ω to 100 kΩ (Low range) and 1 kΩ to
1 MΩ (High range). The displayed temperature of the used thermistor and the temperature set
point range are dependent on the sensor parameters.
If one of the other sensor types is used, the measurement range is -150 °C to +150 °C.
The actual control range and the accuracy of the displayed temperature depend on the oper-
ating range and the tolerance of the used sensor, and on the individual thermal setup.
The temperature sensor is connected to the 17W2 DSUB jack "TEC OUTPUT" (R16,
elements at the rear panel
Attention
Do not connect any sensor pin to the TEC element pins A1 or A2, otherwise the connected
components may be damaged!

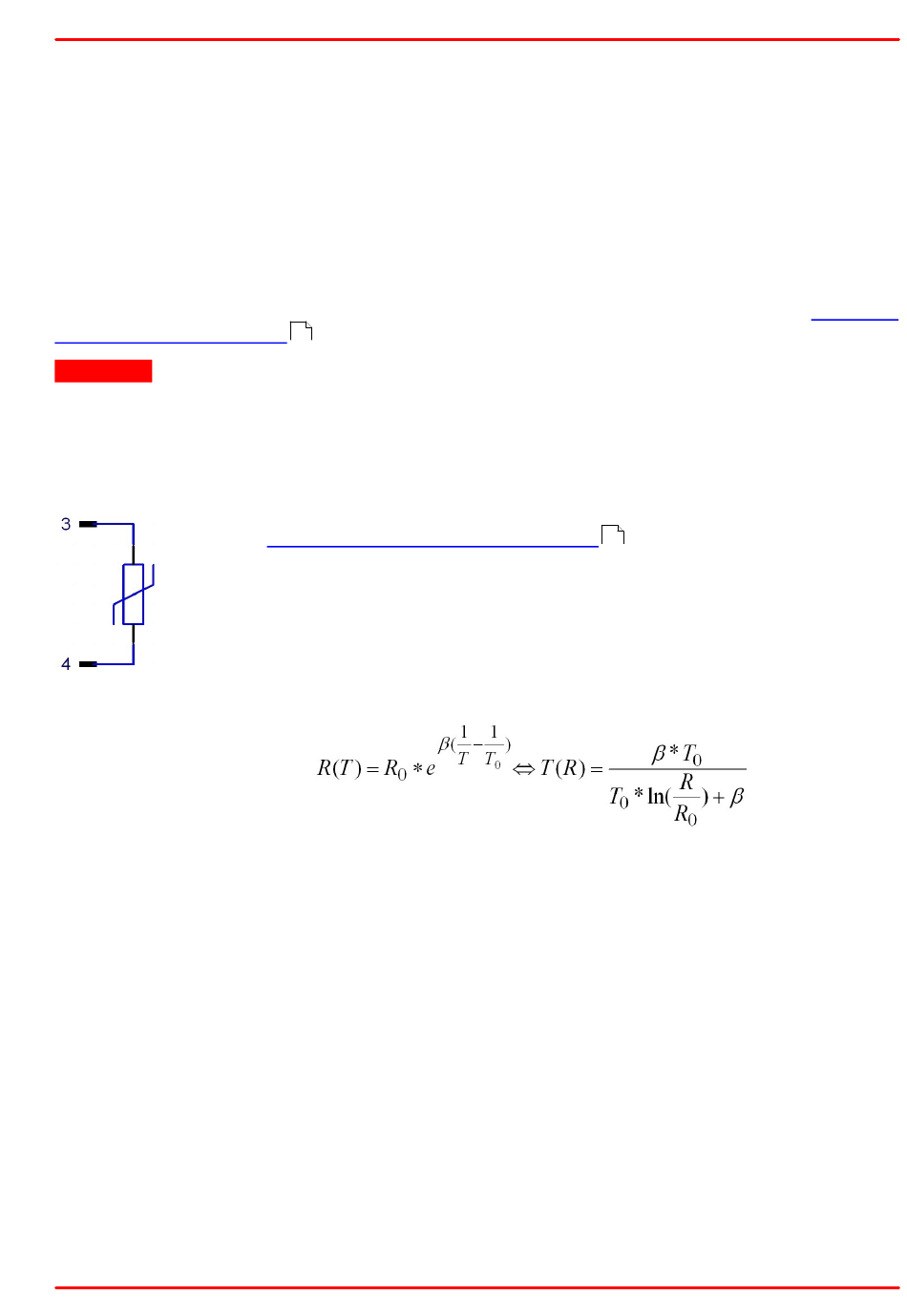

3.1.9.1 NTC thermistor

The thermistor is connected between pin 3 and pin 4 of the 17W2 mixed DSUB
jack (R16,
the thermistor is ungrounded. If one pin of the thermistor is grounded (for example
in a laser module), this pin must be connected to pin 3.
With a thermistor as temperature sensor, the resistance can be converted into the
temperature by using the Exponential or the Steinhart-Hart calculation method.
Using the exponential method, the relation between temperature and NTC ther-
mistor resistance (and vice versa) is approximated by the formulas:
Connecting a
thermistor
with: R - Thermistor nominal resistance at temperature T0
0
T - Nominal temperature (usually 298.15 K = 25° C)
0
β - Thermistor constant (sensitivity index, B value)
T - temperature in K (Kelvin)
For R , T and β please refer to the data sheet of the thermistor.
0 0
Using linearization series resistors, the thermistor measurement circuit of the instrument is op-
timized for best resolution with R
mistors with other R
on the actual sensor resistance.
If the exponential method parameters given in the thermistor data sheet are stored in the
ITC4000 setup, the thermistor temperature can be shown on the display.
