Appendix A
Front and Back Panel Data

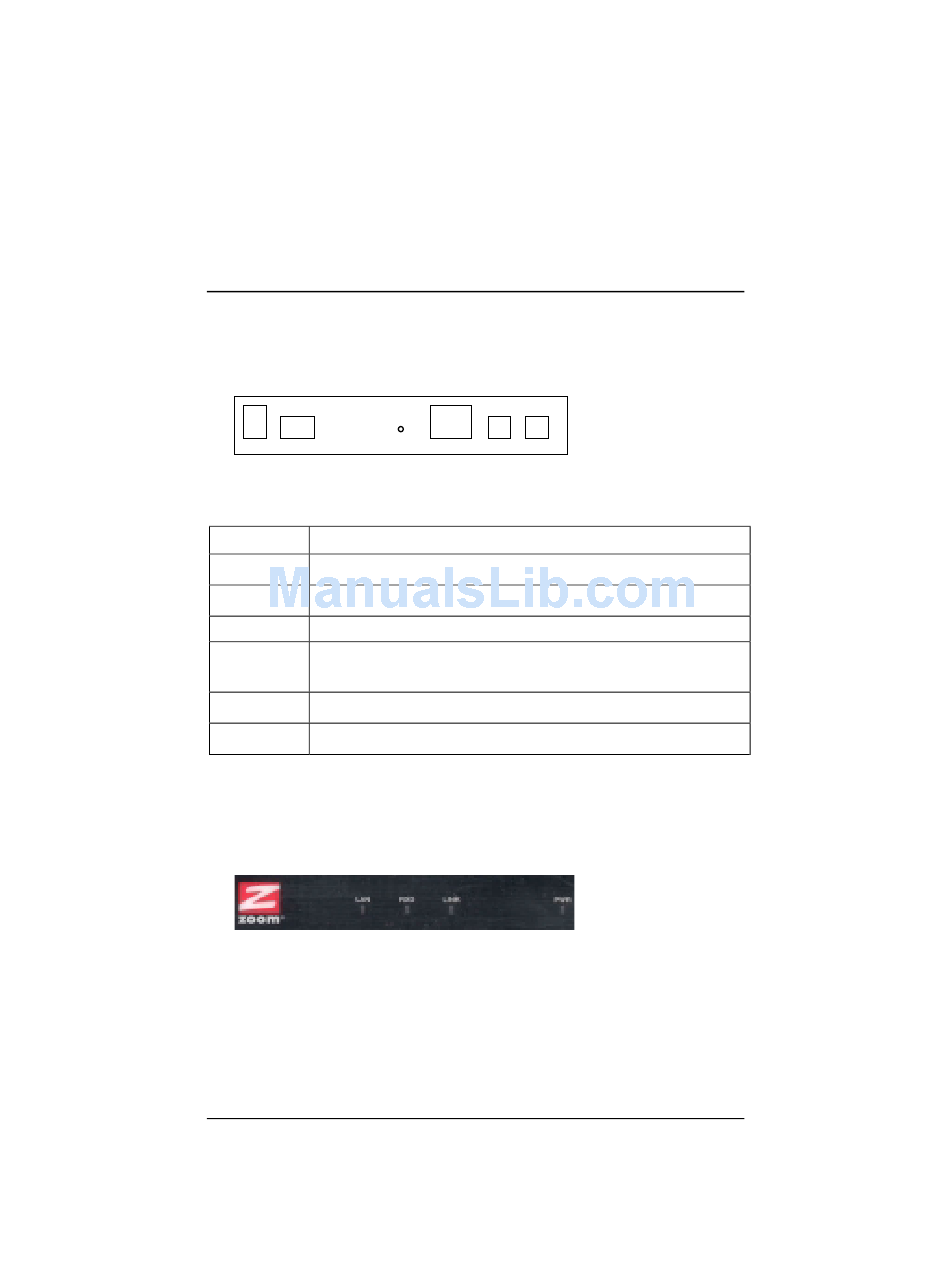

Back Panel
The back panel of your unit looks like this.
PWR ON OFF RESET
The table below defines the purpose of these ports, or jacks.
Port Description
PWR Port to connect the unit to the power adapter.
ON/OFF Toggle switch to turn the unit on or off.
RESET
Button to reset the unit to its system default settings.
ETHERNET Port to connect the unit to the Ethernet (10BaseT) port of a
computer.
PHONE Port to connect a phone to the unit.
ADSL Port to connect the unit to the ADSL telephone wall jack.
Front Panel
The front panel of your unit looks like this.
14
ETHERNET PHONE ADSL
