Summary of Contents for Zoom ADSL Modem BRIDGE 5515
-
Page 1: Adsl Modem
ADSL Modem U S E R ’ S M A N U A L BRIDGE... - Page 2 NOTICE NOTICE NOTICE NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.
-
Page 3: Table Of Contents
Contents 1 INSTALLATION INSTRUCTIONS ... 4 1.1 I MPORTANT EFORE 1.2 P ... 4 ACKAGE ONTENTS 1.3 Q UICK TART NSTRUCTIONS 1.4 I ... 7 2 SYSTEM ADMINISTRATION ... 8 2.1 M ONITORING YSTEM TATUS 2.2 M ADSL S ONITORING TATUS 2.3 P ERFORMING... -
Page 4: Installation Instructions
Straight-through Ethernet cable RJ-11 phone cord RJ-11-to-wall-jack adapter (certain models only) CD-ROM, including software and Warranty and Customer Support information Phone filter(s) (certain models only). If anything is missing or damaged, please contact your supplier. Zoom ADSL Bridge Modem User’s Manual... -
Page 5: You Will Also Need
You Will Also Need A Windows, Macintosh, Linux, or other computer that supports TCP/IP and that is equipped with a Network Interface Card (NIC). A telephone wall jack to plug the Bridge into. The associated phone line must be DSL enabled. 1.3 Quick Start Instructions Default Communication Settings Protocol (Encapsulation) -
Page 6: Using Phone Filters
Web browser icon on your computer desktop. The remainder of this manual contains information intended for future reference—for example, there are chapters on System Administration and Removing Your Bridge Modem. Refer to the Table of Contents for guidance. Zoom ADSL Bridge Modem User’s Manual... -
Page 7: I Fyou Need Help
1.4 If You Need Help If you have hardware installation problems, our Technical Support Staff will be happy to assist you. Windows Users: Please see the Customer Support portion of the CD for contact information. You may also want to refer to the Frequently Asked Questions on the CD. -
Page 8: System Administration
Bridge’s main page. 2.2 Monitoring ADSL Status If you want to check the status of your ADSL connection, click the ADSL Status icon at the top of the Bridge’s main interface page. Zoom ADSL Bridge Modem User’s Manual... - Page 9 From here, you can verify whether your ADSL connection is active or not (ADSL Line State Status will read SHOWTIME). You can also monitor related ADSL parameters; for example, how fast the Bridge is transferring data. If you want to review other network status aspects, click the Advanced Setup icon at the top of the main interface page.
-
Page 10: Performing System Administration Tasks
Clicking this button puts new settings and Flash and Reboot changes into effect—and restarts the unit. (Changes do not become effective until unit is restarted.) Help Clicking the Help icon at the top of any page displays context-sensitive help. Zoom ADSL Bridge Modem User’s Manual... -
Page 11: Resetting The Bridge To Its Default Settings
Note: We strongly recommend that you change the administrator password to safeguard the security of your network. 2.4 Resetting the Bridge to Its Default Settings If you have changed the system settings on your Bridge and want to restore them to the factory default settings, you can do so in one of two ways: You can perform a software reset or a “hard”... -
Page 12: Updating The Bridge's Firmware
Do not turn off the Bridge or unplug it while you are upgrading the firmware or while the unit is in download mode. 5 5 5 5 Close and re-open your Web browser and resume your Internet session. Zoom ADSL Bridge Modem User’s Manual... -
Page 13: Removing The Bridge Modem
ADSL service—follow the steps below. 1 1 1 1 From the desktop, select Start | Programs | Zoom ADSL Modem | Uninstall Ethernet ADSL Modem. 2 2 2 2 When prompted to confirm your choice, click Yes. -
Page 14: Appendix A: Front And Back Panel Data

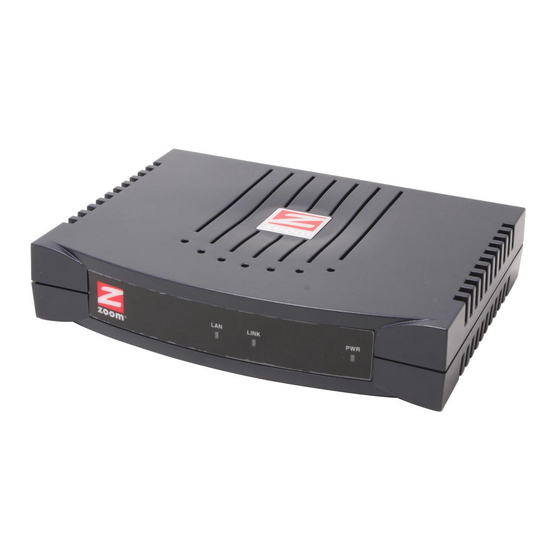

ETHERNET Port to connect the unit to the Ethernet (10BaseT) port of a computer. PHONE Port to connect a phone to the unit. ADSL Port to connect the unit to the ADSL telephone wall jack. Front Panel The front panel of your unit looks like this. Zoom ADSL Bridge Modem User’s Manual... - Page 15 The table below defines these front panel lights and how to interpret them. Light Description Lights when LAN connection is active. Blinks when unit is transmitting or receiving data. LINK Blinks when unit is performing its startup sequence; stays on solid when unit is connected to the ADSL line.
-
Page 16: Appendix B: Using The Bridge With Pppoe
Gateway. Note: Your provider will give you a User Name and Password, so make sure you have them at hand, because you will need them to complete the installation. User Name _________________________ Password __________________________ Zoom ADSL Bridge Modem User’s Manual... -
Page 17: Appendix C: Custom Installation Instructions
Appendix C Custom Installation Instructions Most users will follow the installation instructions on page 5. Follow these instructions only if your service provider is using settings that are different than the default settings listed on that page. This custom installation involves the following tasks: Setting up the Bridge Changing the TCP/IP settings Connecting the Bridge... - Page 18 ETHERNET jack and plug the other end into your computer’s corresponding Ethernet port. c c c c Plug one end of the included power adapter into the unit’s PWR jack and the other end into a power strip or wall receptacle. Zoom ADSL Bridge Modem User’s Manual...
- Page 19 d d d d Turn your computer back on. e e e e Turn the Bridge modem on by pushing the ON/OFF toggle switch. The PWR light on the unit’s front panel turns on. f f f f The Bridge performs a startup sequence—the LINK light blinks.
- Page 20 1 1 1 1 From the Apple menu, choose Control Panels and then TCP/IP to display the TCP/IP dialog box. 2 2 2 2 On the main toolbar, from the File menu, choose Configurations. Zoom ADSL Bridge Modem User’s Manual...
- Page 21 In the Configurations dialog box, click Duplicate. 4 4 4 4 The Duplicate Configuration dialog box appears. Type a name, such as “Zoom ADSL Modem,” and click OK. 5 5 5 5 The Configurations dialog box appears again. Highlight your new configuration—in our example, Zoom ADSL Modem—and click Make Active.
- Page 22 From the Location: drop-down list box, select New 2 2 2 2 Location…. In the box, type a name of your choosing, such as “Zoom ADSL Modem,” and click OK. Under the Show: drop-down tab, choose Built-in Ethernet 3 3 3 3 or Ethernet.
- Page 23 Make sure that the TCP/IP tab is foremost. 4 4 4 4 Highlight Manually in the Configure: menu and then enter the static IP address 10.0.0.3 (or any IP address higher than the Bridge’s 10.0.0.2 IP address) and the subnet mask 255.255.255.0.
- Page 24 Double-click it to display the Network Password dialog box. Macintosh, Linux, Windows NT, and 95 Users: There will not be a Zoom Web Console icon on your desktop. Instead, open your Web browser, type http://10.0.0.2 and press Enter to display the Network Password dialog box.
-
Page 25: Completing The Installation
Click Save Changes and Write Settings to Flash and Reboot. Once the reboot is complete and the unit has reset itself—when the front panel’s LINK light remains on steady again—close the Zoom Web Console page. c c c c Continue below with Completing the Installation. - Page 26 TCP/IP Properties box.) That’s it! You can now connect to the Internet by clicking the Web browser icon on your computer desktop. For instructions on using phone filters, turn to page 6. Zoom ADSL Bridge Modem User’s Manual...
-
Page 27: Appendix D: Regulatory Information
Appendix D Regulatory Information U.S. FCC Part 68 Statement This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. The unit bears a label on the back which contains among other information a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. -
Page 28: Declaration Of Conformity
This product is CE Marked. Electrostatic Discharge Statement The unit may require resetting after a severe electrostatic discharge event. Additional compliance information is included on the CD. Zoom ADSL Bridge Modem User’s Manual Test Report ed. 1999 electrical safety EMC-immunity... - Page 30 3143-A 27293 ©2003...
- Page 32 3143-A 27293 ©2003...
