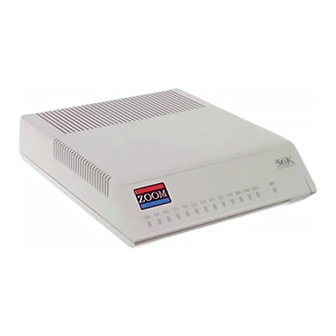

56K External Modem

QUICK START

This Quick Start describes external modem installation for
personal computers using Windows 95, 98, Me, 2000, XP,
and NT 4.0. Your modem also works with almost any
computer or terminal with a serial (RS-232) port, including
most Windows 3.x, Macintosh, and Linux computers. You
should consult your full-length manual if you have one of
these other systems. The manual is located on the CD.
Please make sure you have the following items: modem,
telephone cord, power supply, and installation and
communications software on diskette(s) or CD-ROM. In some
countries, you may also need a country-specific telephone
adapter to attach your modem to the telephone wall jack.
Depending on your modem model, your package may or may not
include a faxmodem-to-computer serial cable. If it doesn't, make
sure that you have a serial cable that mates with the connector
on your particular computer.
Important – If your computer already has an
internal PCI modem installed
You should remove the modem and its drivers now. Your old
modem may interfere with the installation of your new modem.
Please refer to page 5 now.
Windows NT 4.0 Users:
Note: Not all models are compatible with NT. See your box for
operating systems supported.
You need to install your faxmodem hardware before running your
setup software. Skip to page 2, Connecting the Faxmodem.
Windows 95/98/Me/2000/XP Users:
You need to run your setup software before installing your
modem hardware. Continue below.
Insert the enclosed CD in your computer's CD-ROM drive and
wait for it to auto-run.
If the CD does not auto-run: Right-click My Computer and then
click Explore. In the left panel click on the CD icon of the drive
that has your modem CD in it. In the right panel, double-click
Setup or Setup.exe.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56K and is the answer not in the manual?

Questions and answers

Related Manuals for Zoom 56K

Summary of Contents for Zoom 56K

  • Page 1: Quick Start

    56K External Modem QUICK START This Quick Start describes external modem installation for personal computers using Windows 95, 98, Me, 2000, XP, and NT 4.0. Your modem also works with almost any computer or terminal with a serial (RS-232) port, including most Windows 3.x, Macintosh, and Linux computers.

  • Page 2: Connecting The Faxmodem

    When the main interface appears, click Install Drivers. When the Install Drivers screen appears, select the modem type you are installing. Click Next. Follow the prompts. Click Finish. Leave the CD in the drive, exit any running programs, and shut down your computer.
  • Page 3 Connect your telephone (optional). You may also connect your regular telephone to the back of the faxmodem, in the jack labeled PHONE. If your phone cord doesn’t have an RJ-11 plug, you may need an adapter for your cord or an RJ-11 phone cord for your phone.
  • Page 4 In the Install New Modem screen, the correct modem will be displayed. Fill in the Location Information screen if it appears. Click Next. At the Modem Properties box, select the newly installed modem and then click Properties. Set the Maximum speed to the highest speed available (probably 115,200).

  • Page 5: Installing The Communications Software

    Windows 2000/XP: 2000: Open Start | Settings | Control Panel. Double-click Phone and Modem Options. Fill in the Location Information screen if it appears. XP: Open Start | Control Panel. Double-click Printers and other Hardware then Phone and Modem Options. Fill in the Location Information screen if it appears.

  • Page 6: If You Need Help

    Follow the on-screen instructions and click Finish. Windows NT 4.0 Users: Skip to Step 4. In one of the subsequent dialog boxes (depending on your operating system, Modems, Phone and Modem Options, or Modems Properties), select the modem you want to uninstall and click Remove. Take the cover off the computer.

  • Page 7: Regulatory Information

    Regulatory Information FCC 47CFR, Part 68 Statement This equipment complies with 47CFR, Part 68 of the rules. The unit bears a label which contains, among other information, the certification number and Ringer Equivalence Number (REN). If requested, this information must be provided to the telephone company.

  • Page 8: Declaration Of Conformity

    on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
