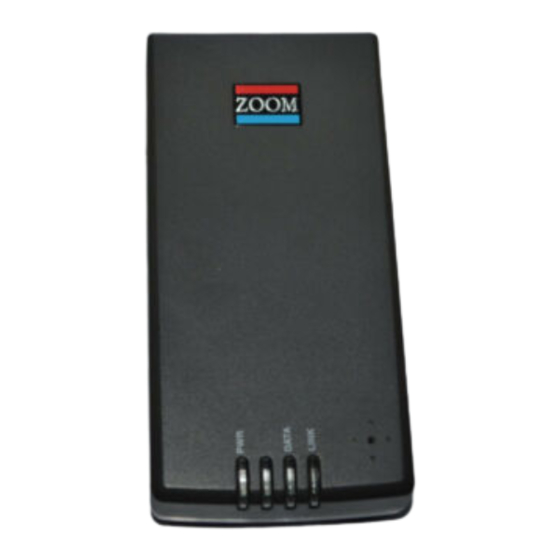

- Page 1 Zoom ™ ADSL USB MODEM Installation Guide...
- Page 3 NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.
-
Page 4: Table Of Contents
Contents GETTING STARTED ............1 ..............1 EFORE EGIN ..........2 ACKAGE ONTAINS ............2 YSTEM EQUIREMENTS ..............2 INSTALLING YOUR ADSL USB MODEM ......3 ............3 NSTALLING THE RIVERS ............4 ONNECTING THE ODEM ..........5 ONNECTING TO THE NTERNET ............ -
Page 5: Getting Started
Getting Started Thank you for purchasing our ADSL USB modem. This Installation Guide contains everything you need to know to install and use your new modem. This Guide is organized as follows: • Getting Started. • Installing Your ADSL USB Modem. •... -
Page 6: What Your Package Contains
Windows 98 First or Second Edition, Windows 2000, or Windows Millenium operating system. If You Need Help If you need help with your installation, the Zoom Technical Support Staff will be happy to assist you. Phone (617) 423-1076, e- mail support@zoom.com, or visit www.zoom.com. -
Page 7: Installing Your Adsl Usb Modem
Installing your ADSL USB Modem Setting up the Zoom ADSL USB modem involves three stages: • Installing the drivers. • Connecting the modem to the computer. Connecting to the Internet. • This section also includes instructions on how to uninstall your modem. -
Page 8: Connecting The Modem
Plug the rectangular end of the supplied USB cable into the USB port on your computer. 2 2 2 2 Plug the square end of the USB cable into the USB jack on the back of the modem. Zoom ADSL USB Modem Installation... -
Page 9: Onnecting To The Nternet
3 3 3 3 Connect the RJ-11 telephone cord. Plug one end of the cord into the PHONE jack on the back of the modem. Plug the other end into a telephone wall jack that has been wired for DSL service. Note: At this point, you may be asked for your computer’s Windows installation CD. -
Page 10: Uninstalling Your Modem
Then follow these steps: 1 1 1 1 Select Start | Programs | DSL Modem Driver. 2 2 2 2 Click Uninstall. You’ll see the following screen. 3 3 3 3 Click the Remove button. That’s it! Zoom ADSL USB Modem Installation... -
Page 11: Using The Configuration And Monitoring Application
ADSL modem and Internet connections. Physical Link Status & System Information From the Start menu, select Settings | Control Panel. From the Control Panel folder, double-click on the icon labeled Zoom DSL Modem. Using the Configuration and Monitoring Application... - Page 12 Clicking on the System Info tab displays the driver release number, and firmware revision number. This information will prove useful if you ever need help from our Technical Support team. Zoom ADSL USB Modem Installation...
- Page 13 Clicking on the Configuration tab will display information such as that shown in the screen below. Using the Configuration and Monitoring Application...
-
Page 14: Frequently Asked Questions
Make sure you’ve correctly entered all the information given to you by your Service Provider. Pay particular attention to the VPI and VCI numbers. Contact your Service Provider to ensure that the DSL connection is functioning properly. Zoom ADSL USB Modem Installation... -
Page 15: Regulatory Information
Regulatory Information FCC Part 15 Emissions Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 16 If this occurs, the telephone company is required to provide you with advance notice so you can make the modifications necessary to obtain uninterrupted service. Zoom ADSL USB Modem Installation...
- Page 17 U.S. REPAIR CENTER INFORMATION: Zoom Telephonics, Inc. 645 Summer Street Boston, MA 02210 USA Telephone Number: (617) 423 1072 Facsimile Number: (617) 542 8276 There are no user serviceable components within this equipment. This equipment cannot be used on public coin phone service provided by the telephone company.
- Page 18 2940-A 27154 ©2000...
