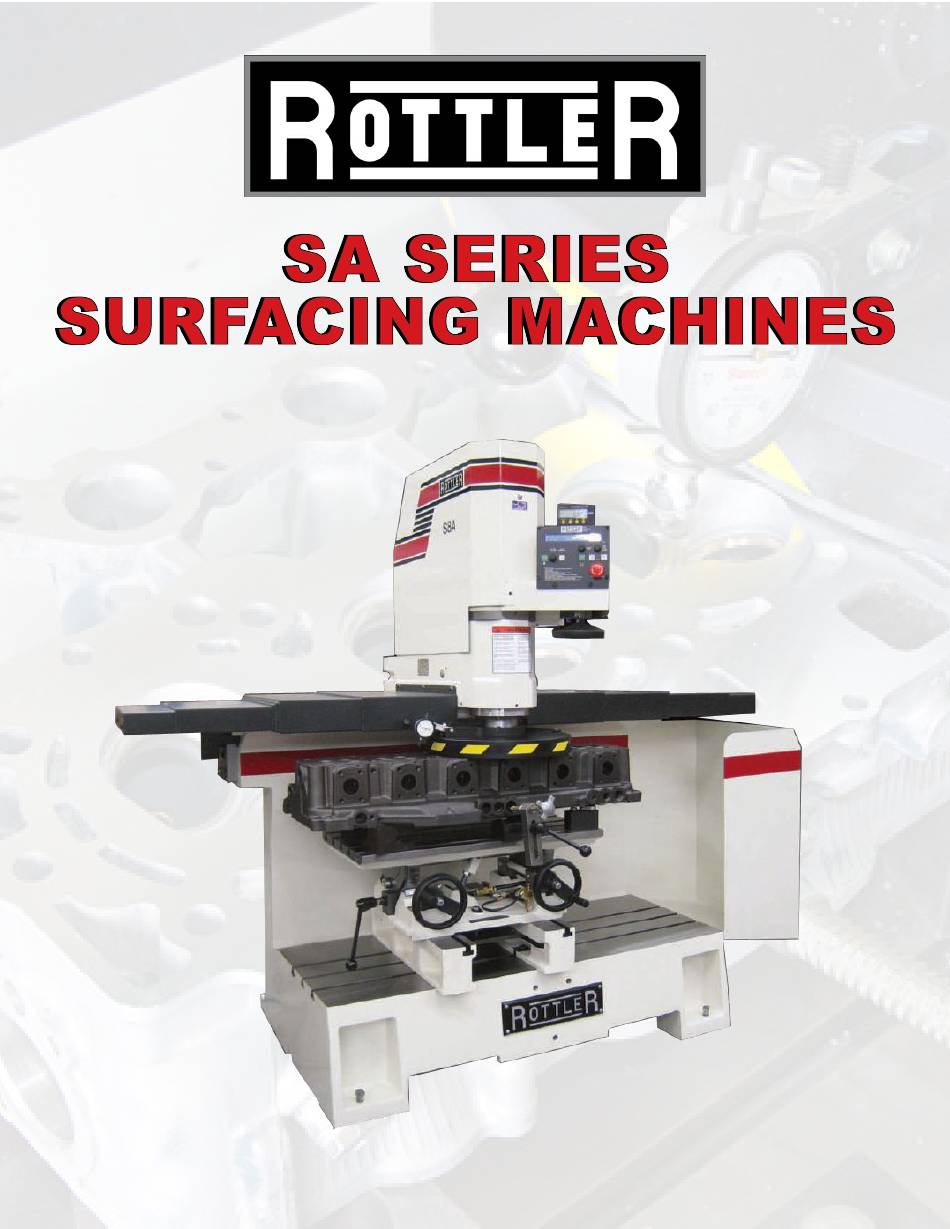

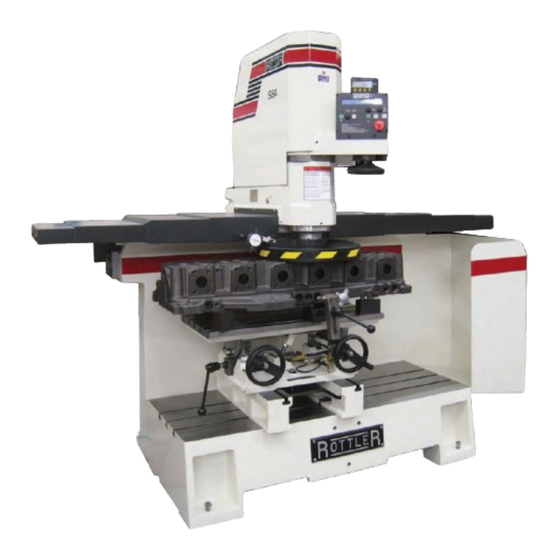

OPERATION AND MAINTENANCE MANUAL
8029 S 200th St. Kent, WA 98032 USA | www.rottlermfg.com | Ph: 253-872-7050 | Fax: 253-395-0230
16.03.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rottler SA Series

Summary of Contents for Rottler SA Series

  • Page 1 OPERATION AND MAINTENANCE MANUAL 8029 S 200th St. Kent, WA 98032 USA | www.rottlermfg.com | Ph: 253-872-7050 | Fax: 253-395-0230 16.03.2017...
  • Page 3 Contact your regional Rottler sales rep for assistance in ordering optional equipment, replacement parts, or tooling. If you are unable to contact your regional Rottler sales rep, call the factory at 253-872-7050 and ask to speak to the parts sales specialist.
  • Page 5 READ THE SAFETY CHAPTER BEFORE INSTALLING MACHINE. THOROUGHLY UNDERSTAND ALL SAFETY ISSUES BEFORE OPERATING MACHINE. ATTENTION OWNER/BUSINESS MANAGER To validate the warranty on your new Rottler machine, please be sure to sign and complete the “Installation Report” located in the Installation Chapter of this manual.
  • Page 6 Disclaimer The S7A & S8A Manual (henceforth to be referred to as the “Manual”) is proprietary to Rottler Manufacturing LLC. (“Rottler Manufacturing”) and no ownership rights are hereby transferred. No part of the Manual shall be used, reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of Rottler Manufacturing.
  • Page 7 Should a product not be as warranted, Rottler sole obligation shall be, at its option, to repair, correct or replace the product or to refund the amounts paid for the Product upon its return to a location designated by Rottler.
  • Page 8 Section 1 Introduction S7A S8A Manual www.rottlermfg.com...

  • Page 9: Table Of Contents

    Section 2 Installation S7A S8A Manual INSTALLATION Contents S7/S8 Installation Report ....................2-2 Installation Procedure ....................2-6 Location ..........................2-6 Unpacking ..........................2-6 Shipping Hold Down Bolt ....................2-6 Leveling ..........................2-6 Air Supply ..........................2-6 Power Supply ........................2-7 Grounding ..........................2-7 www.rottlermfg.com...
  • Page 10 Section 2 Installation S7A S8A Manual ATTENTION OWNER/BUSINESS MANAGER To validate the warranty on your new Rottler machine, please be sure to sign the installation report after the installation technician has installed the machine and verified the machine is operating correctly and given the operators operation and maintenance training.

  • Page 11: S7/S8 Installation Report

    REV 031617 OFFICE USE ONLY Route to: Servicer Mgr Accounting Andy Accounting Warranty Exp Date ________ ROTTLER MANUFACTURING MUST HAVE THIS REPORT RETURNED TO PROPERLY QUALIFY WARRANTY ON EQUIPMENT Customer:____________________________ Address:_______________________________________ City:_________________________________ State:_____ Zip:_________ Phone:_______________ Country:______________________________ Machine Model:___________ Serial Number:__________ Representative:________________________ MACHINE INSTALLATION: Electrical information MUST be complete to validate this report.
  • Page 12 Operator Training Note: Rotter employees and representatives per company policy are not permitted to provide end user of Rottler equipment with any OEM specifications for the workpiece that is created by end user using Rottler equipment. ______Explain controls per “Control” section in manual.
  • Page 13 Section 2 Installation S7A S8A Manual CYLINDER HEAD RESURFACING ______Assemble cylinder head fixturing in accordance with the manual diagram. ______Have operator clamp head properly, place and adjust jacks and level the work piece with level. Point out value of a double axis level. ______Use the first work piece to check dial indicator is set at zero, when cutters touch the surface of the work piece.
  • Page 14 Instructions given to:___________________________________________________________________ Sales/Service Engineer: _______________________________________________ Date_____________ Shop Foreman/Superintendent or Owner: _________________________________ Date_____________ Once completed send this form to: Rottler Manufacturing attn: Service Manager Alternately you may send this form via fax or e-mail: 8029 S 200 St fax: [+1] 253-395-0230 Kent, WA 98032 USA e-mail: service@rottlermfg.com...

  • Page 15: Installation Procedure

    Section 2 Installation S7A S8A Manual Installation Procedure Location The productivity of this machine will depend a great deal on it’s proper initial installation, particularly the means by which cylinder blocks/heads are lifted into the machine as well as the material handling to and from other operations in your shop.

  • Page 16: Power Supply

    Section 2 Installation S7A S8A Manual Power Supply This machine requires 208 to 240 VAC single phase, 50/60 Hz, (measured between L1 and L2). Current required is 15 amps. When using two legs of a three phase supply the voltage from each leg to ground must be between 100-120 VAC.
  • Page 17 Section 3 Safety S7A S8A Manual SAFETY Contents Safety Information .......................3-1 Safety Instructions for Machine Use .................3-1 Electrical Power ......................3-3 Machine Operator ......................3-4 Emergency Procedure ....................3-5 www.rottlermfg.com...

  • Page 18: Safety Information

    Section 3 Safety S7A S8A Manual Safety Information For Your Own Safety Read This Instruction Manual Before Operating This Machine. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 19 DO NOT MODIFY OR ALTER THIS EQUIPMENT in any way. If modifications are deemed necessary, all such requests must be approved and/or handled by Rottler Manufacturing. Unauthorized modifications could cause injury and/or damage to machine and will void the warranty.

  • Page 20: Electrical Power

    Section 3 Safety S7A S8A Manual No list of safety guidelines can be complete. Every piece of shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to follow guidelines could result in serious personal injury, damage to equipment or poor work results.

  • Page 21: Machine Operator

    Section 3 Safety S7A S8A Manual No single list of electrical guidelines can be comprehensive for all shop environments. Operating this machinery may require additional electrical upgrades specific to your shop environment. It is your responsibility to make sure your electrical system comply with all local codes and ordinances.

  • Page 22: Emergency Procedure

    Section 3 Safety S7A S8A Manual Machining – Eye protection must be worn during all operations of the machine. Hands must be kept completely away from the cutter head. All chip guards must be in position during machine operations. Work Loading and Unloading – Carefully develop handling methods of loading and unloading work pieces so that no injury can result if hoist equipment or lift connection should fail.
  • Page 23 Section 4 Control Definitions S7A S8A Manual CONTROL DEFINITIONS Contents Control Definitions ......................4-1 CPU Control .......................... 4-1 Master Power On/Off Switch ....................4-1 Button Definition ........................4-1 Emergency Stop ..........................4-2 Homing ...............................4-2 Right ..............................4-2 Left ..............................4-2 Spindle Start ............................4-2 Relief Up ............................4-2 Up/Dn Adjust .............................4-2 Mill ..............................4-2 Rapid touch off Set ...........................4-3...

  • Page 24: Control Definitions

    Section 4 Control Definitions S7A S8A Manual Control Definitions The purpose of this chapter is to define the function of buttons on the front control panel. Certain button functions may not appear clear when first reading this chapter. As the operator reads through the Operating Instructions chapter of this manual, these functions will become clear.

  • Page 25: Emergency Stop

    Section 4 Control Definitions S7A S8A Manual Emergency Stop IF the Emergency stop is pushed, all power to the spindle and horizontal drive is removed. Display will still have power and will display “EMERGENCY STOP”. To release the emergency stop, turn the button to the right and it will “POP”...

  • Page 26: Rapid Touch Off Set

    Section 4 Control Definitions S7A S8A Manual Rapid touch off Set This button is used to set the Rapid Touch Off point. The Rapid Touch Off point is a distance, set by the operator, from the right home position to the start of the work piece. Every time this button is pressed the display will zeroed out and that position remembered at the Rapid touch Off position.

  • Page 27: Machine Parameters

    Section 4 Control Definitions S7A S8A Manual Machine Parameters To access the machine parameters press and hold the SET button then press LEFT. This will bring you to the Password, you must still hold the set button, turn the Spindle RPM knob to read 311 then release the SET button.

  • Page 28: Spindle Auto Set-Up

    Section 4 Control Definitions S7A S8A Manual Spindle Auto Set-Up To run Spindle Self set-up. Press and hold the SET, UP/DN and SPINDLE START button for two seconds. The SET button will flash and the SPINDLE START button will light. Press and hold the SET button.
  • Page 29 Section 5 Operating Instructions S7A S8A Manual OPERATING INSTRUCTIONS Contents Operating Instructions ....................5-1 Manual Operation ......................... 5-2 Automatic Operation ......................5-3 Cutting Inserts ........................5-4 6303B ..............................5-4 6303M ..............................5-4 6303K ..............................5-4 6303S ..............................5-4 6303R ..............................5-4 501-29-6E R2 ............................5-5 6301J ..............................5-5 6303P ..............................5-5 6303Q ..............................5-5 One Insert vs.

  • Page 30: Operating Instructions

    Section 5 Operating Instructions S7A S8A Manual Operating Instructions Included in this chapter is a general description of how to use this machine for surfacing, whether it cylinder head, block or other type of job. For details of operating specific fixtures available on this machine refer to the Optional Surfacing Fixtures and Tooling section of this manual.

  • Page 31: Manual Operation

    Section 5 Operating Instructions S7A S8A Manual Manual Operation Press the Left rapid travel button and move the spindle over to the starting position. The starting position is just before the cutterhead guard passes over the work piece. Push the dial depth indicator, on the guard, down onto the top of the work piece.

  • Page 32: Automatic Operation

    Section 5 Operating Instructions S7A S8A Manual Automatic Operation Press the right travel button so the machine will move to the Home position. Press the Left rapid travel button and move the spindle over to the starting position. The starting position is just before the cutterhead guard passes over the work piece.

  • Page 33: Cutting Inserts

    Section 5 Operating Instructions S7A S8A Manual Cutting Inserts Rottler offers several different 3/8” and 1/2” IC negative rake inserts for the SF machine. Below is a description of each. 6303B A round 3/8” IC, double sided, CBN Insert. An excellent, long life insert for surfacing cast iron heads and blocks -round shape gives many cutting edges on each side of insert.

  • Page 34: 501-29-6E R2

    The standard Rottler 3/8” IC tool holders will not hold this insert. One Insert vs. Two Inserts Rottler SF machines can be rum effectively with either one or two inserts installed in the cutterhead. Note: Never remove one tool holder that holds the insert and run the machine with one insert.

  • Page 35: General Information

    S7A S8A Manual General Information Rottler CBN and PCD Inserts are laser marked with our part number on one side. On single sided inserts, the part number is on the back side of the insert. Rottler surfacing insert toolholders are designated IC (inscribed circle) which means they can hold square and round inserts with the same IC, for example, a 3/8”...
  • Page 36 Section 5 Operating Instructions S7A S8A Manual www.rottlermfg.com...
  • Page 37 Section 6 Maintenance S7A S8A Manual MAINTENANCE Contents Maintenance .........................6-1 Lubrication ..........................6-1 Horizontal Ballscrew Nut ..................... 6-1 Vertical Ballscrew Nut ......................6-1 Outer Spindle ........................6-1 Inner Spindle ......................... 6-1 Cleaning The Way Surface....................6-1 Lubrication – Quick Reference Chart ................. 6-1 S7A -8A Machine Lubrication Illustration ................
  • Page 38 Section 6 Maintenance S7A S8A Manual Spindle Sensor Adjustment ....................6-14 Horizontal Ball Screw and Belt Alignment and Adjustment ........... 6-15 Air Adjustment of the S7A – 8A Machine ................. 6-16 Air Adjustments Illustration ......................6-16 Pneumatic Control Diagram ....................6-17 Cutterhead Tilt Adjustment ....................

  • Page 39: Maintenance

    Section 6 Maintenance S7A S8A Manual Maintenance Lubrication Refer to the illustrations on the following pages. Horizontal Ballscrew Nut The horizontal ballscrew nut is located under the Spindle base inside the Main Base. Every 175 hours, Grease the ball screw nut using NLGI #2 White Lithium Grease. Wipe a small •...

  • Page 40: S7A -8A Machine Lubrication Illustration

    Section 6 Maintenance S7A S8A Manual S7A -8A Machine Lubrication Illustration www.rottlermfg.com...

  • Page 41: Axis Universal Machine Table 7119Q - Lubrication Illustration

    Section 6 Maintenance S7A S8A Manual 2 Axis Universal Machine Table 7119Q – Lubrication Illustration www.rottlermfg.com...

  • Page 42: Setting Cutting Tool Inserts

    Section 6 Maintenance S7A S8A Manual Setting Cutting Tool Inserts Travel the spindle base approximately to the center of the main base. Turn off all power to machine before proceeding. Remove vacuum housing from chip shield. Attach a dial runout indicator to a cylinder head or engine block, etc.

  • Page 43: Dial Indicator Setting

    Section 6 Maintenance S7A S8A Manual Dial Indicator Setting If chip shield, cutting insert, or dial indicator have been moved, the dial indicator should be reset. With the surfacing cutter in the fore and aft position, press the left travel button until the cutterhead overlaps a test piece by about 1/2”...

  • Page 44: Vertical Travel Belt

    Section 6 Maintenance S7A S8A Manual Vertical Travel Belt Removal, Replacement and Adjustment: Turn off all power to the machine before continuing. Remove the access panel at the rear of the machine shroud. Remove the five screws mounting the shroud to the machine. Four screws are located inside the enclosure and are accessed through the rear opening.

  • Page 45: Upper Vertical Travel Belt

    Section 6 Maintenance S7A S8A Manual Upper Vertical Travel Belt The following replacement and adjustment procedure are for both the upper and lower belts. Loosen the two (upper belt) or four (lower belt) bracket mounting bolts. Turn the Belt Tension adjustment bolts CCW until they are our of the mounting brackets. Push the idler pulleys and bracket towards the belt.

  • Page 46: Drive Belt Replacement

    Section 6 Maintenance S7A S8A Manual Drive Belt Replacement Turn off all power to the machine before continuing. • Remove the access panel at the rear of the machine enclosure. Remove the six screws mounting the enclosure to the machine. Four screws are located inside the enclosure and are accessed through the rear opening.

  • Page 47: Drive Sprocket / Motor Removal And Replacement

    Section 6 Maintenance S7A S8A Manual Drive Sprocket / Motor Removal and Replacement Turn off all power to the machine before continuing. Removal of Drive Sprocket • Remove the upper housing cover, and drive belt, as explained on page 4.7. •...

  • Page 48: Driven Sprocket Removal And Replacement

    Section 6 Maintenance 6-10 S7A S8A Manual Driven Sprocket Removal and Replacement Turn off all power to the machine before continuing. Removal of Driven Sprocket • Remove the upper housing cover, and drive belt, as explained previously. • Place a support under the Cutterhead to support the inner spindle from falling. Remove the adjusting nut using a 5/32 (4mm) diameter Rod through the slot in the upper housing.

  • Page 49: Cutterhead And Chip Guard Removal

    Section 6 Maintenance 6-11 S7A S8A Manual Cutterhead and Chip Guard Removal Turn off all power to the machine before continuing. • Mark cutterhead and spindle so they can be reassembled in the same position. • Remove cutterhead by removing its four 3/8-16 screws. Remove chip guard by removing its two 1/4- 20 set screws that go into the clamp ring at an angle, and loosen the 3/8-16 cap screw in the split line of clamp ring.

  • Page 50: Upper Housing Removal

    Section 6 Maintenance 6-12 S7A S8A Manual Upper Housing Removal Turn off all power to the machine before continuing. Remove the Drive Belt, Motor and Driven Sprocket and described earlier in this chapter. Remove the shoulder bolts holding the top of the air cylinder to the upper housing. Compress the air cylinder and lay it out of the way.

  • Page 51: Inner Spindle Removal

    Section 6 Maintenance 6-13 S7A S8A Manual Inner Spindle Removal Turn off all power to the machine before continuing. • Remove the upper housing cover, and drive belt. • Remove the driven sprocket. • Remove the cutterhead and chip guard. •...

  • Page 52: Spindle Sensor Adjustment

    Section 6 Maintenance 6-14 S7A S8A Manual Spindle Sensor Adjustment Turn off all power to the machine before continuing. Remove the Lid from the Upper Housing. Rotate the spindle until the head of the Hex nut is directly in front of the sensor. The distance between the sensor and the hex bolt should be .030”.

  • Page 53: Horizontal Ball Screw And Belt Alignment And Adjustment

    Section 6 Maintenance 6-15 S7A S8A Manual Horizontal Ball Screw and Belt Alignment and Adjustment 1. The Way Covers do not need to be removed to align the ballscrew or adjust the belt tension. They can be accessed underneath the way covers at each end. 2.

  • Page 54: Air Adjustment Of The S7A - 8A Machine

    Section 6 Maintenance 6-16 S7A S8A Manual Air Adjustment of the S7A – 8A Machine The Regulator for the counter balance air cylinder is located in the Spindle Base. Remove the rear cover to access the regulator. This pressure should be approximately 9 to 15 psi. Note: Maximum 20 psi Air Adjustments Illustration www.rottlermfg.com...

  • Page 55: Pneumatic Control Diagram

    Section 6 Maintenance 6-17 S7A S8A Manual Pneumatic Control Diagram www.rottlermfg.com...

  • Page 56: Cutterhead Tilt Adjustment

    Section 6 Maintenance 6-18 S7A S8A Manual Cutterhead Tilt Adjustment Remove all work pieces, fixturing and parallels, from the lower surface of the main base. Travel the spindle unit over to the center of the main base. Turn off all power to the machine before continuing. Remove one tool holder from the cutterhead.

  • Page 57: Outer Spindle Adjustment

    Section 6 Maintenance 6-19 S7A S8A Manual Outer Spindle Adjustment The main spindle bearings are tapered split cast iron rings, held in a seat by an adjustment nut. These bearings normally require no adjustment for many surfacing cycles. CAUTION: Be careful not to over tighten these bearings. An over tight condition only serves to wear out the machine and make control operation difficult.

  • Page 58: Inner Spindle Adjustment

    Section 6 Maintenance 6-20 S7A S8A Manual Inner Spindle Adjustment Turn off all power to the machine before continuing. Remove the two screws holding the small nameplate (502-1-19C) to the front of the upper housing. Inside the exposed opening is the spindle adjustment nut (7020). The spindle adjustment nut has holes drilled around its perimeter to accept an adjustment rod.

  • Page 59: Alignment Definitions For Angular Bearings And Belleville Washers

    Section 6 Maintenance 6-21 S7A S8A Manual Alignment Definitions for Angular Bearings and Belleville Washers Bearing Alignment Belleville Washer Alignment www.rottlermfg.com...

  • Page 60: Z-Axis Vertical Ballscrew Lower Bearing Stacking Order

    Section 6 Maintenance 6-22 S7A S8A Manual Z-Axis Vertical Ballscrew Lower Bearing Stacking Order Z-Axis Vertical Ballscrew Lower Bearing Section View www.rottlermfg.com...

  • Page 61: Inner Spindle Upper Section Belleville Washer Stacking Order

    Section 6 Maintenance 6-23 S7A S8A Manual Inner Spindle Upper Section Belleville Washer Stacking Order Inner Spindle Upper Section Belleville Washer Section View www.rottlermfg.com...

  • Page 62: Inner Spindle Lower Section Bearing Stacking Order

    Section 6 Maintenance 6-24 S7A S8A Manual Inner Spindle Lower Section Bearing Stacking Order www.rottlermfg.com...

  • Page 63: Inner Spindle Lower Section Bearing Section View

    Section 6 Maintenance 6-25 S7A S8A Manual Inner Spindle Lower Section Bearing Section View www.rottlermfg.com...
  • Page 64 Section 6 Maintenance 6-26 S7A S8A Manual www.rottlermfg.com...
  • Page 65 TROUBLESHOOTING Please visit the service tab of our web page at Send a Service Request www.rottlermfg. com or contact the Rottler Factory Service at service@rottlermfg.com for assistance and your service request. You may also call Rottler at 1-800-452-0534 or 1-253-872-7050...
  • Page 66 Section 7 Troubleshooting S7A S8A Manual www.rottlermfg.com...
  • Page 67 Section 8 Machine Parts S7A S8A Manual MACHINE PARTS Contents Machine Parts ......................8-1 Front / Right Side View S7-8A ..................... 8-1 Pneumatic Assembly......................8-2 Electrical Wiring Diagram ....................8-3 Electrical Enclosure ......................8-4 Upper Housing ........................8-5 Upper Vertical Travel Belt Parts ..................8-6 Spindle Base Front Section ....................

  • Page 68: Machine Parts

    Section 8 Machine Parts S7A S8A Manual Machine Parts Front / Right Side View S7-8A www.rottlermfg.com...

  • Page 69: Pneumatic Assembly

    Section 8 Machine Parts S7A S8A Manual Pneumatic Assembly www.rottlermfg.com...

  • Page 70: Electrical Wiring Diagram

    Section 8 Machine Parts S7A S8A Manual Electrical Wiring Diagram A scalable version of this wiring diagram is located on the manual CD. www.rottlermfg.com...

  • Page 71: Electrical Enclosure

    Section 8 Machine Parts S7A S8A Manual Electrical Enclosure www.rottlermfg.com...

  • Page 72: Upper Housing

    Section 8 Machine Parts S7A S8A Manual Upper Housing www.rottlermfg.com...

  • Page 73: Upper Vertical Travel Belt Parts

    Section 8 Machine Parts S7A S8A Manual Upper Vertical Travel Belt Parts www.rottlermfg.com...

  • Page 74: Spindle Base Front Section

    Section 8 Machine Parts S7A S8A Manual Spindle Base Front Section www.rottlermfg.com...

  • Page 75: Inner / Outer Spindle Assembly

    Section 8 Machine Parts S7A S8A Manual Inner / Outer Spindle Assembly www.rottlermfg.com...

  • Page 76: Spindle Base Bushings

    Section 8 Machine Parts S7A S8A Manual Spindle Base Bushings www.rottlermfg.com...

  • Page 77: Spindle Base Assembly

    Section 8 Machine Parts 8-10 S7A S8A Manual Spindle Base Assembly www.rottlermfg.com...

  • Page 78: Left Ballscrew Support

    Section 8 Machine Parts 8-11 S7A S8A Manual Left Ballscrew Support www.rottlermfg.com...

  • Page 79: Right Ballscrew Support

    Section 8 Machine Parts 8-12 S7A S8A Manual Right Ballscrew Support www.rottlermfg.com...

  • Page 80: Home And Limit Switches

    Section 8 Machine Parts 8-13 S7A S8A Manual Home and Limit Switches www.rottlermfg.com...

  • Page 81: Pendant Assembly

    Section 8 Machine Parts 8-14 S7A S8A Manual Pendant Assembly www.rottlermfg.com...

  • Page 82: Spindle Base Cover

    Section 8 Machine Parts 8-15 S7A S8A Manual Spindle Base Cover www.rottlermfg.com...
  • Page 83 Section 8 Machine Parts 8-16 S7A S8A Manual Chip Shield 14” & 16” www.rottlermfg.com...

  • Page 84: 14" Fly Cutter

    Section 8 Machine Parts 8-17 S7A S8A Manual 14” Fly Cutter www.rottlermfg.com...

  • Page 85: Chip Chute

    Section 8 Machine Parts 8-18 S7A S8A Manual Chip Chute www.rottlermfg.com...

  • Page 86: Waycovers And Optional Chip Catcher Assembly

    Section 8 Machine Parts 8-19 S7A S8A Manual Waycovers and Optional Chip Catcher Assembly www.rottlermfg.com...

  • Page 87: Riser Set

    Section 8 Machine Parts 8-20 S7A S8A Manual Riser Set www.rottlermfg.com...
  • Page 88 Section 8 Machine Parts 8-21 S7A S8A Manual www.rottlermfg.com...
  • Page 89 Section 9 Options S7A S8A Manual OPTIONS Optional Equipment Optional Equipment Catalog and Parts Manual are located on the Manual CD shipped with machine. www.rottlermfg.com...
  • Page 90 Section 9 Options S7A S8A Manual www.rottlermfg.com...
  • Page 91 A complete list of the Material Data Safety Sheets of substances and materials used by Rottler Manufacturing during manufacturing, testing, and shipping is located on the Manual CD shipped with the machine. Material Data Safety Sheets are also located on the company web site: http://www.rottlermfg.com/documentation.php...
  • Page 92 Section 10 Material Data Safety Sheets 10-2 S7A & S8A Manual www.rottlermfg.com...
  • Page 93 Section 10 Material Data Safety Sheets 10-3 S7A & S8A Manual www.rottlermfg.com...
  • Page 94 Section 10 Material Data Safety Sheets 10-4 S7A & S8A Manual www.rottlermfg.com...
