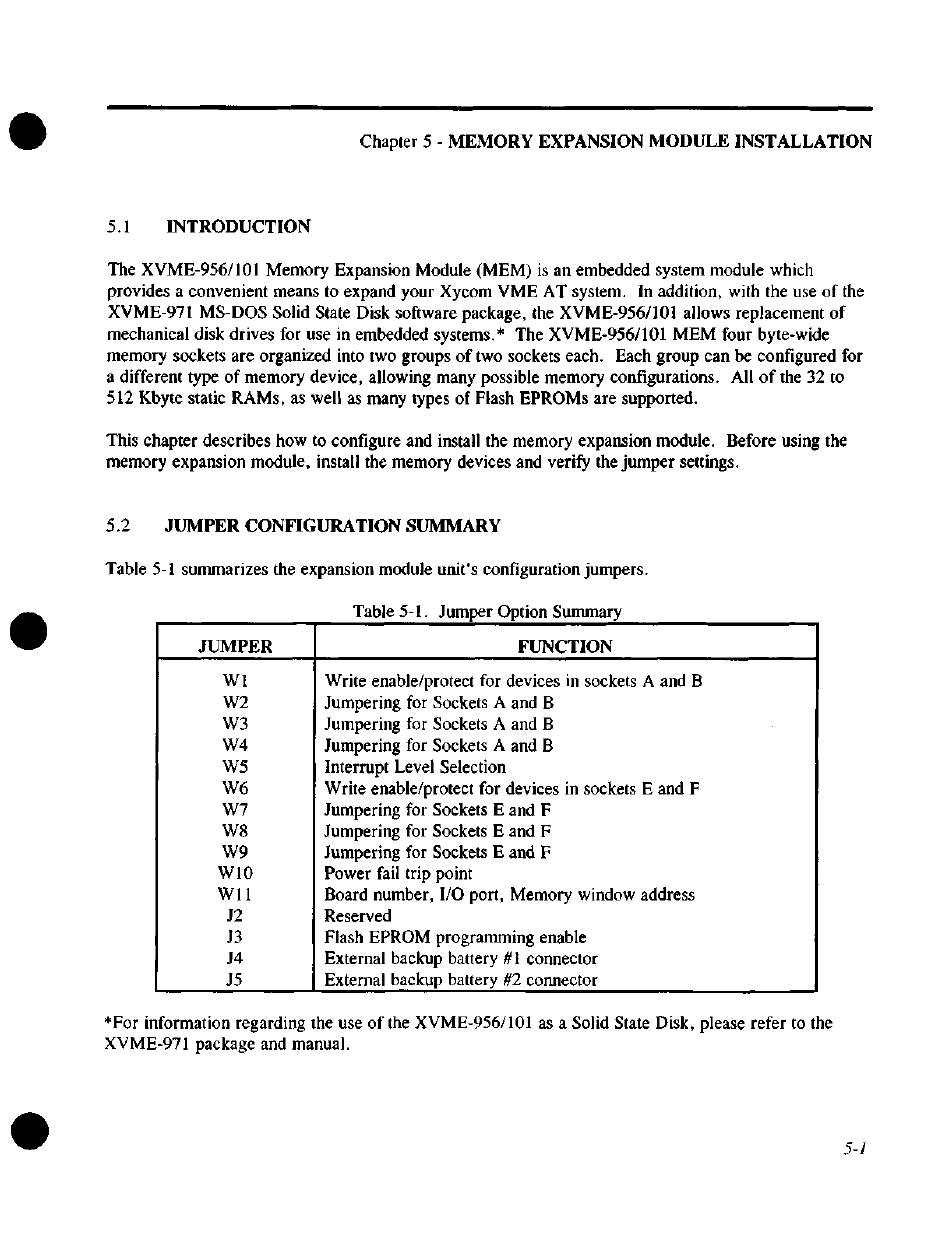

5.1 I N T R O D U C T I O N
The XVME-956/101 Memory Expansion Module (MEM) is an embedded system module which
provides a convenient means to expand your Xycom VME AT system. I n addition, with the use of the
XVME-971 MS-DOS Solid State Disk software package, the XVME-956/101 allows replacement of
mechanical disk drives for use in embedded systems.* The XVME-956/101 MEM four byte-wide
memory sockets are organized into two groups of two sockets each. Each group can be configured for
a different type of memory device, allowing many possible memory configurations. A l l of the 32 to
512 Kbyte static RAMs, as well as many types of Flash EPROMs are supported.
This chapter describes how to configure and install the memory expansion module. Before using the
memory expansion module, install the memory devices and verify the jumper settings.
5.2 J U M P E R CONFIGURATION SUMMARY
Table 5-1 summarizes the expansion module unit's configuration jumpers.
•
*For information regarding the use of the XVME-956/101 as a Solid State Disk, please refer to the
XVME-971 package and manual.
•
Chapter 5 - MEMORY EXPANSION MODULE INSTALLATION
Table 5-1. Jumper Option Summary
JUMPER
W1 Write enable/protect for devices in sockets A and B
W2 Jumpering for Sockets A and B
W3 Jumpering for Sockets A and B
W4 Jumpering for Sockets A and B
W5
Interrupt Level Selection
W6 Write enable/protect for devices in sockets E and F
W7 Jumpering for Sockets E and F
W8
Jumpering for Sockets E and F
W9
Jumpering for Sockets E and F
W10
Power fail trip point
W11 Board number, I/O port, Memory window address
J2
Reserved
J3 Flash EPROM programming enable
J4 External backup battery #1 connector
J5 External backup battery #2 connector
FUNCTION
5-1
