*Short pins 1/2 to enable the remote boot ROM
•
•

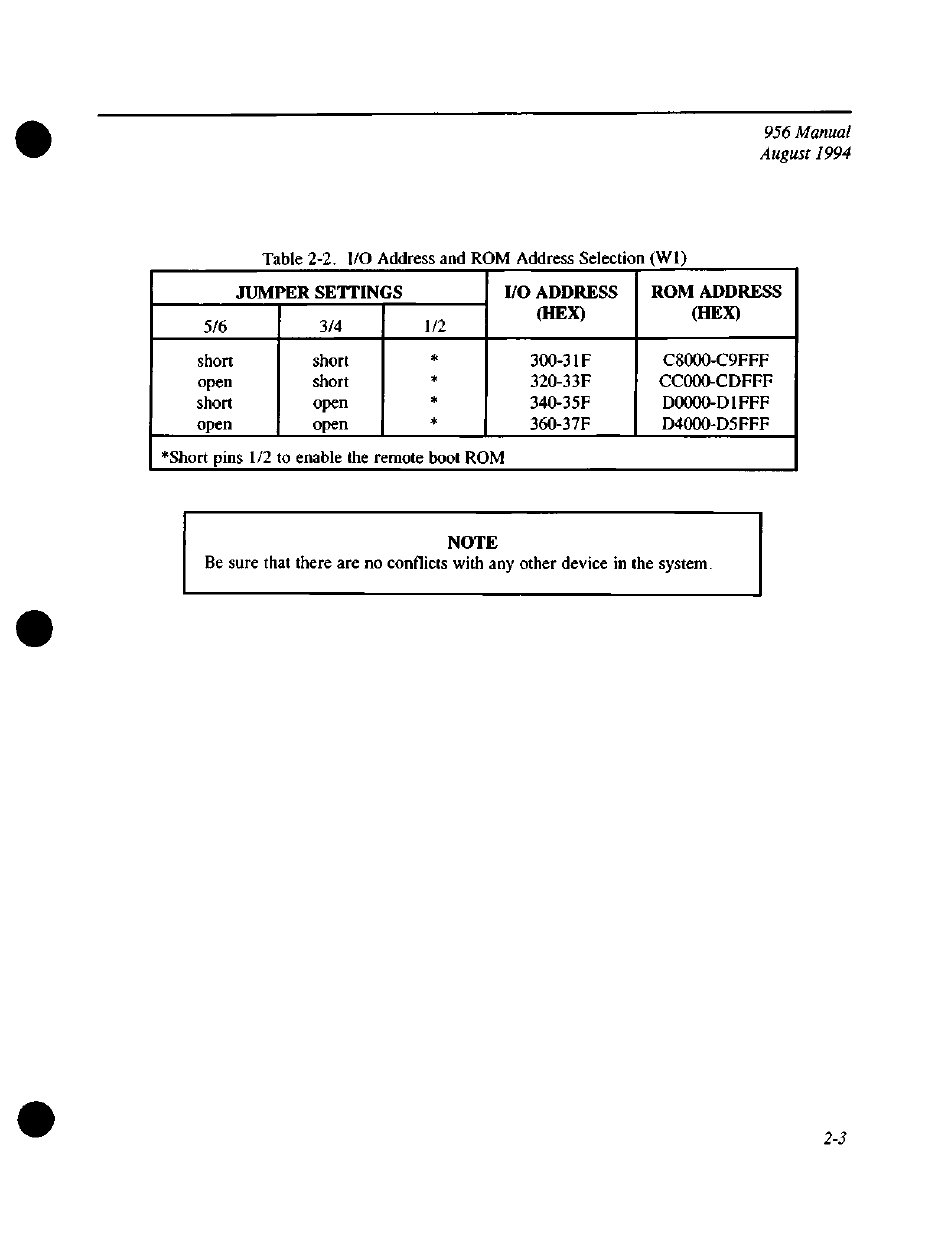

Table 2-2. I / O Address and ROM Address Selection (W1)
JUMPER SETTINGS
5/6 3/4
short short
open short
open
short
open
open
Be sure that there are no conflicts with any other device in the system.
I/O ADDRESS
(HEX)
1/2
* 300-31F
* 320-33F
340-35F
*
* 360-37F
NOTE
956 Manual
August 1994
ROM ADDRESS
(HEX)
C8000-C9FFF
CC000-CDFFF
D0000-D1FFF
D4000-D5FFF
2-3
