Chapter 1 - Introduction

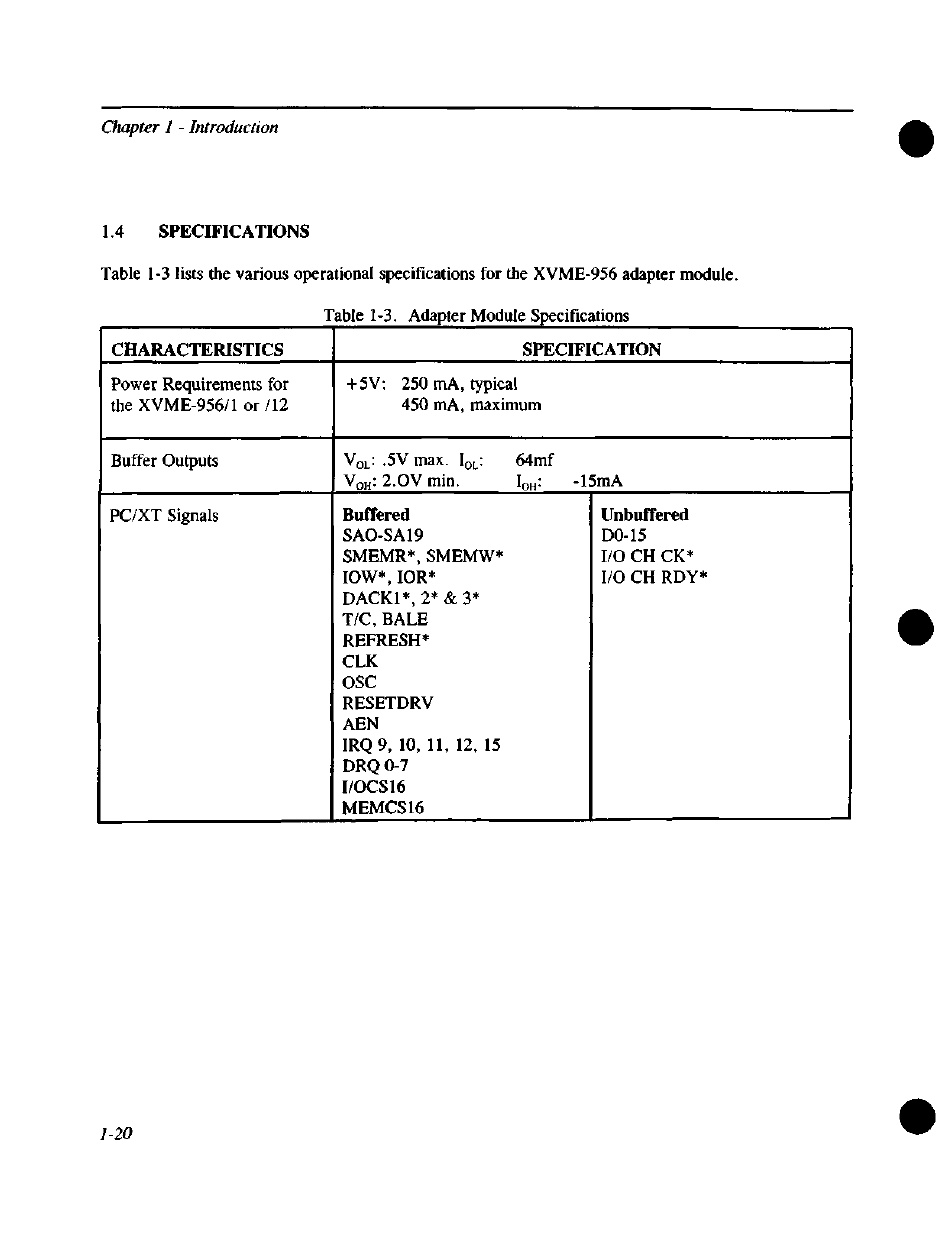

1.4 S P E C I F I C A T I O N S
Table 1-3 lists the various operational specifications for the XVME-956 adapter module.
CHARACTERISTICS
Power Requirements for
the XVME-956/1 or /12
Buffer Outputs
PC/XT Signals
1-20
Table 1-3. Adapter Module Specifications
+5V: 2 5 0 mA, typical
450 mA, maximum
VOL: .5V max. Ion: 6 4 m f
Vote: 2.0V min. I o u :
Buffered
SAO-SA19
SMEMR*, SMEMW*
IOW*, IOR*
DACK1*, 2* & 3*
T/C, BALE
REFRESH*
CLK
OSC
RESETDRV
AEN
IRQ 9, 10, 11, 12, 15
DRQ 0-7
I/OCS16
MEMCS16
SPECIFICATION
- 1 5 m A
Unbuffered
DO-15
I/O CH CK*
I/O CH RDY*
•
•
