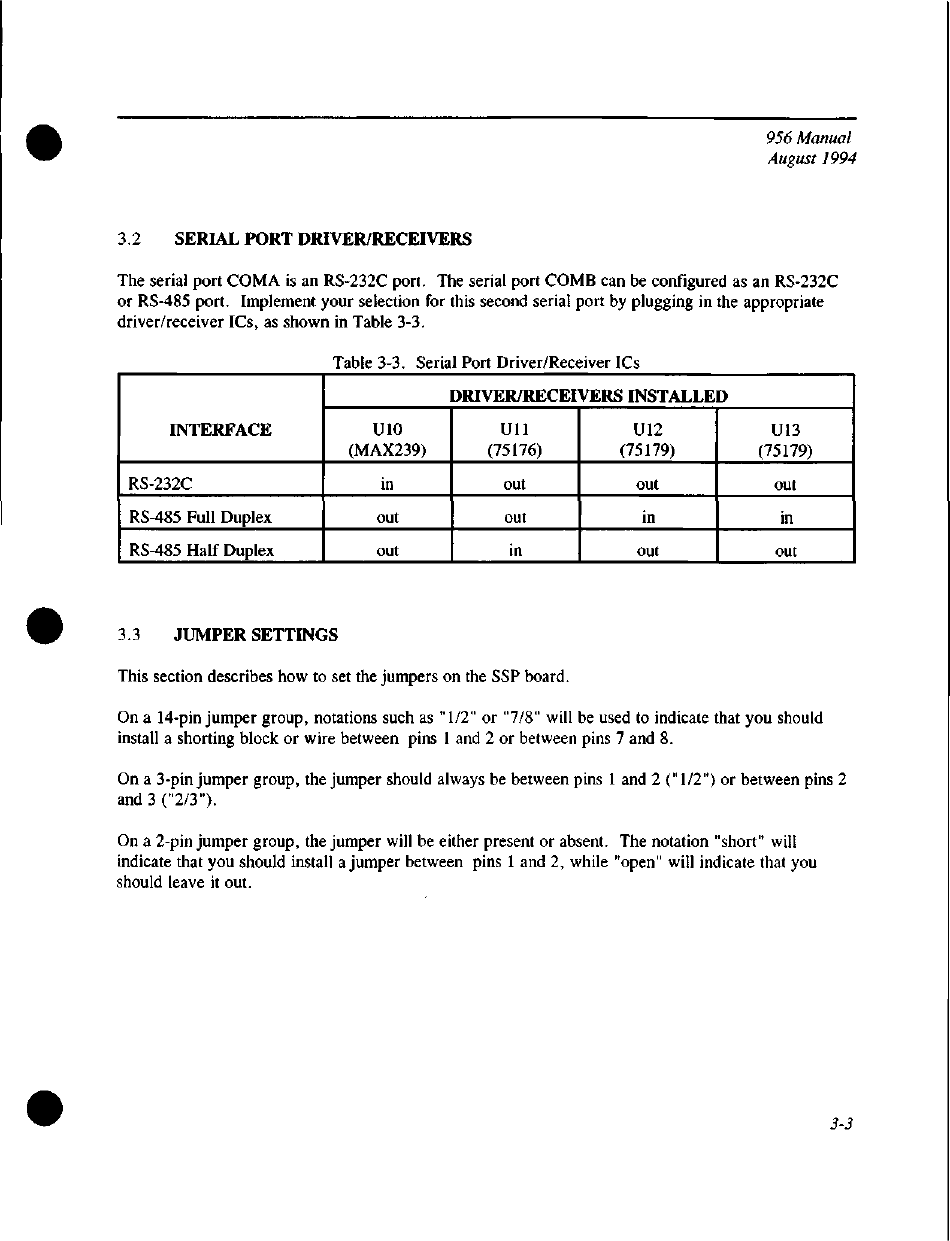

3.2 S E R I A L PORT DRIVER/RECEIVERS
The serial port COMA is an RS-232C port. The serial port COMB can be configured as an RS-232C
or RS-485 port. Implement your selection for this second serial port by plugging in the appropriate
driver/receiver ICs, as shown in Table 3-3.
INTERFACE
RS-232C
RS-485 Full Duplex
RS-485 Half Duplex
• 3 . 3 J U M P E R SETTINGS
This section describes how to set the jumpers on the SSP board.
On a 14-pin jumper group, notations such as "1/2" or "7/8" will be used to indicate that you should
install a shorting block or wire between pins 1 and 2 or between pins 7 and 8.
On a 3-pin jumper group, the jumper should always be between pins 1 and 2 ("1/2") or between pins 2
and 3 ("2/3").
On a 2-pin jumper group, the jumper will be either present or absent. The notation "short" will
indicate that you should install a jumper between pins 1 and 2, while "open" will indicate that you
should leave it out.
•
Table 3-3. Serial Port Driver/Receiver ICs
DRIVER/RECEIVERS INSTALLED
U l l
U 10
(MAX239) (75176)
in out
out out
out in
956 Manual
August 1994
U12 U13
(75179) (75179)
out out
in
in
out out
3-3
