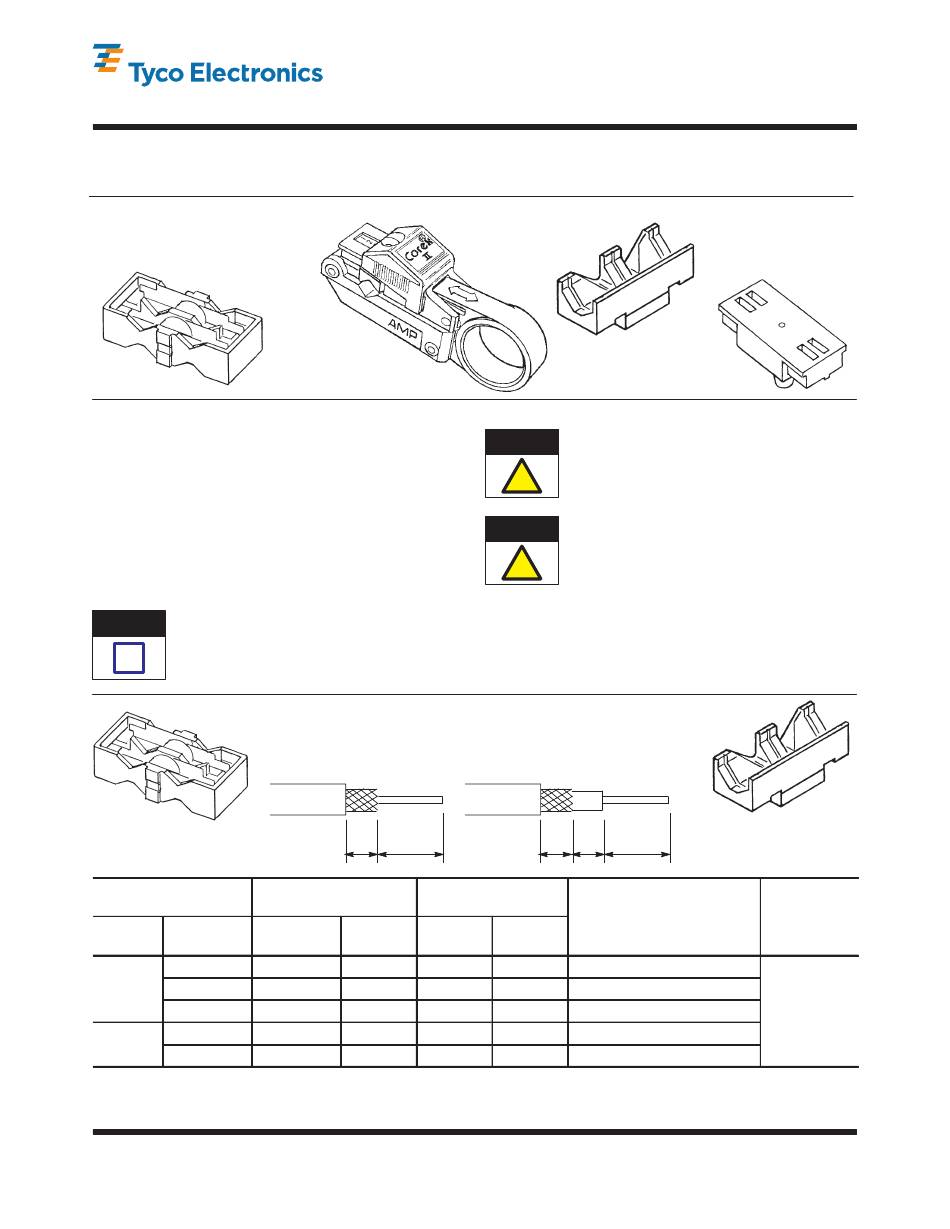

Tyco Electronics 603995 Series Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Coaxial Cable
Stripping Tool
Cassette

1. INTRODUCTION

Coaxial Cable Stripper Kits 603995–1 through –6 are
capable of cutting and stripping five different
sequential settings on three different areas of various
coaxial cable sizes; see Figure 2. This sheet covers
the cutting and stripping of the cable, the installation
of new cutting blades, cassettes, adjustment gauge,
V–blocks used for the various cable sizes, and
adjustments and troubleshooting. See Figure 1.
NOTE
Dimensions on this document are in metric units
[with U.S. customary units in brackets]. Figures
i and illustrations are for reference only and are
not drawn to scale.
Cassette
COAXIAL CABLE
STRIPPER KIT
PART
STYLE
NUMBER NUMBER
603995-1 603996-1
2-Step 603995-2 603996-2
603995-3 603996-3
603995-5 603996-4
3 Step 3-Step
603995-6 603996-5
z
For "A" dimension, refer to the instruction sheet for your specific product.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Coaxial Cable Stripper
Kits 603995-[ ]
Figure 1
2-Blade Cassette
Makes 2-Step Strip
z
B A
BRAID STRIP
CASSETTE
DIMENSION
PART
COLOR B"
Red 6 [.24]
Blue 6.8 [.27]
Yellow 12 [.48]
Black 5.5 [.22]
White 2.5 [.10]
Figure 2
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
V-Block
CAUTION
Do NOT use stripping tool on coaxial cables with
drain wires.
!
CAUTION
A 3-step tool is not recommended for most styles
of RG-62 cable, nor for many cable styles with
cellular polyethylene or other soft dielectrics. Use
!
2-step tool instead.
Read these instructions thoroughly before using the
tool.
Reasons for revisions to this document are provided
in Section 9, REVISION SUMMARY.
3-Blade Cassette
Makes 3-Step Strip
z
C B A
PRODUCT PRODUCT
C"
--- Single Crimp BNC
--- Commercial BNC
--- UHF
5.5 [.22] Dual Crimp BNC
6.8 [.27] Dual Crimp Commercial BNC
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-2766
20 OCT 08 Rev D
Gauge
V-Block (Four V-Blocks
Included in Each Kit. See
Figure 11 for size and color)
CABLE
DIAMETER DIAMETER
RANGE
2.54-7.62 2 54 7 62
[ 100- 300] [.100-.300]
1
of 6
www.tycoelectronics.com
LOC B
