Crimp Head
Mounting Holes
Typical DAHT
Crimp Head (Ref)
1. INTRODUCTION
Crimping Heads 1–45216–0 and 1–45219–2 are
designed to crimp closed end splices listed in Figure 2
onto solid or stranded copper wire size 22–10 AWG.
The crimping heads are used with Double Action
Battery Powered Hand Tool Kits 1213804–[ ].
The crimping heads can also be used with the
NOTE
626 Double Action Pneumatic Tool Adapter
1213563-1.
This instruction sheet provides recommended
procedures for wire preparation, crimping head
installation, crimping, and maintenance and
inspection. For information concerning tool setup and
E
2005 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
AMP and Tyco are trademarks.
Other products, logos, and company names used are the property of their respective owners.
Downloaded from
Elcodis.com
electronic components distributor

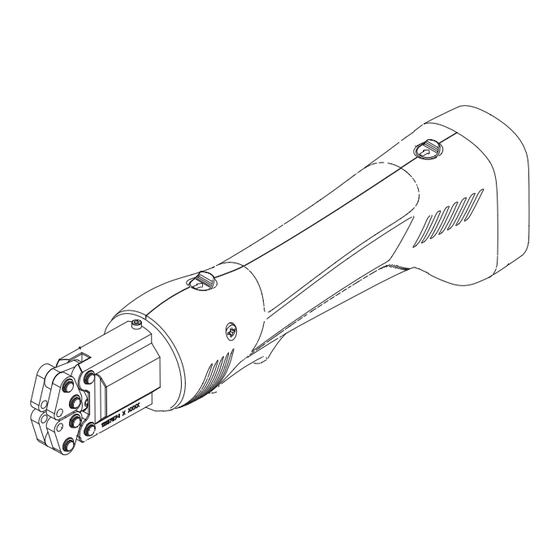

Closed End Splice Crimping Heads
Used with Double Action Battery
Powered Hand Tool Kits 1213804-[ ]
Retract Button
DAHT Adapter
Assembly
Quick-Release
Pins
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
*Trademark
Battery
Battery Powered
Lock
Crimp Tool

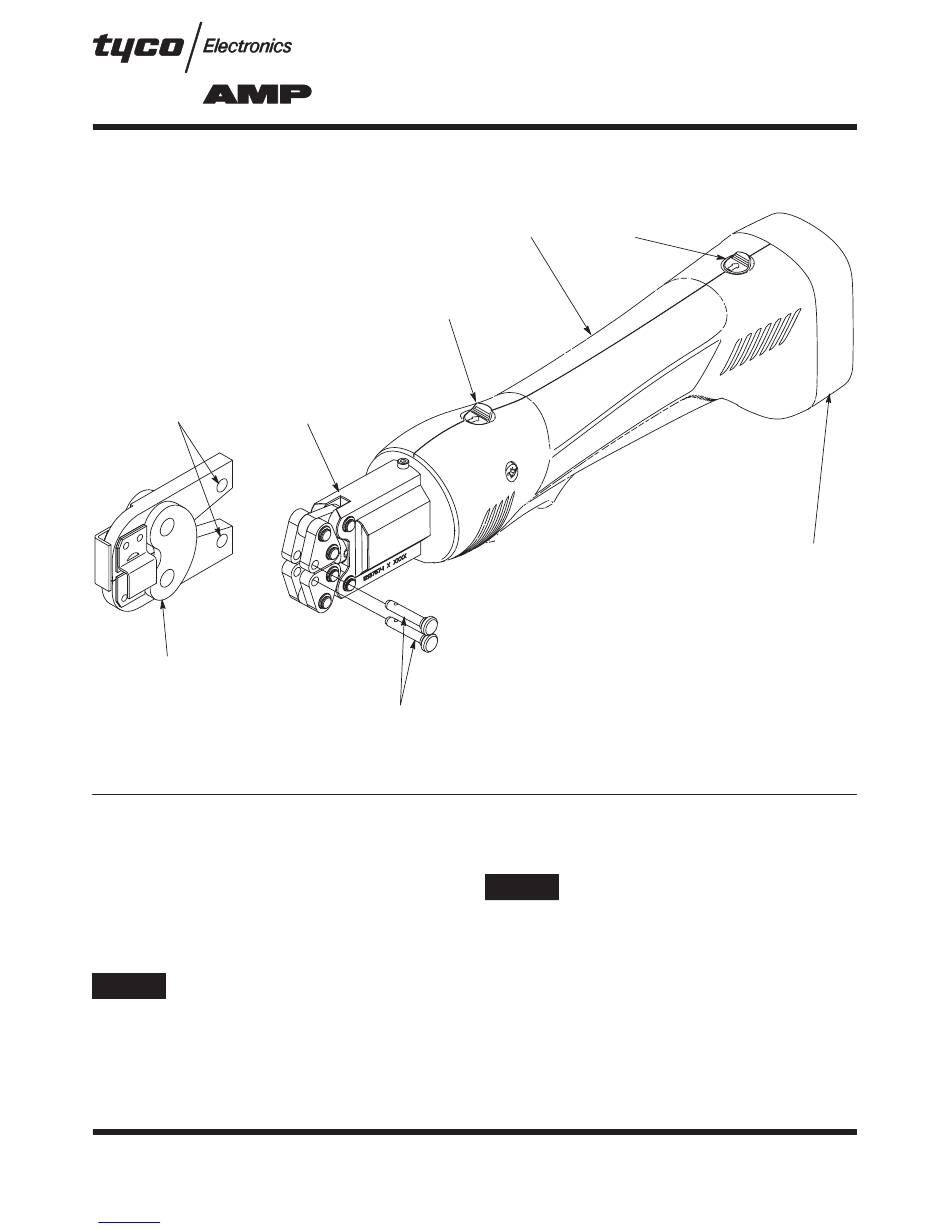

Figure 1
operation, refer to Customer Manual 409–10056
packaged with the battery tool kit.
Dimensions are in metric units with [inches in
NOTE
brackets]. Figures and illustrations are for
reference only and are not drawn to scale.
Reasons for reissue are provided in Section 7,
REVISION SUMMARY.
2. DESCRIPTION
The crimping head consists of integral jaws which
close in an arc–like motion. After an operator locates
the terminal or splice between the crimping jaws and
inserts the stripped wire, the tool is activated to crimp
the terminal or splice to the wire.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-10032
26 JUL 05
Rev A
Battery
Cartridge
1725839-1
1
of 4
www.tycoelectronics.com
LOC B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tyco Electronics 1-45216-0
Summary of Contents for Tyco Electronics 1-45216-0
- Page 1 For information concerning tool setup and the terminal or splice to the wire. TOOLING ASSISTANCE CENTER 1-800-722-1111 This controlled document is subject to change. 2005 Tyco Electronics Corporation, Harrisburg, PA of 4 PRODUCT INFORMATION 1-800-522-6752 For latest revision and Regional Customer Service, All International Rights Reserved www.tycoelectronics.com...
- Page 2 Wipe this preservative Never place anything within the crimping jaws from the head, particularly from the crimping except Tyco Electronics terminals or splices. surfaces. 1. Strip wires to dimensions shown in Figure 2. DO NOT nick wire strand or use wires with nicked or missing conductor strands.
- Page 3 4. The presence of abnormal amounts of dust and dirt. Lubricate all pins, pivot points, and bearing surfaces with a high quality grease. Tyco Electronics 5. Your own established standards. recommends the use of Molykote grease, which is a commercially available lubricant. Lubricate according...
- Page 4 SAE 20 motor oil. If the crimping chamber does For further repair and replacement information, call the Tyco Electronics Tooling Assistance Center at not conform to the plug gage conditions, contact your local Tyco Electronics Field Representative or refer to the number at the bottom of page 1.
